LWIT-IOT1051
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 2 COM
- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Support web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C
- No RED Certification
LWIT-IOT1251
2LAN 4COM Modbus/BACnet/101/104/DNP3/PLC/Azure/AWS IoT Gateway
- TI Cortex A8, 800MHz
- DDR3L 256MB RAM
- 1 x Micro-SD Slot
- 4 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- RED Compliance
- Operation Temperature -40~70°C
LWIT-IOT1152
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 6 COM
- TI Cortex A8 800MHz CPU
- DDR3L512MB RAM
- 1GB Micro-SD card for system storage
- 1 x Micro-SD Slot
- 6 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- No RED Certification
- Operation Temperature -40~70°C

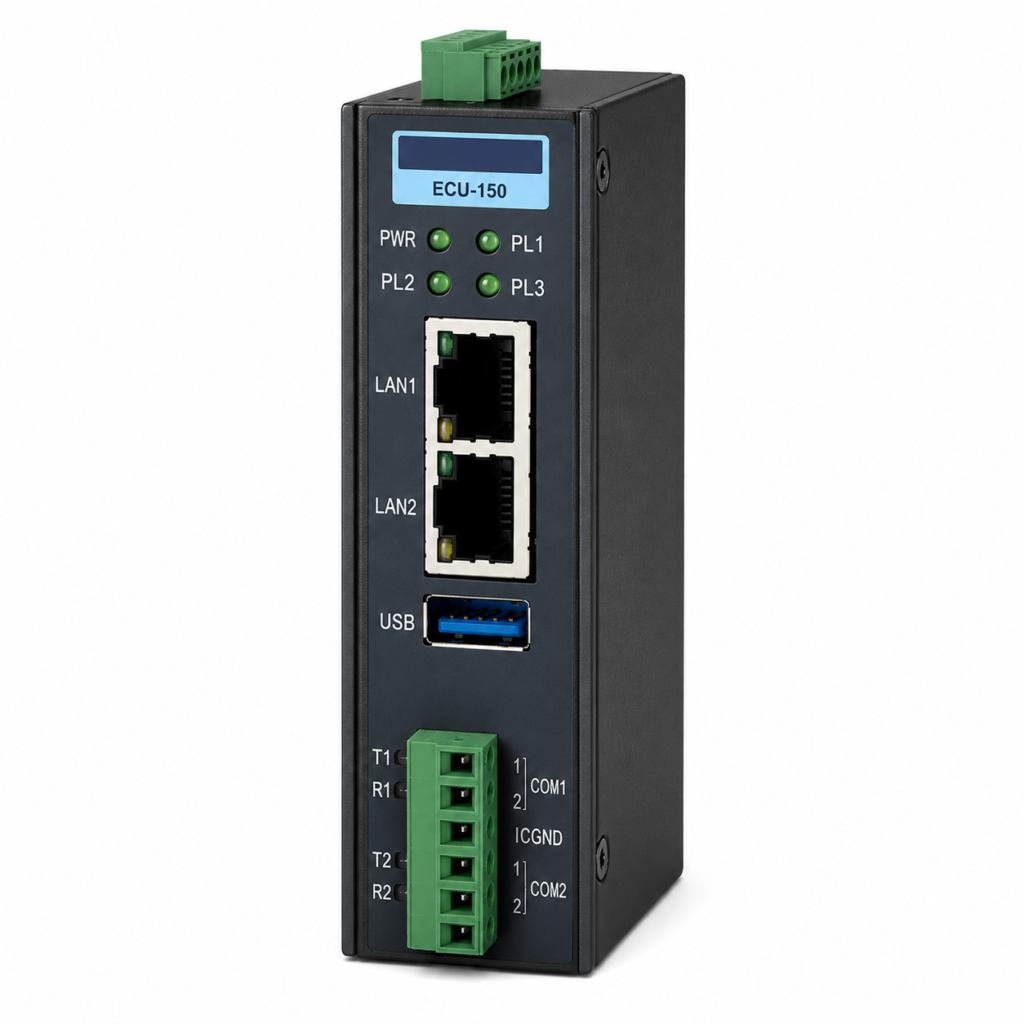

LWIT-IOT150
Compact High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53, 2 LAN, 2 COM & 1 USB
- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 2GB RAM, 16GB eMMC for system storage
- 2 x RS-232/485 isolated serial ports
- 2 x 10/100/1000 Ethernet ports
- 1 x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol （ECU-150-12A1&ECU-150-12A1U need container EdgeLink）
- Support Data logger on SD card
LWIT-IOT1252
Industrial Communication Gateway with TI Cortex A9, 2 LAN, 2 COM & 2 CAN
- TI Cortex A9 600MHz CPU
- DDR3L 2GB RAM
- 16GB eMMC for system storage
- 1 x Micro-SD Slot
- 2 x CAN port
- 2 x RS-232/485 isolated serial ports
- 2 x 1000 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
LWIT-IOT1251D
Industrial Communication Gateway with TI Cortex A8, 2 LAN, 2 COM, 4 DI & 4 DO
- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Onboard IO – 4DI / 4DO
- Support web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C
LWIT-IOT1251V2
Industrial Communication Gateway with TI Cortex A9, 2 x LAN & 4 COM
- Cortex A9 600MHz processor with 2G RAM
- 16GB eMMC system storage and 1 x Micro-SD Slot
- 4 x RS-232/485 isolated serial ports
- 2 x 10/100 Ethernet ports and 1x mPCIe for wireless communication expansion
- Support web service for remotely on-line monitoring
- Supports SD cards and OTA firmware updates
- EdgeLink IoT software for data acquisition and cloud communication
- Wide Operating temperature: -40 ~ 70°C
LWIT-IOT1170
High-Performance All-in-One Gateway for Battery Energy Storage Systems
- Quad-core Cortex-A55 processor, 1.8GHz
- Connectivity: 4 GbE, 8 RS-232/485, 2 CAN, 1 mPCle and 1 M.2
- I/O: 20 DI, 6 DO, 8 Relay, 2 AI
- Battery-powered RTC, Watchdog, and optional TPM support
- Wide operating temperature range: -40~70°C
- Optional 5 sec power backup with Supercapacitor
- Supports IEC 61850, IEC 104, DNP3, Modbus, MQTT, and OPC UA
- Preloaded with Yocto Linux and EdgeLink or Ubuntu Linux
LWIT-IOT1370
High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53
- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 4GB RAM, 32GB eMMC for system storage
- 1 x RS-232/485 isolated serial ports, 1 x CAN
- 3 x 10/100/1000 Ethernet ports
- 24 DI and 6 DO (Relay)
- Operating temperature -40~80°C
LWIT-IOT1260
Industrial Communication Gateway with Cortex Quad Core Cortex A35, 2 LAN, 3 COM & 1 CAN
- Cortex-A35 Quad Core, 1GHz CPU
- Supports web service for remote on-line monitoring
- Supports SD card & on-line firmware update
- Supports Modbus, IEC-60870-101/104 protocol
- Supports data logger on SD card
- Operating temperature -40~70°C
LWIT-IOT1270
Expandable Industrial IoT Gateway with TI AM6734 Quad Cortex A53
- TI AM6734 Quad-core Cortex A53 CPU up to 1.4GHz
- LPDDR4 2/4GB up to 8GB, eMMC 32GB for system storage
- 2x isolated serial ports, configurable for RS232/485
- 2x 10/100/1000 Ethernet ports
- Add-on modules available for CAN FD/serial/digital I/O expansion
- Slim, robust, and fanless
- Supports SD cards and OTA firmware updates

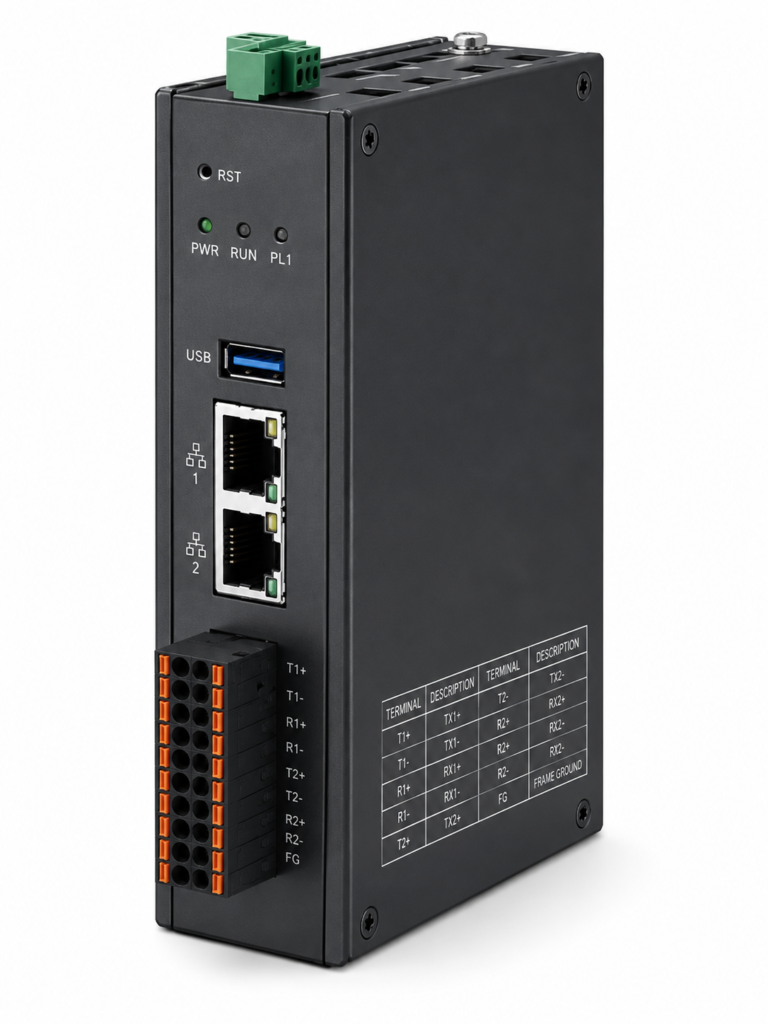

LWIT-IOT150V2
ECU-150 V2 includes two RS-232/485 isolated serial ports, two 10/100/1000 Ethernet ports, and a USB 3.0 port, ensuring seamless connectivity.
- NXP i.MX8M Plus Quad-core Cortex A53 CPU up to 1.6GHz
- LPDDR4 2/4GB up to 8GB, eMMC 16/32GB up to 128GB for system storage
- 2x isolated serial ports, configurable for RS232/485
- 2x 10/100/1000 Ethernet ports
- 2x M.2 expansion available
- Add-on modules available for CAN FD expansion
- Slim, robust, and fanless
- Supports SD cards and OTA firmware updates
