PCIE-1812
250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card
- 8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
- 2 analog outputs, up to 3 MS/s, 16-bit resolution
- Full auto-calibration
- 2 analog triggers and 2 digital triggers for AI/O
- 32 programmable DI/Os with interrupt functions
- Four 32-bit programmable counters/ timers/ encoders
- Board ID switch
- Support for Microsoft Windows 10/11
PCIE-1810
500 kS/s, 12-bit, 16-ch Multifunction PCIE Card
- 16 analog inputs, up to 800 KS/s, 12-bit resolution
- 2 analog outputs, up to 500 KS/s, 12-bit resolution
- Support for digital trigger and analog trigger
- 24 programmable digital I/O lines
- Two 32-bit programmable counter/timers
- Onboard FIFO memory ( 4 K samples)
PCIE-1816
1 MS/s, 16-bit, 16-ch Multifunction PCIE Card
- 16 analog inputs, up to 1 MS/s, 16-bit resolution
- 2 analog outputs up to 3 MS/s, 16-bit resolution
- Support Analog and Digital Trigger for AI/O
- Support Waveform generation for AO
- 24 programmable digital I/O lines
- Two 32-bit programmable counter/timers
- Onboard FIFO memory (8k samples)
- Support for Microsoft Windows 10/11 and Linux
PCIE-1816H
5 MS/s, 16-bit, 16-ch Multifunction PCIE Card
- 16 analog inputs, up to 5 MS/s, 16-bit resolution
- 2 analog outputs up to 3 MS/s, 16-bit resolution
- Support Analog and Digital Trigger for AI/O
- Support Waveform generation for AO
- 24 programmable digital I/O lines
- Two 32-bit programmable counter/timers
- Onboard FIFO memory (8k samples)
- Support for Microsoft Windows 10/11 and Linux
PCI-1706U
250 kS/s, 16-bit, 8-ch Simultaneous Sampling, Multifunction PCI Card
- 8 differential analog inputs
- 8 A/D converters simultaneously sampling
- 16-bit A/D converter, with up to 250kHz sampling rate for each channel
- Programmable gain
- Multiple A/D triggering modes
- Onboard FIFO memory up to 8K Sample
- Programmable pacer/counter
- BoardID™ switch
- Universal PCI Bus (supports 3.3V or 5V PCI bus signals)
PCI-1710
100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card
- 16-ch single-ended or 8-ch differential or a combination of analog input
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Onboard programmable counter
- Two 12-bit analog output channels
- 16-ch digital input and 16-ch digital output
- Automatic channel/gain scanning
- Onboard FIFO memory (4,096 samples)
- Programmable gain
- BoardID™ switch
PCI-1711
100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card
- 16-ch single-ended analog input
- Cost-effective
- 12-bit A/D converter, with up to 100 kHz sampling rate
- 16 single-ended analog inputs
- 12-bit A/D converter, with up to 100 kHz sampling rate
- Programmable gain
- 16 digital inputs and 16 digital outputs
- 16-ch digital input and 16-ch digital output
- Two 12-bit analog output channels
- Two 12-bit analog output channels
- Onboard FIFO memory (1,024 samples)
- Onboard FIFO memory (1024 samples)
- Automatic channel/gain scanning
- Automatic channel/gain scanning
- Onboard programmable counter
- Programmable gain
- Onboard programmable counter
PCI-1712
1 MS/s, 12-bit, 16-ch Multifunction PCI Card
- 16 single-ended or 8 differential or a combination of analog inputs
- 12-bit A/D converter, with up to 1 MHz sampling rate
- Two 12-bit analog output channels with continuous waveform output function
- 16-ch digital input and 16-ch digital output
- Three 16-bit programmable multifunction counter/timers on 10 MHz
- Programmable gain
- Automatic channel/gain scanning
- Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
- Auto-calibration (AI/AO)
- PCI-Bus for data transfer
- Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
- Flexible triggering and clocking capabilities

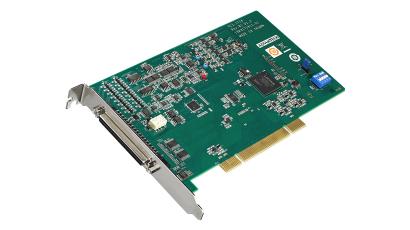

PCI-1716
250kS/s, 16-bit, 16-ch Multi-function PCI Card
- 16 single-ended or 8 differential or a combination of analog inputs
- 16-bit A/D converter, with up to 250 kHz sampling rate
- FIFO memory (8,192 samples)
- 2 analog output channels
- 16-ch digital input and 16-ch digital output
- Auto-calibration
- BoardID™ switch
