HMI Systems

Optimized Linux OS for real-time control
Achieve 16-axis motion control with 2ms EtherCAT cycle time
OPC UA and Modbus TCP/RTU for IT connectivity enabled by CODESYS
EtherCAT, and CANopen for OT connectivity enabled by CODESYS
Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications
CODESYS Visualization (Target & Web), SoftMotion and CNC/Robotics support provided by different packages
Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) and shared memory (C++/C#)
NXP Arm® Cortex®-A53 i.MX 8M Mini quad-core processor

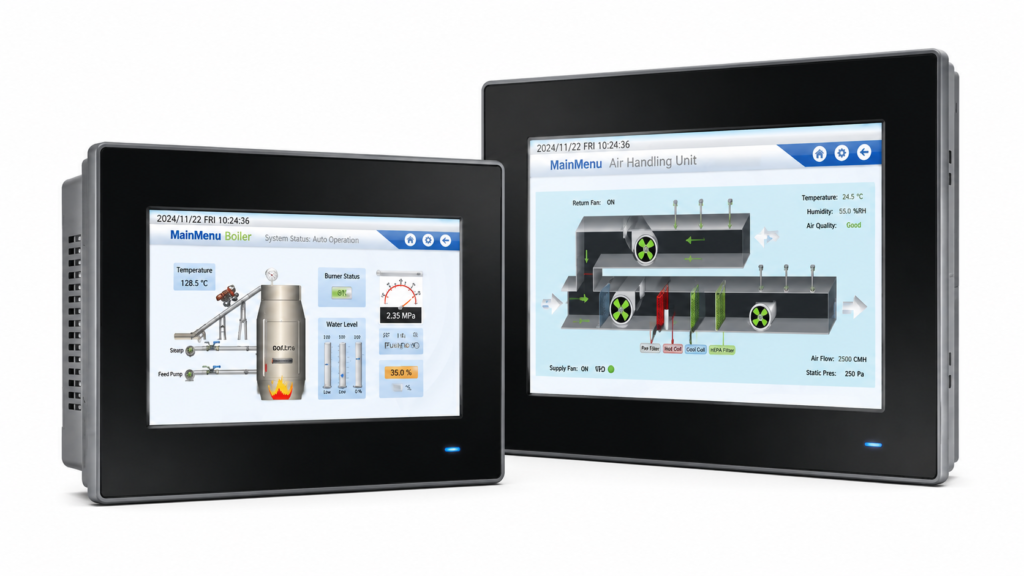

7″ and 10.1″ LCD with multi-touch P-CAP and true-flat IP66-rated front panel

AMAX-PT700 V2

Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)
Achieve 32-axis motion control with 1ms EtherCAT cycle time under Linux
OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS
Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications
CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package
Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)
Modular Computing Box designed with Intel Atom® x6425E with one DDR4 SODIMM slot (up to 32GB)

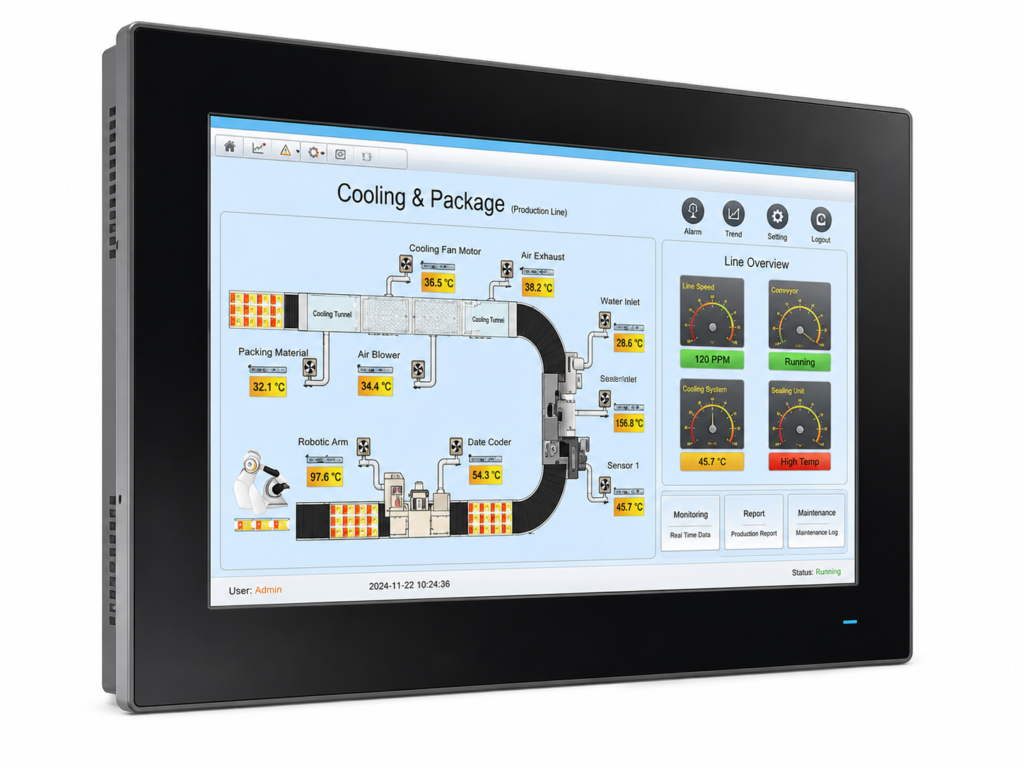

Multiple-sized front panel modules offered with P-Cap multi-touch sensor (12.1″ & 19″ with robust 5-wire resistive touch)

Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)
Achieve 128-axis motion control with 500 μs EtherCAT cycle time under Linux
OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS
Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications
CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package
Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)
Modular Computing Box designed with 13th Gen. Intel® Core™ i5-1335UE deca-core/ i7-1365URE deca-core processor

Industrial-grade 17″ SXGA TFT LCD with 50K lifetime and LED backlight
8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
Dual channel memory slots support up to 64G in total
Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
Diverse system I/O and isolated digital I/O via iDoor technology
Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
Support TPM2.0 hardware security

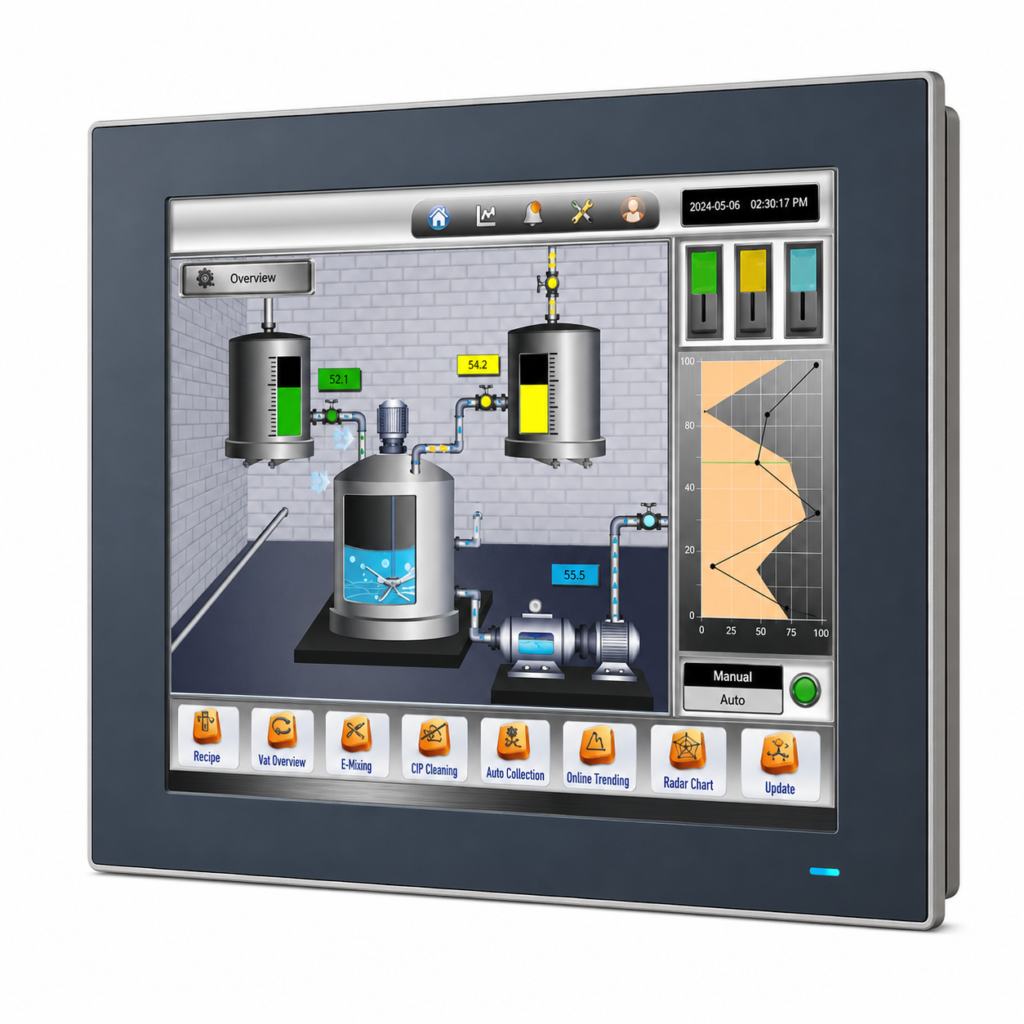

Industrial-grade 12.1″ XGA TFT LCD with a 50,000-hour LED backlight lifetime
8th Gen Intel® Core™ i3-8145UE dual-core, i5-8365UE quad-core, or i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM memory
Dual-channel memory slots supporting up to 64 GB total
Compact, fanless embedded system with an aluminum-alloy front bezel and chassis grounding protection
True-flat touchscreen with 5-wire resistive touch control and an IP66-rated front panel
Supports expansion via one full-size Mini PCIe slot and two M.2 slots (NVMe, 5G)
Diverse system I/O and isolated digital I/O via iDoor technology
Supports Fieldbus protocols, GPS, GPRS, and Wi-Fi via iDoor technology
Supports TPM 2.0 hardware security

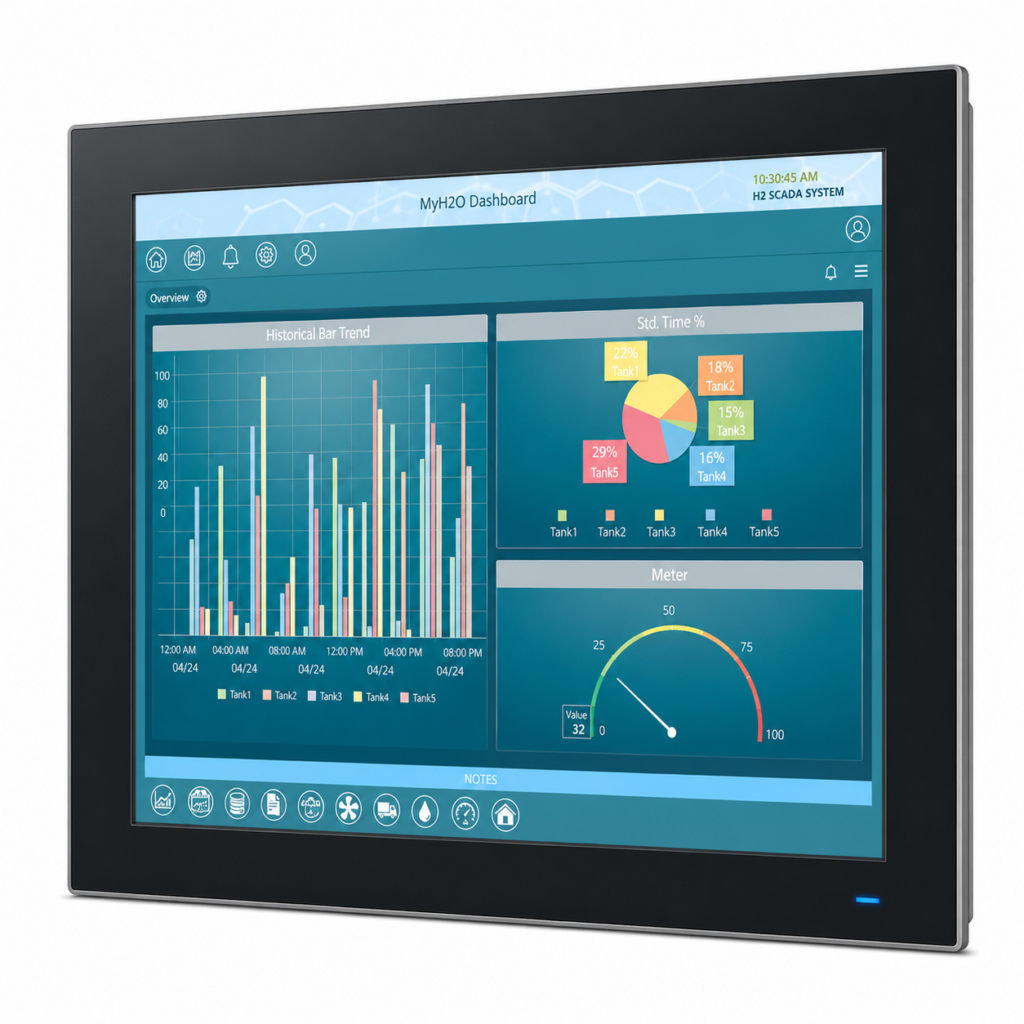

Industrial-grade 15″ XGA TFT LCD with 70K lifetime and LED backlight
8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
Supports expansion via Full-size Mini PCIe and NVMe
Diverse system I/O and isolated digital I/O via iDoor technology
Supports fieldbus protocols via iDoor technology
