Products
Industrial Networking & Gateway
Wireless Communication
LWIT-NET85284XF
IEC 61850-3 L3 Modular Managed Switch
- 3 x 8 Gigabit ports module slots + 4 x 10G SFP+ ports
- Dual power input options for 110/220V AC or 24-48V DC power module
- L3 functions: RIP v1/v2, OSPF, VRRP, PIM and NAT
- Fully layer 2 and TSN-enabled functions
- Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
- Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
- -40 ~ 75˚C wide-range operating temperature
LWIT-NET85284XFL
IEC 61850-3 L2 Modular Managed Switch
- 3 x 8 Gigabit ports module slots + 4 x 10G SFP+ ports
- Dual power input options for 110/220V AC or 24-48V DC power module
- Fully layer 2 and TSN-enabled functions
- Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
- Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
- -40 ~ 75˚C wide-range operating temperature
LWIT-NET8510G2FI
8G + 2G SFP Managed TSN Switch
- CC-Link IE TSN Class B Certified
- 8 x Gigabit ports + 2 x Gigabit SFP ports
- IEEE 1588v2 PTP Precision Time Protocol
- Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
- Fully layer 2 managed switch function
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB
- EN 50121-4 approval for railway track sides
- Dual 12~48 VDC power input and 1 x relay output
LWIT-NET5708EI
8 FE Port Managed Industrial Ethernet Switch
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Compact size and easy installation
- Dual 12 ~ 48 VDC power input and 1 x relay output

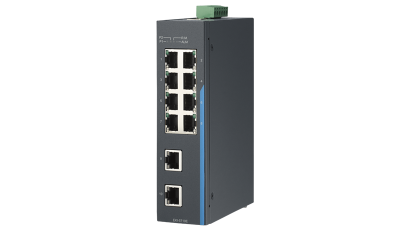

LWIT-NET5710E2FI
8FE + 2FE/GE SFP Port Managed Industrial Ethernet Switch
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Compact size and easy installation
- Dual 12 ~ 48 VDC power input and 1 x relay output
LWIT-NET7712G4FMPI
8GE PoE and 4G SFP Managed Ethernet Switch, IEEE802.3af/at/bt, 53~57VDC, -40~70℃
- Certified to IEC 62443-4-2 SL2
- Support 2 x IEEE 802.3bt class 8 90W PoE ports, 6 x IEEE 802.3at/af PoE ports and 4 x SFP ports
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- IXM function enables fast deployment
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- NEMA TS2 for traffic control
LWIT-NET7412G4XP
8GE+4 10G SFP L2 Managed PoE+ Switch
- 8 Gigabit Ethernet Ports and 4 10G SFP Ports
- 0 to 60°C operating temperature range
- Supports 8 IEEE802.3af/at PoE ports
- 140W PoE Power Budget
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM Function Enables Fast Deployment
- Redundancy: Gigabit X-Ring Pro (Ultra High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP
LWIT-NET7428G4X
24GE+4 10G SFP L2 Managed Switch
- 24 Gigabit Ethernet ports and 4 10G SFP ports
- 0 to 60°C operating temperature range
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM function enables f deployment
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D), MSTP
