Products
Automation Controllers
AMAX-4870
6-port EtherCAT Junction Module
- Realizing flexible wiring by daisy chain and branch connection
- Easy to maintain
- To prevent entire system breakdown
- EtherCAT conformance test tool verified
AMAX-4862
16-ch IDI & 16-ch Relay EtherCAT Remote I/O module
- Suitable for EtherCAT networks
- 16-ch Isolated Digital Input and 16-ch Form A-type Relay Output
- High-voltage isolation on input channel (2,500 VDC)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two rotary switches for up to 256 SubDevice IDs
AMAX-4856
32-ch Isolated Digital Input and 32-ch Isolated Digital Output EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 32-ch digital input and 32-ch digital output with 2,500 VDC isolation
- Wide input voltage range (10 ~ 30 VDC)
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs
AMAX-4834
32-ch Isolated Digital Output EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 32-ch digital output with 2,500 VDC isolation
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs

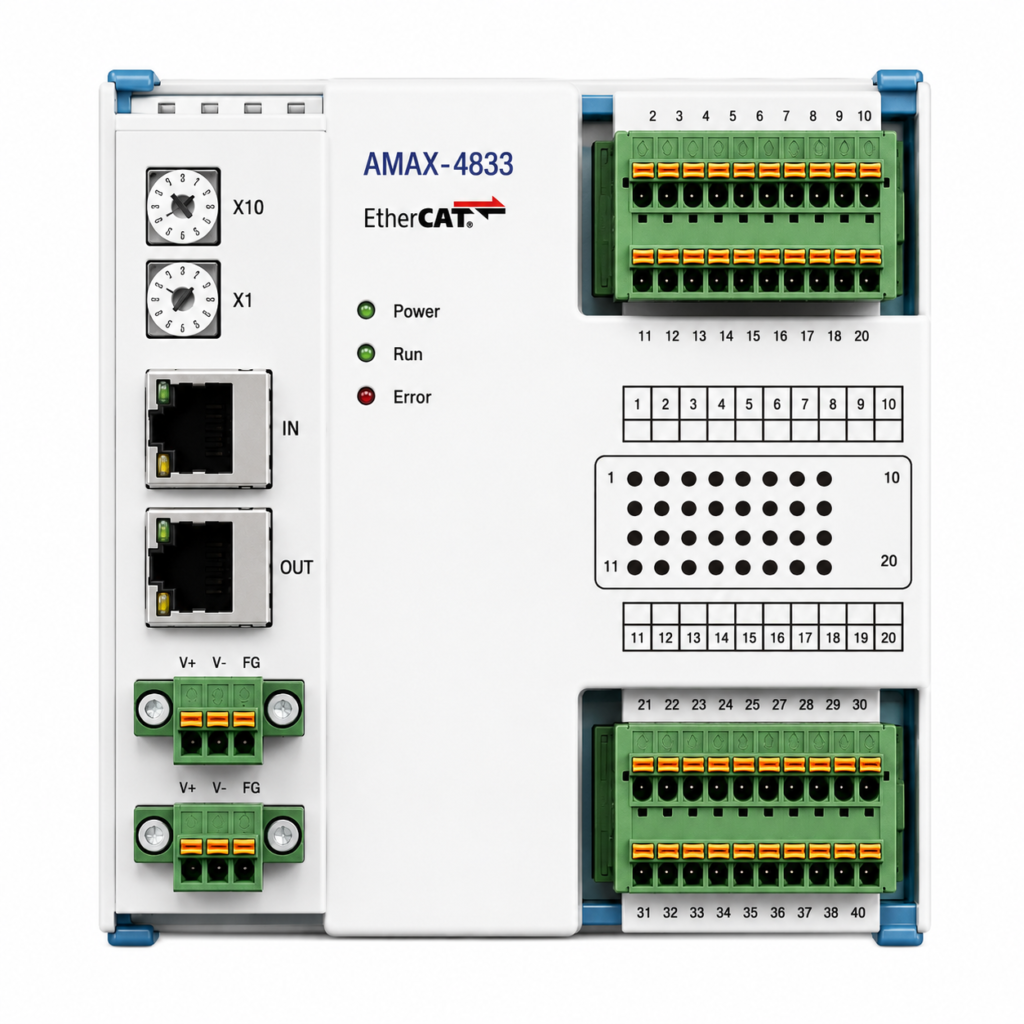

AMAX-4833
32-ch Isolated Digital Input EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 32-ch digital input with 2,500 VDC isolation
- Wide input voltage range (10 ~ 30 VDC)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs
AMAX-4830
16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 16-ch digital input and 16-ch digital output with 2,500 VDC isolation
- Wide input voltage range (10 ~ 30 VDC)
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs

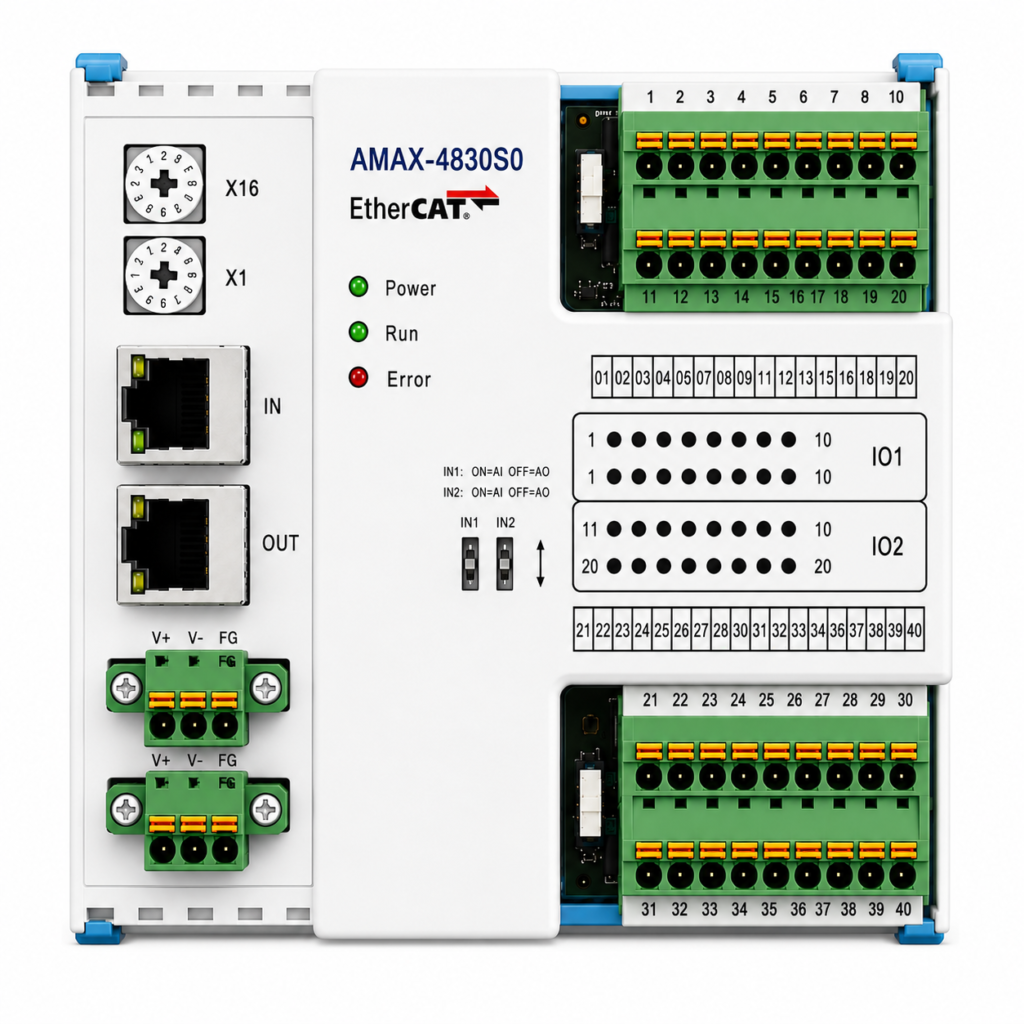

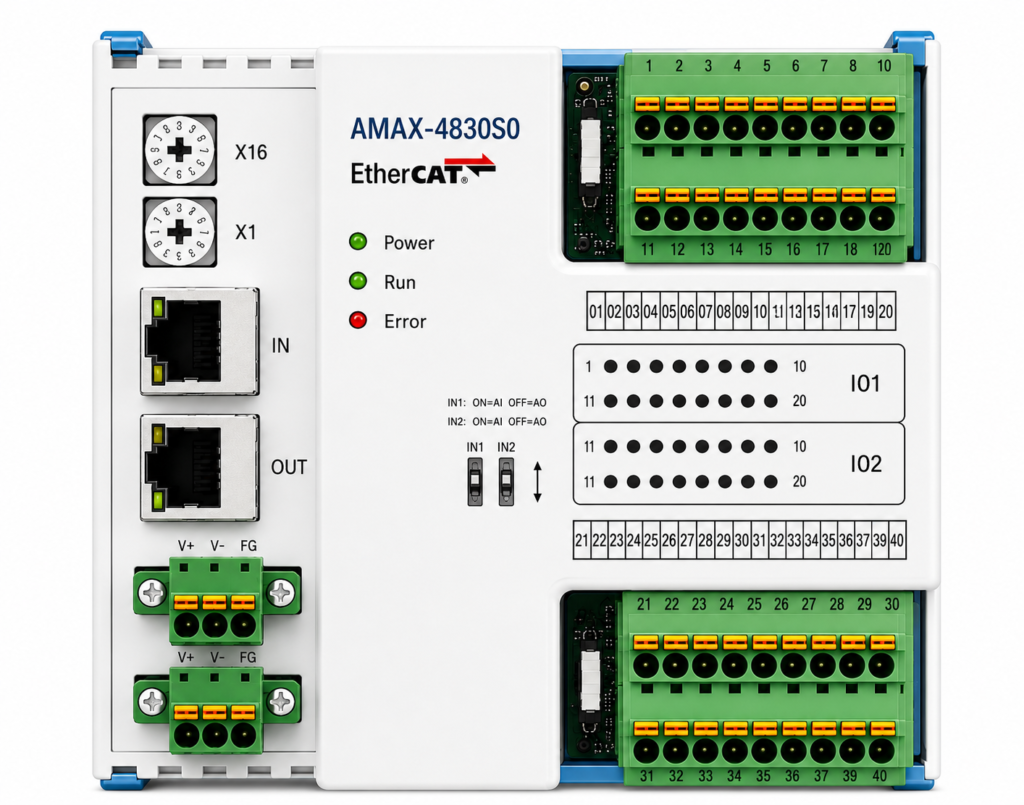

AMAX-4830SO
16-ch Isolated Digital Input and 16-ch Isolated Digital Output EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 16-ch digital input and 16-ch digital output with 2,500 VDC isolation
- Wide input voltage range (10 ~ 30 VDC)
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 SubDevice IDs
AMAX-4817
8-ch, 16-bit Isolated Analog Input EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 8-ch, 16-bit analog input channels with 2,500 VDC isolation
- ±275 V high common-mode voltage range
- Quick removable European type connector
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two rotating switches for up to 256 slave IDs
AMAX-4820
4-ch, 16-bit Isolated Analog Output EtherCAT Remote I/O Module
- Suitable for EtherCAT networks
- 4-ch, 16-bit analog output channels with 2,500 VDC isolation
- Voltage or current output with multiple ranges
- Quick removable European type connector
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two rotating switches for up to 256 slave IDs

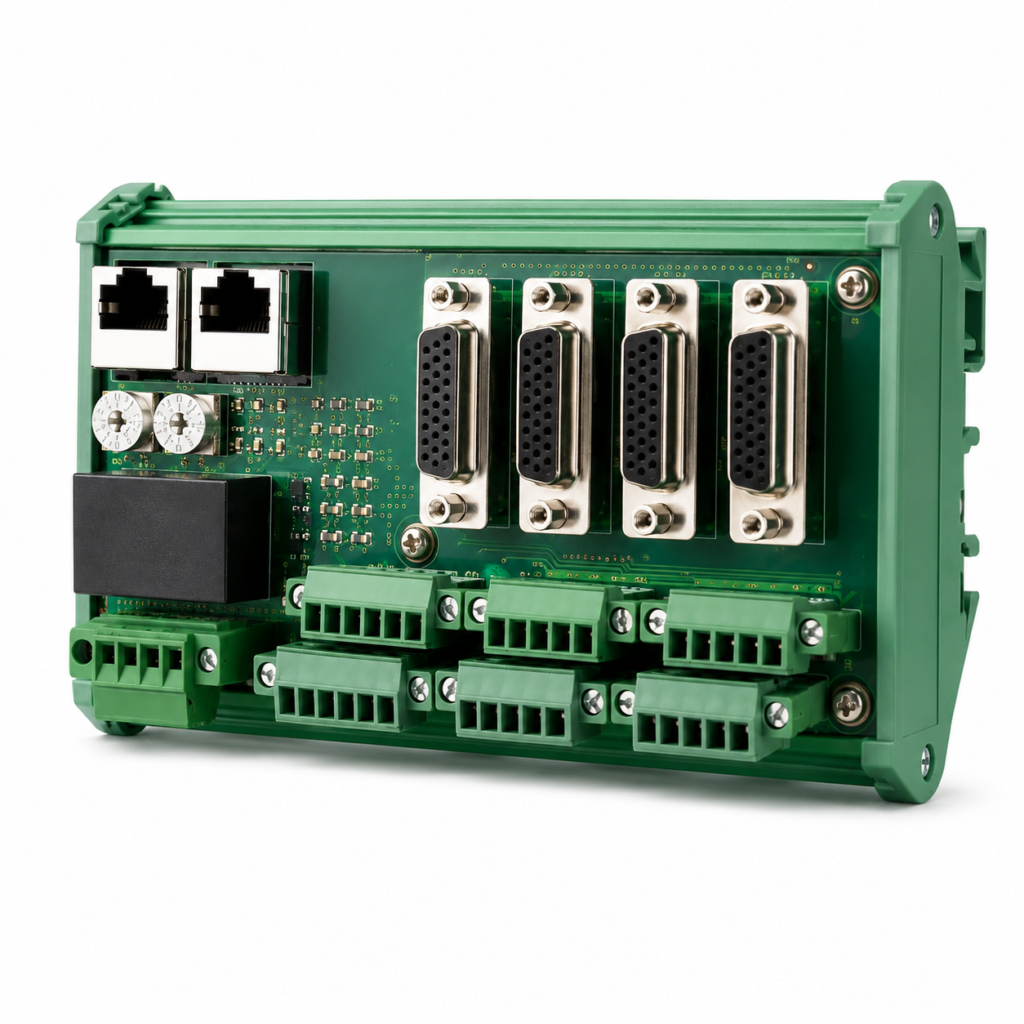

AMAX-3245C
4-axis EtherCAT Motion Module with CiA402 Device Profile
- Max. 5 MHz, 4-axis pulse output
- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- BoardID is switchable
- Easily visible LED indicators on board to do diagnosis
- Direct wire to servo drive to save terminal board space while installation
- Horizontal installation for for servo or stepping motor driver
- EtherCAT CiA402 device profile CSP, HM
- Supports COE/FOE, PDO/SDO
- General purpose I/O: 4DI/4DO
AMAX-3245
4-axis EtherCAT Motion SubDevice
- Max. 5 MHz, 4-axis pulse output
- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- BoardID is switchable
- Easily visible LED indicators on board to do diagnosis
- Direct wire to servo drive to save terminal board space while installation
- Horizontal installation for for servo or stepping motor driver
- Suitable for DIN-rail mounting
- Programmable interrupt
- Memory buffer (10K points) for trajectory planning which is designed in DSP
- 4-axis position compare triggering up to 100 KHz, and memory buffer is up to 100 K points
- Position latch
- Supports gantry mode by semi-closed loop pulse train control
- LTC-dedicated input channels & SVON/CMP/RST/ERC-dedicated Output channels are switchable for general input and output purposes
AMAX-4270
4-channel High Speed Trigger and Latch EtherCAT Module
- 4-channel 32-bit encoder counters
- Encoder input mode : CW/CCW , Pulse/Direction, A/B Phase
- Encoder input signal : A, B, Z
- Encoder input frequency : 5 MHz (Maximum)
- 4-channel trigger DO for position compare
- Trigger output frequency : 10 kHz; latch input frequency : 10kHz
- Trigger output mode : sink, source, TTL
- Supports trigger delay time setting for each channel
- 4-channel latch DI for position latch
