Analog and Digital Remote I/O

ADAM-6015

7RTD IoT Modbus Ethernet Remote I/O

8ch RTD
Protocols: Modbus TCP, RESTful API, ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Wiring burn-out detect function
Isolation protection: 2000VDC
Built-in web server

ADAM-6017

8AI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O

8ch analog input(voltage or current)/2ch digital output
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Cloud access: Data update to Azure
Built-in web server
Watchdog timer to recover the system

ADAM-6022

6AI/2AO/2DI/2DO Ethernet PID Module

2 loop PID control algorithms built in one package
3 analog input/1 analog output/1 digital input/1digital alarm output for 1 PID loop
Support multiple analog I/O ranges: 0 ~ 10 VDC, 0 ~ 20 mA and 4 ~ 20 mA
Support heating/cooling (direct/reverse) action mode
Support loop open/close (PID disable/enable) and analog output manual control modes
Watchdog timer to recover the system
Built-in web server

ADAM-6024

6AI/2AO/2DI/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O

6ch analog input/2ch analog output/2ch digital input/2ch digital output
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Watchdog timer to recover the system
Isolation protection: 2000VDC
Built-in web server

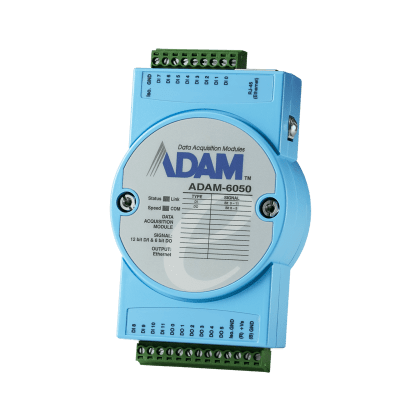

ADAM-6050

12DI/6DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O

12ch digital input(counter)/6ch digital output(pulse output)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Cloud access: Data update to Azure
Built-in web server
Watchdog timer to recover the system

ADAM-6051

12DI/2Counter/2DO IoT Modbus/SNMP/MQTT Ethernet Remote I/O

12ch digital input/2ch counter/2ch digital output(pulse output)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Cloud access: Data update to Azure
Built-in web server
Watchdog timer to recover the system

ADAM-6052

8DI/8DO (source type) IoT Modbus/SNMP/MQTT Ethernet Remote I/O

8ch digital input(counter)/8ch source type digital output(pulse output)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Cloud access: Data update to Azure
Built-in web server
Watchdog timer to recover the system

ADAM-6060

6Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O

I/O:6ch relay/6ch digital input(counter)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Cloud access: Data update to Azure
Built-in web server
Watchdog timer to recover the system

ADAM-6066

6-Pwer Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O

I/O:6ch relay/6ch digital input(counter)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Cloud access: Data update to Azure
Built-in web server
Watchdog timer to recover the system

ADAM-6018+

8-Thermocouple IoT Modbus/SNMP/MQTT Ethernet Remote I/O

8ch thermocouple
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
GCL to perform basic logic control rules
Peer-to-Peer function to map I/O status
Watchdog timer to recover the system
Built-in web server

ADAM-6217

8AI IoT Modbus/SNMP/MQTT 2Ports Ethernet Remote I/O

8ch analog input(voltage or current)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
GCL to perform basic logic control rules
Cloud access: Data update to Azure
Auto-bypass function to ensure daisy-chain data transmission
Peer-to-Peer function to map I/O status
Built-in web server
Watchdog timer to recover the system

ADAM-6224

4AO/4DI IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

4ch analog output/4ch digital input
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
GCL to perform basic logic control rules
Cloud access: Data update to Azure
Auto-bypass function to ensure daisy-chain data transmission
Peer-to-Peer function to map I/O status
Built-in web server
Watchdog timer to recover the system

ADAM-6250

8DI/7DO IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

8ch digital input(counter)/7ch digital output(pulse output)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
GCL to perform basic logic control rules
Cloud access: Data update to Azure
Auto-bypass function to ensure daisy-chain data transmission
Peer-to-Peer function to map I/O status
Built-in web server
Watchdog timer to recover the system

ADAM-6251

16DI IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

16ch digital input(counter)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
GCL to perform basic logic control rules
Cloud access: Data update to Azure
Auto-bypass function to ensure daisy-chain data transmission
Peer-to-Peer function to map I/O status
Built-in web server
Watchdog timer to recover the system

ADAM-6256

16DO IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

16ch digital output(pulse output)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
GCL to perform basic logic control rules
Cloud access: Data update to Azure
Auto-bypass function to ensure daisy-chain data transmission
Peer-to-Peer function to map I/O status
Built-in web server
Watchdog timer to recover the system

ADAM-6260

6-Relay IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

6ch relay
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
GCL to perform basic logic control rules
Cloud access: Data update to Azure
Auto-bypass function to ensure daisy-chain data transmission
Peer-to-Peer function to map I/O status
Built-in web server
Watchdog timer to recover the system

ADAM-6266

4Relay/4DI IoT Modbus/SNMP/MQTT 2-Ports Ethernet Remote I/O

4ch relay/4ch digital input(counter)
Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful,ASCII
GCL to perform basic logic control rules
Cloud access: Data update to Azure
Auto-bypass function to ensure daisy-chain data transmission
Peer-to-Peer function to map I/O status
Built-in web server
Watchdog timer to recover the system

ADAM-5050

16-ch Universal Digital I/O Module

Digital input: Support Dry/Wet Contact
Digital output: Open Collector to 30 V, 450 mW max. load
I/O Type: bit-wise selectable by DIP switch
Power consumption: 0.35 W (typical); 1.2 W (max)
Channels: 16

ADAM-5051

16-ch Digital Input Modules

Input voltage: 30 Vmax
Circuit type: Pull-Up current: 0.5 mA (Source Type)
Power consumption: 0.53 W
Channels: 16

ADAM-5051D

16-ch Digital Input Modules

Input voltage: 30 Vmax
Circuit type: Pull-Up current: 0.5 mA (Source Type)
LED indicator: Yes
Power consumption: 0.84 W(max.)
Channels: 16

ADAM-5051S

16-ch Isolated Digital Input Modules

50 Vmax Input Voltage
2500 Vdc Optical Isolation
70 Vdc Over Voltage Protection
16-channel

ADAM-5052

8-ch Isolated Digital Input Module

Digital input level: Logic level 0: +1 V max.
Isolation voltage: 5000 VRMS
Power consumption: 0.27 W (max)
Channels: 8

ADAM-5055S

16-ch Isolated Digital I/O Module with LED

I/O Type: 8 DO & 8 DI
Optical Isolation: 2500 Vdc
Power Consumption: 0.68 W (Typical)
16-channel

ADAM-5056D

16-ch Digital Output Modules

Operating voltage: 30 Vmax
Digital output: Open collector to 30 V, 100 mA max. load
Output status hold function
Power consumption: 0.5 W (typical); 0.84 W (max.)
Power dissipation:300 mW for each channel
LED indicator: On: Output logic level “1”
Channels: 16

ADAM-5056S

16-ch Digital Output Modules

Over Voltage Protection: 70 Vdc
Optical Isolation: 2500 Vdc
Power Consumption: 0.6 W (typical)
Power Dissipation: 300 mW
16-channel

ADAM-5056SO

16-ch Source-type Isolated Digital Output Module with LED

Optical Isolation: 2500 Vdc
Over Voltage Protection: 70 Vdc
Power Consumption: 0.6 W (max.)
16-channel

ADAM-5069

8-ch Power Relay Output Module with LED

High Power Relay Output : 250Vac@5A, 30Vdc@5A
8-channel Relay Output
8 form A channels
8 LED indicators
Jumper setting for output status when reset

ADAM-4015

6RTD Modbus RS-485 Remote I/O

6ch RTD
Protocols:Modbus RTU,ASCII
Watch dog to recover the system
3000VDC isolation protection
Wiring burned-out detection function

ADAM-4017

8AI RS-485 Remote I/O

8ch analog input(voltage or current)
Protocols:ASCII
Watchdog timer to recover the system

ADAM-4017+

8AI Modbus RS-485 Remote I/O

8ch analog input(current or voltage)
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
3000VDC isolation protection

ADAM-4018+

8Thermocouple Modbus RS-485 Remote I/O

8ch thermocouple(can be set to current)
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
3000VDC isolation protection
Wiring burned-out detection function

ADAM-4050

8DI/8DO RS-485 Remote I/O

8ch digital input/8ch digital output
Protocols: Modbus RTU,ASCII
Watchdog timer to recover the system

ADAM-4051

16DI Modbus RS-485 Remote I/O

16ch digital input
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
2500VDC isolation protection

ADAM-4053

16DI RS-485 Remote I/O

16ch digital input
Protocols: Modbus RTU,ASCII
Watchdog timer to recover the system

ADAM-4055

8DI/8DO Modbus RS-485 Remote I/O

8ch digital input/8ch digital output
Protocols:Modbus RTU,ASCII
Watchdog timer to recover the system
2500VDC isolation protection
