Automation Controllers

Products

AMAX-7570 V2

Intel Atom® IPC Controller

Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)
Achieve 32-axis motion control with 500 μs EtherCAT cycle time under Linux
OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS
Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications
CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package
Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)
Intel Atom® x6425RE (1.9GHz) processor with 8GB DDR4 memory
Port isolation for 8 x DI, 8 x DO, 2 x COM

AMAX-7580 V2

Intel® Core™ IPC Controller

Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)
Achieve 128-axis motion control with 500 μs EtherCAT cycle time under Linux
OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS
Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications
CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package
Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)
13th Generation Intel® Core™ i7/i5 Processor with 8GB DDR5 memory
Port isolation for 8 x DI, 8 x DO, 4 x COM

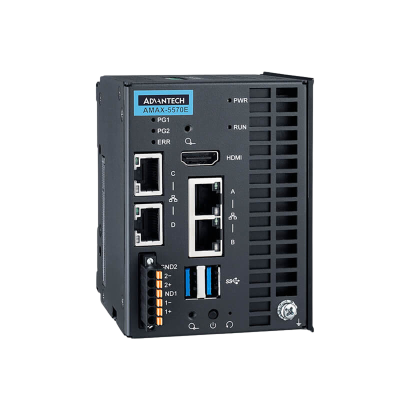

AMAX-5570E V2

Intel Atom® Embedded Controller

Optimized BIOS & Embedded OS for 1ms real-time control (Windows & Linux)
Achieves 32-axis motion control with 500 μs EtherCAT cycle time under Linux
OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
EtherCAT, PROFINET, Ethernet I/P, and CANopen are OT connectivity feature enabled by CODESYS
Intel Atom® quad-core x6414RE processor
System I/O with 4 x GbE, 2 x USB, 2 x Isolated COM, 1 x HDMI, 1 x 5 pin terminal (dual power input)
AMAX-5000 EtherCAT Slice I/O expansion and AMAX-5400 PCIe modules, optional for left side (max.2)
iDAQ-964 modules, optional for left side
EMC compliance for energy management and Battery Energy Storage System (IEC-61000-4 Industrial requirement)

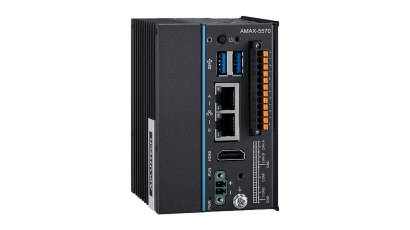

AMAX-5570 V2

Intel Atom® Embedded Controller

Optimized BIOS & Embedded OS for 1ms real-time control (Windows & Linux)
Achieves 32-axis motion control with 500 μs EtherCAT cycle time under Linux
OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
EtherCAT, PROFINET, Ethernet I/P, and CANopen are OT connectivity feature enabled by CODESYS
Intel Atom® quad-core x6414RE processor
System I/O with 2 x GbE, 2 x USB, 2 x Isolated CAN 2.0, 2 x Isolated COM, 1 x HDMI
1 x M.2 B-Key (USB3.0 / SATA) expansion
AMAX-5000 EtherCAT Slice I/O expansion

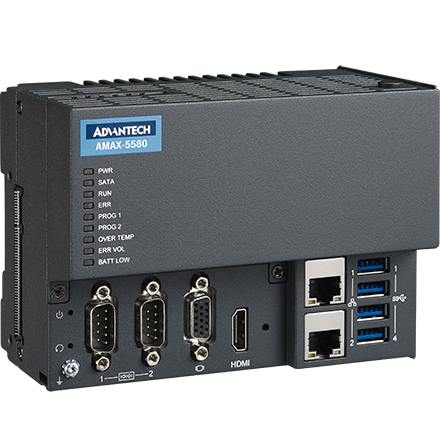

AMAX-5580

Intel® Core™ / Celeron® Embedded Controller

Optimized BIOS & Embedded OS for 1ms real-time control (Windows and Linux)
Achieve 64-axis motion control with 1ms EtherCAT cycle time under Windows (applies to AMAX-5580 Core i processor)
OPC UA and Modbus TCP/RTU as IT connectivity enabled by CODESYS
EtherCAT, PROFIT, Ethernet I/P, CANopen as OT connectivity enabled by CODESYS
Unlimited I/O points, fieldbus networks, and visualization variables for CODESYS applications
CODESYS Visualization (Target and Web), SoftMotion and CNC/Robotics support by different package
Advantech Data Connect (ADC) Library provides flexible and highly efficient data connection with 3rd party application software through symbols (PLC Handler) & shared memory (C++/C#)
Intel® Core™ i7/i5/Celeron® with 8GB/4GB DDR4 memory
System I/O with 2 x GbE, 4 x USB 3.0, 2 x COM, 1 x HDMI, 1 x VGA, 1 x 7 pin terminal (dual power input with alarm output)

PCIE-1203IO

EtherCAT IO MDevice PCIE Card

667MHz dual-core ARM processor
2 x EtherCAT ports for 250/200us cycle time
Up to DI 1024 CH / DO 1024 CH / AI 128 CH / AO 128 CH IO Control
Diagnostics for fast error handling can trace command and error message

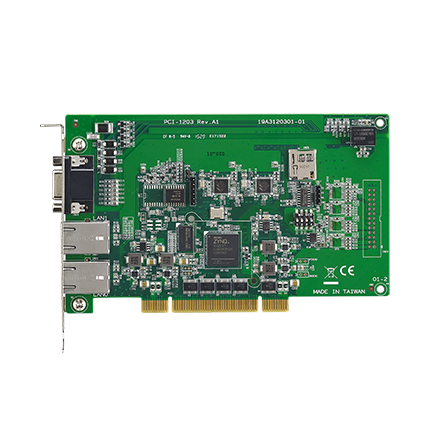

PCI-1203

2-port EtherCAT Universal PCI MDevice Card

650MHz dual-core ARM processor
2 x EtherCAT ports for high-performance of Motion and I/O applications
Supports common motion SDK for rapid application development
Up to 32 axes support for motion control
Supports a maximum of 6 motion groups and 8 axes per group
Supports on board 8-CH isolated DI and 4-CH isolated DO
Diagnostics for fast error handling can trace command and error message

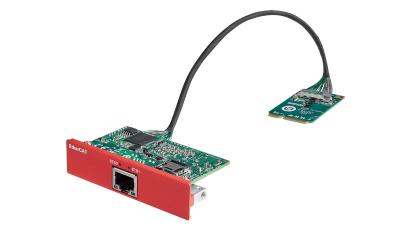

PCM-26R1EC

1-Port EtherCAT I/O MainDevice mPCIe Card

Meets Advantech iDoor technology standard
PCI ExpressR Mini card specification revision 1.2 compliant
Identical interface for all EtherCAT Motion Cotrollers
Support high speed IO control in EtherCAT
Connect I/O SubordinateDevice automatically without ESI/ENI
Easy-to-use EtherCAT integrated development environment
Provide error detection and diagnostics to monitor the entire EtherCAT network

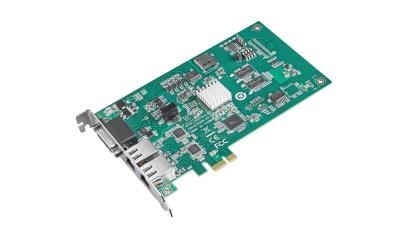

PCIE-1203

Full Function EtherCAT PCIE MDevice Card

667MHz dual-core ARM processor
2 x EtherCAT ports for high-performance of motion and I/O applications
Supports common motion SDK for rapid application development
Supports PTP, linear and circle interpolation, Path table, Compare, Latch, Compare delay DO trigger function
Supports programmable acceleration/deceleration rate
Diagnostics for fast error handling can trace command and error message

PCIE-1812

250 kS/s, 16-bit, 8-ch, Simultaneous Sampling, Multifunction PCIE Card

8 differential simultaneous sampling analog inputs, up to 250 kS/s, 16-bit resolution
2 analog outputs, up to 3 MS/s, 16-bit resolution
Full auto-calibration
2 analog triggers and 2 digital triggers for AI/O
32 programmable DI/Os with interrupt functions
Four 32-bit programmable counters/ timers/ encoders
Board ID switch
Support for Microsoft Windows 10/11

PCIE-1810

500 kS/s, 12-bit, 16-ch Multifunction PCIE Card

16 analog inputs, up to 800 KS/s, 12-bit resolution
2 analog outputs, up to 500 KS/s, 12-bit resolution
Support for digital trigger and analog trigger
24 programmable digital I/O lines
Two 32-bit programmable counter/timers
Onboard FIFO memory ( 4 K samples)

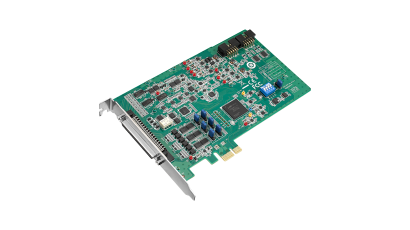

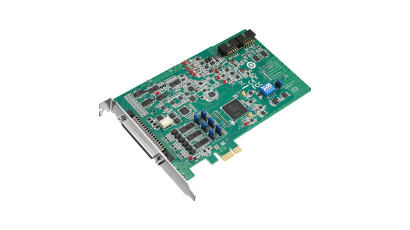

PCIE-1816

1 MS/s, 16-bit, 16-ch Multifunction PCIE Card

16 analog inputs, up to 1 MS/s, 16-bit resolution
2 analog outputs up to 3 MS/s, 16-bit resolution
Support Analog and Digital Trigger for AI/O
Support Waveform generation for AO
24 programmable digital I/O lines
Two 32-bit programmable counter/timers
Onboard FIFO memory (8k samples)
Support for Microsoft Windows 10/11 and Linux

PCIE-1816H

5 MS/s, 16-bit, 16-ch Multifunction PCIE Card

16 analog inputs, up to 5 MS/s, 16-bit resolution
2 analog outputs up to 3 MS/s, 16-bit resolution
Support Analog and Digital Trigger for AI/O
Support Waveform generation for AO
24 programmable digital I/O lines
Two 32-bit programmable counter/timers
Onboard FIFO memory (8k samples)
Support for Microsoft Windows 10/11 and Linux

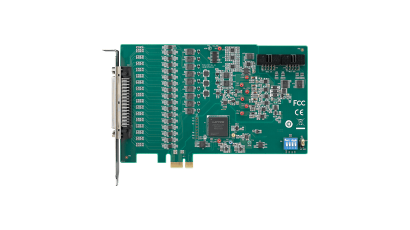

PCIE-1747

250 kS/s, 16-bit, 64-ch Analog Input PCIE Card

64-ch single-ended or 32-ch differential or a combination of analog input
16-bit A/D converter, with up to 250 kHz sampling rate
Auto calibration
Onboard FIFO memory (8,192 samples)
PCIE-Bus mastering data transfer
BoardID™ switch

PCIE-1805

1MS/s, 16-bit, 32-ch Analog Input PCIE Card

32-ch single-ended or 16-ch differential or a combination of analog input
16-bit A/D converter, with up to 1MHz sampling rate
Multi-card synchronization
Current measurement (0-20mA or 4-20mA)
Support digital and analog triggers
Auto calibration

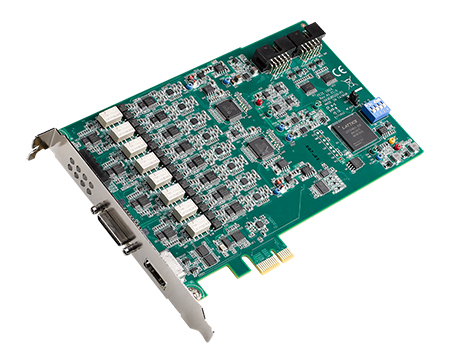

PCIE-1803

128 kS/s, 24-bit, 8-ch PCIE Card for IEPE Sound and Vibration

8 simultaneously sampled analog inputs, up to 128 kS/s
24-bit resolution ADCs with -102 dB total harmonic distortion plus noise (THD+N)

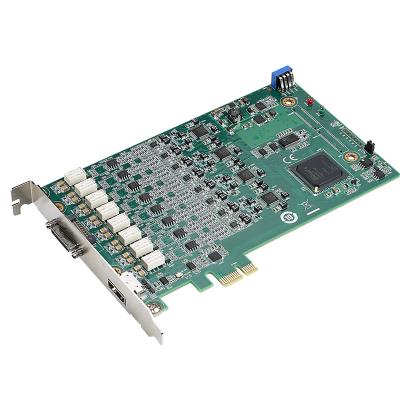

PCIE-1802

216 kS/s, 24-bit, 8-ch PCIE Card for IEPE Sound and Vibration

24-bit resolution ADCs with 115 dB dynamic range
Wide input ranges from ±0.2 V to ±10 V
Software selectable AC/DC coupling
Software configurable 4 or 10 mA Integrated Electronic Piezoelectric Excitation (IEPE)
Built-in anti-aliasing filter
8 simultaneously sampled analog inputs up to 216 kS/s
Multiple card synchronization
Full auto-calibration

PCI-1720U

12-bit, 4-ch Isolated Analog Output Universal PCI Card

4 12-bit D/A output channels
Multiple output ranges
2,500 VDC isolation between the outputs and the PCI bus
Keeps the output settings and values after system reset
One DB37 connector for easy wiring
Universal PCI and BoardID™ switch

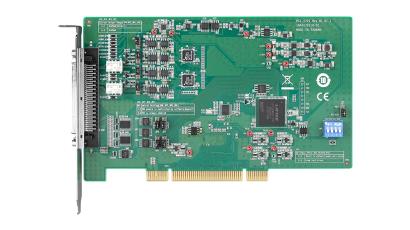

PCI-1721

12-bit, 4-ch Analog Output PCI Card with 16-ch Digital I/O

10 MHz maximum digital update rate
Synchronized output function
16-ch DI/O and one 10 MHz 16-bit resolution counter
Four analog output channels with 1,024 samples FIFO buffer
A 12-bit DAC is equipped for each of analog output channels
Real-time waveform output function with internal/external pacer
Flexible output types and range settings
Keeps the output settings and values after system hot reset
Auto calibration function
BoardID™ switch

PCI-1723

16-bit, 8-ch Analog Output PCI Card with 16-ch Digital I/O

Auto calibration function
A 16-bit DAC is equipped for each analog output channel
Synchronized output function
Output values retained after system hot reset
2-port (16-channel) user-defined digital input/output
BoardID™ switch

PCI-1724U

14-bit, 32-ch Isolated Analog Output Universal PCI Card

32 high-density analog output channels
Flexible Output Range: +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA
Synchronized output function
Keeps output values after system hot reset
BoardID™ switch

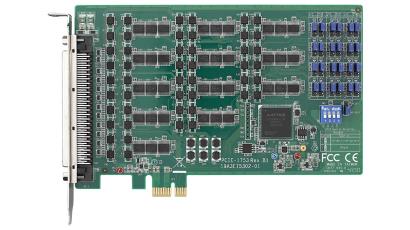

PCIE-1753

96-ch Digital I/O PCIE Card

Fully compatible with PCI-1753
Up to 96 TTL digital I/O lines
Emulates mode 0 of 8255 PPI
Supports both dry and wet contact
Interrupt handling capability
Output status read-back
Supports input data pattern match and change of state functions
Keep I/O settings and output status after hot reset
Buffered circuits for higher driving capacity than the 8255
High-density 100-pin SCSI connector

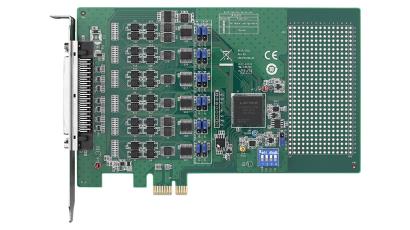

PCIE-1751

48-ch Digital I/O and 3-ch Counter PCIE Card

48 TTL digital I/O lines
Emulates mode 0 of 8255 PPI (every port with nibble)
Supports both dry and wet contact
Interrupt handling capability
Timer/Counter interrupt capability
Buffered circuits for higher driving capacity than the 8255
Keeps the I/O port setting and DO state after system reset
BoardID switch
Pattern match interrupt function for DI
Change of state interrupt function for DI
Programmable digital filter function for DI

PCI-1737U

24-ch Digital I/O Universal PCI Card

ISA-Compatible with PCL-724
24 TTL digital I/O channels
Emulates mode 0 of 8255 PPI
Interrupt handling
Opto-22 compatible 50-pin connectors
Output status readback
PCI universal card

PCI-1751

48-ch Digital I/O and 3-ch Counter PCI Card

48 TTL digital I/O lines
Emulates mode 0 of 8255 PPI
Supports both dry and wet contact
Interrupt handling capability
Timer/Counter interrupt capability
Buffered circuits for higher driving capacity than the 8255
Keeps the I/O port setting and DO state after system reset
BoardID switch

PCIE-1758

128-ch Isolated Digital I/O PCIE Card

Interrupt handling capability for each channel
128 isolated digital output channels (64 channels for PCI-1758UDIO)
High-voltage isolation on output channels (2,500 VDC)
Wide output range (5 ~ 40 VDC)
High sink current for isolated output channels (350 mA max./channel)
BoardID™ switch
Digital output value retained after hot system reset
PCIE-1758DI and PCIE-1758DIO
128 isolated digital input channels (64 channels for PCI-1758UDIO)
Wide input range (10 ~ 30 VDC)
High ESD protection (2,000 VDC)
Digital Filter function
BoardID™ switch
PCIE-1758DO and PCIE-1758DIO

PCIE-1750U

32-ch Isolated Digital I/O with universal output PCIE Card

16-ch isolated digital input
16-ch isolated digital output for both PNP(source)/ NPN (sink) type
High output driving capacity
DO type selectable by software
High isolation voltage (2,500 VDC)

PCIE-1762H

16-ch Relay and 16-ch Isolated Digital Input w/ digital filter & interrupt PCIe Card

16-ch digital input and 16-ch relay
Interrupt handling capability for all DI channels
Selectable Digital filter time for all DI channels
Output status readable
LED indicator to show activated relays
Selectable Form A or Form B

PCIE-1761H

8-ch Relay and 8-ch Isolated Digital Input w/ digital filter and interrupt PCIe Card

8 opto-isolated digital input channels
8 relay actuator output channels
Interrupt handling capability for all DI channels
Selectable Digital filter time for all DI channels
Output status readable
LED indicator to show activated relays
Selectable Form A or Form C

PCI-1780U

8-ch, 16-bit Counter/Timer Universal PCI Card

8 independent 16-bit counters
8 programmable clock source
8 digital TTL outputs and 8 digital TTL inputs
Up to 20 MHz input frequency
Multiple counter clock source selectable
Counter output programmable
Counter gate function
Flexible interrupt source select
BoardID™ switch

PCI-1784U

4-axis Quadrature Encode/Counter Universal PCI Card with 8-ch Isolated Digital I/O

Four 32-bit up/down counters
Single ended or differential inputs
Pulse/direction and up/down counter
x1, x2, x4 counts for each encoder cycle
Multiple interrupt sources for precision application
4-stage digital filter with selectable sampling rate
On-board 8-bit timer with wide range time-base selector
Optically isolated up to 2,500 VDC
4 isolated digital input
4 isolated digital output
BoardID™ switch

PCIE-1884

32-bit, 4-ch Encoder/Counter with Preload Position Compare FIFO PCIE Card

Four 32-bit programmable encoder counters
Quadrature (X1, X2, X4), dual pulse (CW/CCW), signed pulse (OUT/DIR) modes
Programmable trigger output (preload FIFO) for position comparison
Single-ended or differential inputs
Digital filter with selectable values
2,500 VDC isolation protection for all signals

USB-5820

4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module

USB 3.0 SuperSpeed
Daisy chainable by built-in USB hub
4 x 16-bit analog output channels with 2,500 V DC isolation
Multiple voltage and current output ranges
Removable European-type connector
Supported operating systems: Windows 10/11

USB-5817

8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module

USB 3.0 SuperSpeed
Daisy chainable by built-in USB hub
8 x 16-bit analog input channels with 2,500 VDC isolation
Support voltage and current measurement
Wide common-mode voltage range (±275 V)
Removable European-type connector
Supported operating systems: Windows 10/11

USB-5801

4-ch, 24-bit, 192 kS/s USB 3.0 I/O Module for Sound and Vibration (with AO and Tachometer)

USB 3.0 SuperSpeed and daisy chainable by built-in USB hub
4x simultaneously sampled analog inputs, up to 192 kS/s
24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)
Built-in anti-aliasing filter
2 mA integrated electronic piezoelectric (IEPE) excitation currents
2 analog outputs with update rate up to 192 kS/s
24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)
2 tachometer inputs for period or frequency measurement
4-ch isolated digital input and 4-ch isolated digital output

USB-5830

16-ch Isolated DI and 16-ch Isolated DO USB 3.0 I/O Module

USB 3.0 SuperSpeed
Daisy chainable by built in USB hub
16-ch digital input and 16-ch digital output with 2,500 VDC isolation
Wide input voltage range (10 ~ 30 VDC)
Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
Quick removable European type connector
LED indicators for I/O status
Supported operating systems: Windows XP/7/8/10

PCM-3680

2-port CAN-bus PC/104 Module with Isolation Protection

Operates two separate CAN networks at the same time
High speed transmission up to 500 kbps
Optical isolation protection of 1,000 VDC ensures system reliability
16 MHz CAN controller frequency
Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15
LEDs indicate Transmit/Receive status on each port
Direct memory mapping enables very fast access to the CAN controllers
Windows DLL library and examples included
Supports Windows 2000/XP/Vista and Linux

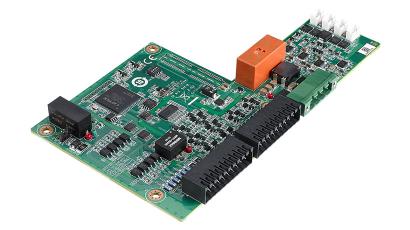

AIIS-1882

4-ch PWM Lighting Control for AIIS Vision System

Designed specifically for machine vision applications
4-ch lighting control output with trigger input
Programmable delay time, PWM high/low time, and output lighting duration
Up to 350 mA and 40 VDC digital output capability by external power
12-ch isolated digital input and 16-ch isolated digital output
Software configurable digital filter for isolated digital input and trigger
Software selectable sink (NPN)/source (PNP) type for isolated digital output
2,500 VDC isolation protection for all I/O signals

PCM-3612I

4-port RS-232/422/485 PCI-104 Module

Automatic RS-485 data flow control
LED indicators: TX, RX
Standard PC ports: COM1, COM2, COM3, COM4 compatible
Supports Windows 7/8/10
Linux driver
Powerful and easy-to-use utility (ICOM Tools)

PCM-3724

48-ch Digital I/O PC/104 Module

48 TTL digital I/O lines
Output status read-back
Channels simulate 8255 PPI mode 0
Interrupt triggering, rising/falling edge

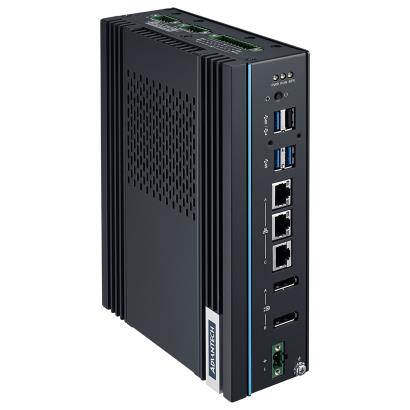

UNO-148 V2

Fanless DIN-Rail IPC with Intel® Core™ Processors (13th Gen)

Intel® Core™ processors (13th Gen) with 8GB DDR5 memory
Port isolation for 8 x DI, 8 x DO, 4 x COM
Supports 2 x M.2 M key 2280 NVMe SSD storage (support RAID)
Supports 1 x M.2 E Key 2230 wi-fi module and 1 x miniPCIe with Nano SIM card slot
Dual 2500 BASE-T Ethernet supports Time-Sensitive Network (TSN) technology
Modular design for optional iDoor extension
Support Windows 11 IoT Enterprise LTSC

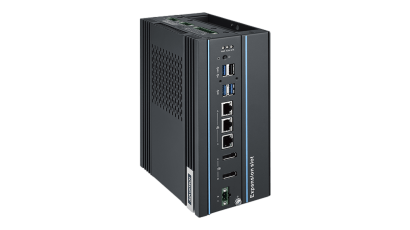

UNO-MXM-CB01

UNO Carrier Stack supports MXM GPU module aims for image processing and AI inference

1 x PCIe x4 expansion kit support 35W MXM GPU
Bundle compact Din-rail embedded PC form factor, UNO-148 series, with Intel® Core™ processors (13th/11th Gen)
Expansion modules to accommodate MXM GPU module for powerful computing capabilities
Support 4 independent display outputs (3 x DP, 1 x HDMI)
Standalone heatsink and fan for GPU stable performance
Support up to 8GB GDDR6 with ECC (depends on MXM module option)
Industrial design with longevity support (5 years life cycle compared to commercial GPU card 1 year)

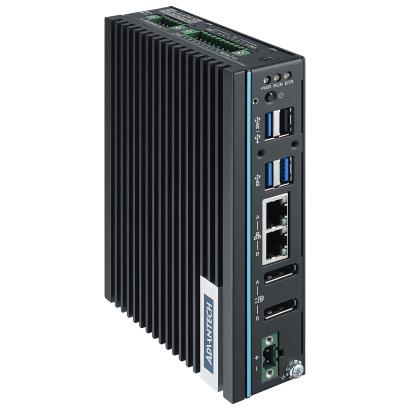

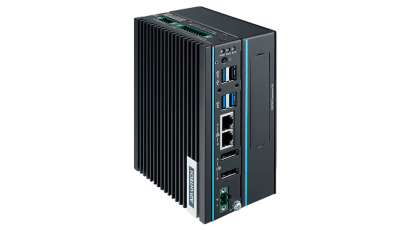

UNO-137 V2

Small-Size Integrated DIN-Rail IPC with Intel® Atom® x6413E and x6425RE

Intel® Atom® x6413E (1.5 GHz) and x6425RE (1.9GHz) processor with 8GB DDR4 memory
Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F) and wide power input range (10 ~ 36 VDC)
Port isolation for 8 x DI, 8 x DO, 2 x COM
DP++ ensures HDMI/DVI compatibility
Dual storage: 1 xM.2 M-key 2242 PCIe/NVMe or SATA/SSD and 1 x mSATA
Onboard TPM 2.0 provides hardware-based security
Modular design for optional iDoor extension
Ruggedized DIN-rail kit
Compliant with IEC 61010-1 safety requirements

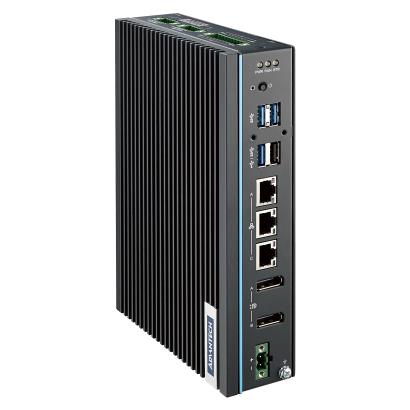

UNO-148

Compact DIN-Rail Edge Controller with 11th Gen Intel® Core™ i CPU

Port isolation for 8 x DI, 8 x DO, 4 x COM
Supports M.2 M key 2280 NVMe SSD storage, M.2 B key 2242 storage, 3042/3052 cellular modules, and M.2 E Key 2230 wi-fi modules
Dual 2500BASE-T Ethernet supports Time-Sensitive Network(TSN) technology
Remote out-of-band (OOB) power management with Advantech iBMC technology
Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified

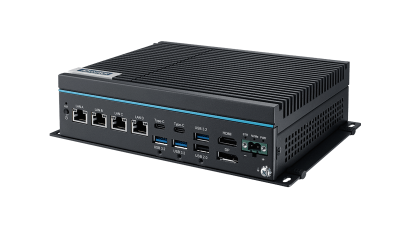

UNO-2484V3

Modular Embedded Box PC with Intel® Core™ Ultra CPU (Series 2)

Intel® Core™ Ultra Processors (Series 2), including Ultra 5 225U & Ultra 7 255U (formerly Arrow Lake)
Wide operating temperature: -20 ~ 60 °C; power input: 10 ~ 36 VDC
Up to four display outputs (DP + HDMI + 2 x Type-C)
4 x LAN, 3 x USB 3.2 Gen2, 1 x USB 2.0, 2 x Type-C
4 x RS-232/422/485
2 x M.2 M-key, 1 x M.2 E-key, 1 x M.2 B-key
User-friendly design: side-extractable SIM card, easy RAM & logo replacement, reserved punch-out holes for antennas
Optional DDR5 slots x2, each channel supporting up to 32GB, enabling flexible memory expansion and optimized system performance

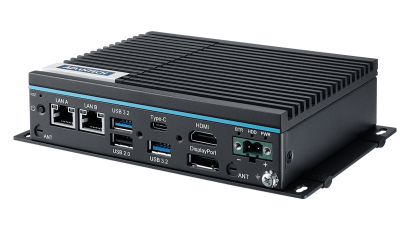

UNO-2372V3

Small-Size Modular Embedded Box PC with Intel® Processor N250 and Intel Atom® x7433RE Processor

Intel® N250 (1.3GHz, formerly Twin Lake) and Intel Atom® x7433RE (1.5GHz, formerly Amston Lake) quad-core processor
Equipped with one DDR5 memory slot (up to 16GB)
Compact, robust, fanless and scalable system with high stability
Optional second stack for supporting iDoor extension modules, including wireless connectivity, industrial fieldbus and additional I/O ports
1 x M.2 B Key (3042/3052, PCIe x1, USB 3.2/2.0, SATA), 1 x M.2 E key (2230, PCIe x1, USB 2.0) for wireless modules
1 x M.2 M key (2242 NVMe, PCIe x2) for storage
Supports Windows 11 LTSC, Ubuntu 22.04

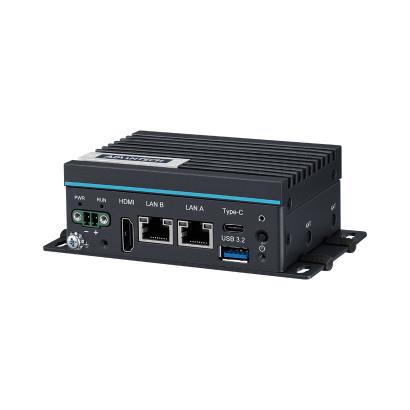

UNO-2271G V3

Pocket-Size Edge IoT Gateway with Intel Atom® x7211RE processor

Intel Atom® x7211RE processor (Dual core) with 8GB LPDDR5 onboard memory and 64 GB eMMC
Pocket-size, robust, fanless and cable-free system with high stability
Optional second stack for increasing functionality including POE, COM, wireless connectivity or iDoor expansion
Support Windows 11 LTSC, Ubuntu 22.04

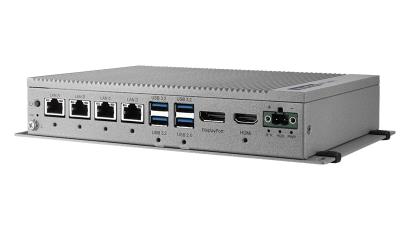

UNO-2484G V2

Modular Embedded Box PC with 11th Gen Intel® Core™ i CPU

Intel® Core™ 11th i7/i5/i3 Processor with 8GB DDR4 3200Mb/s memory
4 x GbE, 3 x USB 3.2 Gen2, 1 x USB2.0, 1 x HDMI 1.4, 1 x DP 1.4a, 4 x RS232/422/485
Optional 2nd stack supports up to 2 x iDoor extension for expending wireless connectivity, industrial fieldbus or more I/O
Compact fanless design
Ruggedized by zero cable and lockable I/O design
Supports NVME storage with high data-transmission efficiency

UNO-348

Expandable Embedded Box IPC with 10th Gen Intel® CPU

Intel® 10th Gen socket type processor with DDR4 memory
Scalable CPU, RAM selection
Compact, rugged and fanless design for harsh embedded environment
Flexible expansion with up to 3 x PCIe/PCI slots, 1 x M.2 (B-key), 1 x mPCIe & 2 x 2.5″ SSD
Optional iDoor expansion
Remote out-of-band (OOB) power management with Advantech’s iBMC technology
Built-in TPM2.0 for hardware-based security

UNO-3272G

Expandable Embedded Box IPC with Intel® Celeron® J1900

Intel® Celeron® J1900 2.0GHz processor with 4GB DDR3L memory
3 x USB2.0, 1 x USB3.0, 2 x RS232/422/485, 2 x RS232
2 x 10/100/1000BASE-T Ethernet
VGA, HDMI support 2 x independent displays
Optional Digital I/O support for sensing and controlling
Dedicated TPM2.0 microcontroller designed for hardware security
Flexible system I/O expansion by iDOOR technology
Support diverse fieldbus protocol by iDOOR technology
Dual Power input for power redundancy

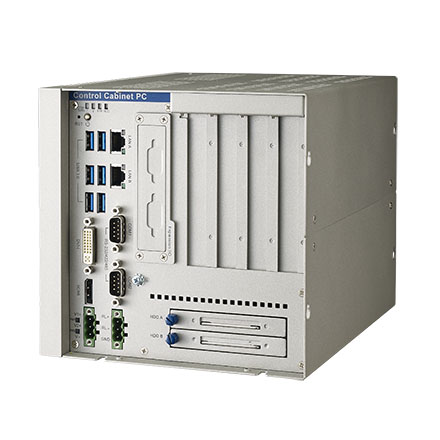

UNO-3285G

Intel® Core™ i Automation Computer with 4 PCI(e) Expansion Slots

Intel® 6th Gen Core™ i7-6822EQ Quad Core Processors with 8GB DDR4 Memory
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
2 x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast, slot, 1 x mSATA slot (optional)
Dual Hot-Swappable storage with thumb screw support for RAID 0/1
Supports Fieldbus Protocol by iDoor Technology
Dual power input for power redundancy
Front LED indicator design for monitoring system status

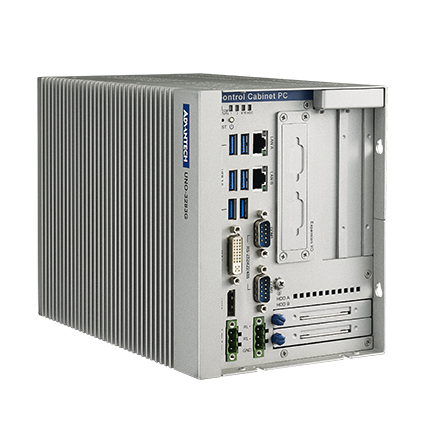

UNO-3283G

Intel® Core™ i Automation Computer with 2 PCI(e) Expansion Slots

6th Generation IntelR Quad Core Processors with 8GB DDR4 Memory
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x RS-232 (pin header), 1 x DVI-I, 1 x HDMI
1 x PCIex16, 1x PCI, 2 x mPCIe (2 x full), 1x CFast slot, 1 x mSATA slot (optional)
Thumb screw for easy maintenance
Hot-Swappable HDD/SSD support for RAID 0/1
Easily exchangeable RTC battery
Supports Fieldbus Protocol by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)

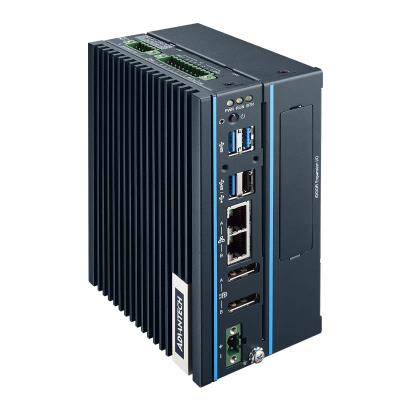

UNO-410

Explosion-Protected DIN-rail Gateway with Intel® Atom® E3940, C1D2, ATEX/IECEx Certification

Explosion protection with UL listed Class 1, Division 2 /ATEX Zone 2/ IECEx Zone 2 certification
Port isolation for 8 x DI, 8 x DO, 2 x COM
Dual storage with M.2 2242 SATA SSD and 2.5” HDD/SSD
Onboard TPM 2.0 provides hardware-based security
Supports M.2 3042/3052 module
Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
