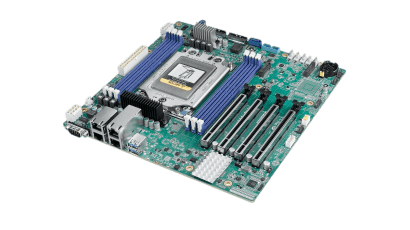

LWIT-MBX593
Micro-ATX Motherboard AMD EPYC 8004 Series Processor
- Supports AMD EPYC 8004 processor
- Supports 576GB DDR5 4800MHz with 6 RDIMMs
- 2 x M.2 M-Key 2280 slots (PCIe Gen5 x4) for high-speed NVMe SSDs.
- Up to 5 x PCIe Gen5x16 slots, default onboard 4 x PCIe Gen5x16 slots
- 2 MCIO x8 (offer extension board for additional 2 PCIe slots)
- Intel® X710-AT2 dual 10GbE ports & I226 dual GbE ports
LWIT-MBX589
Intel® Core™ Ultra 5/7/9 LGA1851
- Intel® Core™ Ultra Series 2 Processors, max. 24Core. Support W880/Q870 chipsets
- Up to 192GB DDR5 UDIMMs/CUDIMMs for data transfer
- 2 x 2.5GbE LAN and 2 x GbE LAN for digital devices
- 1 x USB4, 8 x USB3.2, 4 x USB2.0
- 2 x M.2 M-Key 2280 for NVMe SSD
- Accommodate 2 double-deck GPU cards by PCIe x16 slots (x8 lanes)

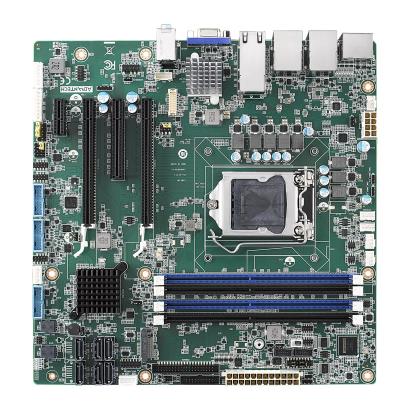

LWIT-MBX587
Micro-ATX Motherboard 10th Gen Intel® Xeon® Processor LGA1200
- Supports Intel® 10th Gen Xeon/Core™ (Comet Lake-S) i9/i7/i5/i3 processor with Q470E/ W480E/ H420E chipset
- Four U-DIMM sockets support up to 128GB DDR4 2666/2933 MHz SDRAM
- Supports 2 DP++, VGA(option), eDP display with Triple Display support
- Supports Intel AMT 12.0 and Intel vPro competent
- Supports PCIE Gen3, Dual 10 GbE LAN, Dual GbE LAN, M.2(M-key) and up to 8 x SATAIII
- Supports 4 USB3.2 Gen2, 6 USB3.1 Gen1 and 6 USB2.0
- Supports SUSI,Ubuntu 20.04 LTS, WISE-DeviceOn and Edge AI Suite
LWIT-MBX508
Micro-ATX Motherboard 12th/13th/14th Gen Intel® Core™ Processor LGA1700
- Intel® Core™ 14/13/12th gen processors with H610E chipset
- Up to 64GB DDR4 UDIMMs for data transfer
- PCIe x16 slot Gen4, PCIe x4 slot Gen3, PCI slot
- Numerous expansion: 8 USB 3.2 ports, 6 USB 2.0 ports, and 10 COM
LWIT-MBX506
Micro-ATX Motherboard 8th/9th Gen Intel® Core™ Processor LGA1151
- Supports Intel® 8th/9th Gen Core i7/i5/i3 processor with H310 chipset
- Supports up to 14 COM, 8 USB 3.0, 12 USB 2.0, TPM 1.2/2.0 (optional)
- Supports Dual display of VGA, DP, DVI, eDP, LVDS (optional) and two GbE LAN
- Two DIMM sockets support up to 64 GB DDR4 2666 MHz SDRAM
- Supports WISE PaaS/Device-On, McAfee, Acronis, Edge AI Suite and Embedded Software APIs
LWIT-MBX586
Micro-ATX Motherboard 8th/9th Gen Intel® Xeon® E3 Processor LGA1151
- Supports Intel® 8th/ 9th Gen Xeon/ Core™ i7/i5/i3 processor with Q370/C246/H310 chipset
- Four U-DIMM sockets support up to 128GB DDR4 2400/2666 MHz SDRAM
- Supports HDMI2.0a(option),2 DP++,eDP/LVDS(option) display
- Supports Intel AMT 12.0 and Intel vPro competent
- Supports PCIE Gen3, 4 USB3.1, 10 x USB2.0/USB 3.0, upto 4 x SATAIII and quad GbE LAN, M.2(M-key),M.2(E-key)
- Supports Software RAID 0, 1, 5, 10, TPM 1.2/2.0 (optional)
- Supports SUSI, WISE-DeviceOn and Edge AI Suite.
LWIT-MBX588B1
Micro-ATX, 12th/13th/14th Gen & and Series 2 Intel® Core™ Processor LGA1700
- Intel® Core™ 14/13/12th gen & Series 2
- 3 2.5GbE LAN and 1 GbE LAN for digital devices
- Up to 192GB DDR5 UDIMMs for data transfer
- High speed expansions: PCIe x16 Gen5, 8 USB3.2, 1 USB3.2 Type C
- 1 internal USB3.2 type A to support USB keylock functions
- Quad displays by 2 DPs, HDMI, and eDP

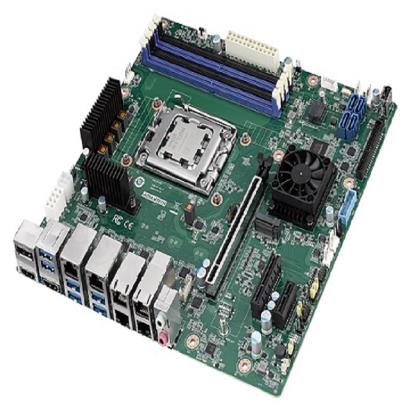

AIMB-523
Micro-ATX Motherboard AMD Ryzen™ Embedded 7000/9000 Series processors
- AMD Ryzen™ Embedded 7000/9000 Series processors with B650 chipset
- 6 LAN ports with 2.5GbE for multiple IP-based devices
- Triple displays by 1 DP and 2 HDMI
- High-speed expansions: PCIex16 Gen5, 8 USB 3.2, 1 M.2 M-key (PCIe Gen4 x4)
- 1 internal USB2.0 type A to support USB keylock functions
- Support Windows 10/11 and Ubuntu
LWIT-MBX789
LGA1851 Intel® Core™ Ultra 9/7/5 ATX with HDMI/VGA, DDR5, USB 3.2, 6 COMs
- Intel® Core™ Ultra 9/7/5 processor with Q870 chipset
- Four DIMM sockets up to 192GB DDR5 5600
- Triple display DP/HDMI/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 2
- Advantech iBMC remote out-of-band power management solution on DeviceOn
- Note 1: Legacy platform is not supported
- Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies
- Note 3: Intel® Platform Trust Technology (Intel® PTT) ready for Windows 11
LWIT-MBX709
LGA1851 Arrow Lake S Generation Intel® Core™ Ultra 9/7/5 ATX with HDMI/VGA, DDR5, USB 3.2, 6 COMs
- Intel® Arrow Lake S Core™ Ultra 9/7/5 processor with H810 chipset
- Two DIMM sockets up to 96GB DDR5 6400
- Dual display HDMI/VGA and dual GbE LAN
- SATA 3.0, USB 3.2 Gen1
- 5 RS-232 and 1 RS-232/422/485 serial ports
- 1 PCIe x16 (Gen 5) and 3 PCIe x4 (x2 Gen 4 link), and 3 PCI expansion slots

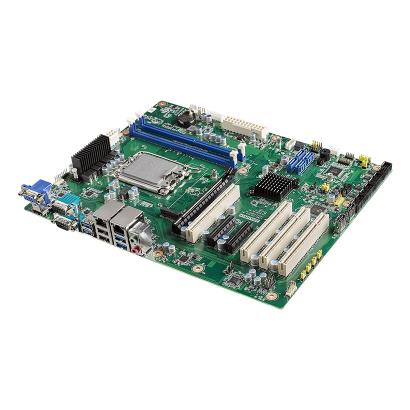

LWIT-MBX708
LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/ Celeron® ATX with HDMI/VGA, DDR4, USB 3.2, M.2, 6 COMs
- Intel® 12th/13th/14th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with H610E chipset
- Two DIMM sockets up to 64GB DDR4 3200
- Dual display HDMI/VGA and dual GbE LAN
- M.2, SATA 3.0, USB 3.2 Gen1
- 5 RS-232 and 1 RS-232/422/485 serial ports
- 1 PCIe x16 (Gen 4) and 2 PCIe x4 (x2 Gen 3 link), and 4 PCI expansion slots
- Support Windows 11 IoT Enterprise LTSC

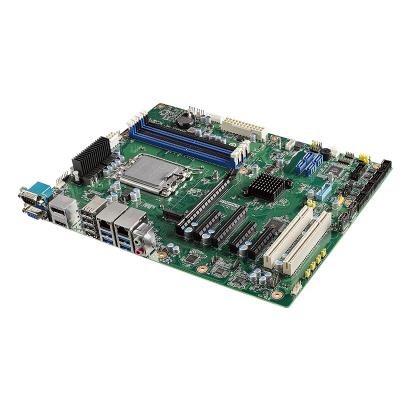

LWIT-MBX788
LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR4, USB 3.2, M.2
- Intel® 12th/13th/14th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q670E chipset
- Four DIMM sockets up to 128 GB DDR4 3200
- Triple display DP/HDMI/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 2
- Advantech iBMC remote out-of-band power management solution on DeviceOn
- AWS (Amazon Web Service) IoT Greengrass qualified
- Note 1: Legacy platform is not supported
- Note 2: dTPM 2.0 module is required to enable Intel vPro and TPM technologies
- Note 3: Intel® Platform Trust Technology (Intel® PTT) ready for Windows 11
LWIT-MBX788E
LGA1700 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3 ATX Motherboard with DP/HDMI/VGA, DDR5, USB 3.2, M.2
- Intel® 12th/13th/14th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q670E/R680E chipset
- Dual PCIe x16 expansion slots
- DDR5 UDIMM up to 48GB per slot; 192 GB total
- Seven PCIe slots or Dual M.2 M Key for NVMe RAID
- Triple display DP/HDMI/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2 Gen 1
- Advantech iBMC remote out-of-band power management solution on DeviceOn
LWIT-MBX787
LGA1200 10th Generation Intel® Core™ i9/i7/i5/i3 & Pentium®/Celeron® ATX with DP/DVI/VGA, DDR4, USB 3.2, M.2
- Intel® 10th generation Core™ i9/i7/i5/i3 & Pentium®/Celeron® processor with Q470E chipset
- Four DIMM sockets up to 128 GB DDR4 2933
- Triple display DP/DVI-D/VGA and dual GbE LAN
- M.2, SATA RAID 0, 1, 5, 10, USB 3.2
- Supports Intel vPro, AMT & TPM technologies
- Advantech iBMC 1.2 remote out-of-band power management solution on DeviceOn
- Note 1: dTPM 2.0 module is required to enable Intel vPro and TPM technologies.
- Note 2: Legacy platform is not supported.
- Note 3: Intel® Platform Trust Technology (Intel® PTT) ready for Windows 11.
