PCIE-1753
96-ch Digital I/O PCIE Card
- Fully compatible with PCI-1753
- Up to 96 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Supports both dry and wet contact
- Interrupt handling capability
- Output status read-back
- Supports input data pattern match and change of state functions
- Keep I/O settings and output status after hot reset
- Buffered circuits for higher driving capacity than the 8255
- High-density 100-pin SCSI connector
PCIE-1751
48-ch Digital I/O and 3-ch Counter PCIE Card
- 48 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI (every port with nibble)
- Supports both dry and wet contact
- Interrupt handling capability
- Timer/Counter interrupt capability
- Buffered circuits for higher driving capacity than the 8255
- Keeps the I/O port setting and DO state after system reset
- BoardID switch
- Pattern match interrupt function for DI
- Change of state interrupt function for DI
- Programmable digital filter function for DI
PCI-1737U
24-ch Digital I/O Universal PCI Card
- ISA-Compatible with PCL-724
- 24 TTL digital I/O channels
- Emulates mode 0 of 8255 PPI
- Interrupt handling
- Opto-22 compatible 50-pin connectors
- Output status readback
- PCI universal card
PCI-1751
48-ch Digital I/O and 3-ch Counter PCI Card
- 48 TTL digital I/O lines
- Emulates mode 0 of 8255 PPI
- Supports both dry and wet contact
- Interrupt handling capability
- Timer/Counter interrupt capability
- Buffered circuits for higher driving capacity than the 8255
- Keeps the I/O port setting and DO state after system reset
- BoardID switch

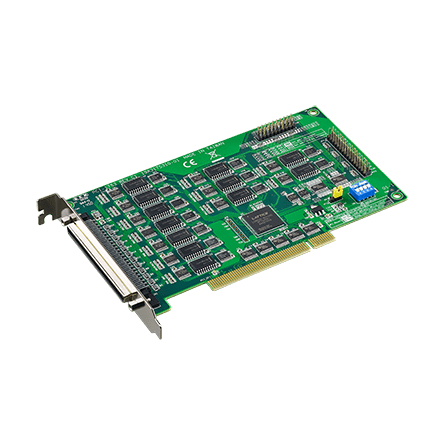

PCI-1753
96-ch Digital I/O PCI Card
- Emulates mode 0 of 8255 PPI
- Buffered circuits for higher driving capacity than 8255
- Multiple-source interrupt handling
- Interrupt output pin for simultaneously triggering external devices with the interrupt
- Output status read-back
- “Pattern match” and “Change of state” interrupt functions for critical I/O monitoring
- Keeps I/O setting and digital output values when hot system reset
- Supports dry contact and wet contact
- High-density 100-pin SCSI connector
