PCIE-1747
250 kS/s, 16-bit, 64-ch Analog Input PCIE Card
- 64-ch single-ended or 32-ch differential or a combination of analog input
- 16-bit A/D converter, with up to 250 kHz sampling rate
- Auto calibration
- Onboard FIFO memory (8,192 samples)
- PCIE-Bus mastering data transfer
- BoardID™ switch
PCIE-1805
1MS/s, 16-bit, 32-ch Analog Input PCIE Card
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 16-bit A/D converter, with up to 1MHz sampling rate
- Multi-card synchronization
- Current measurement (0-20mA or 4-20mA)
- Support digital and analog triggers
- Auto calibration

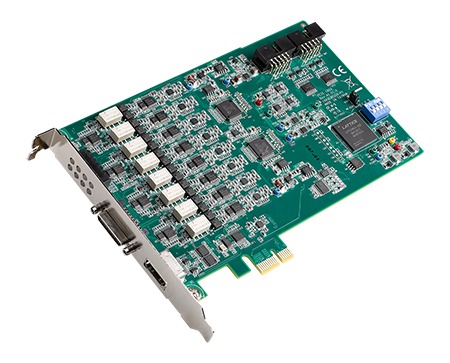

PCIE-1803
128 kS/s, 24-bit, 8-ch PCIE Card for IEPE Sound and Vibration
- 8 simultaneously sampled analog inputs, up to 128 kS/s
- 24-bit resolution ADCs with -102 dB total harmonic distortion plus noise (THD+N)
PCIE-1802
216 kS/s, 24-bit, 8-ch PCIE Card for IEPE Sound and Vibration
- 24-bit resolution ADCs with 115 dB dynamic range
- Wide input ranges from ±0.2 V to ±10 V
- Software selectable AC/DC coupling
- Software configurable 4 or 10 mA Integrated Electronic Piezoelectric Excitation (IEPE)
- Built-in anti-aliasing filter
- 8 simultaneously sampled analog inputs up to 216 kS/s
- Multiple card synchronization
- Full auto-calibration
PCIE-1840
125 MS/s, 16-bit, 4-ch Simultaneous Digitizer
- 4 simultaneous analog inputs, up to 125MHz, 16-bit resolution
- 500MHz Time Interleaved Sampling
- Non-stop data streaming capable
- 2 GB on-board memory
- 1M or 50 Ohm selectable input impedance
- On-Board tunable anti-aliasing filter
- AC/DC Coupling

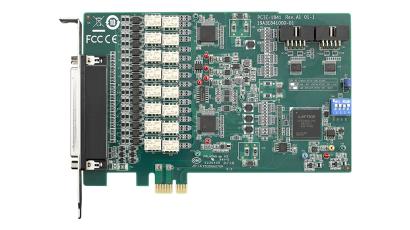

PCIE-1841
16/8-ch, 18-bit, 1MS/s/ch Simultaneous Analog Input PCI Express DAQ Card
- 16/8-ch simultaneous sampling up to 1 MS/s
- 18-bit resolution
- Software selectable low-pass filter
- Wide input range up to 40 Vpp (±20 V range)
- Support both voltage and current measurement
- Multiple selectable trigger modes
PCIE-1842
8/4-ch, 14-bit, 10 MS/s per-channel simultaneous analog-input PCIe DAQ card
- 8 or 4 x Simultaneously Analog Inputs, up to 10 MS/s
- 14-bit resolution
- Supports digital and analog triggers
- Wide input range up to 20 Vpp (±10 V range)
- Onboard FIFO memory (65,536 samples)
PCIE-1843
8/4-ch, 14-bit, 20MS/s/ch Simultaneous Analog Input PCI Express DAQ Card
- 8 or 4 x Simultaneously Analog Inputs, up to 20 MS/s
- 14-bit resolution
- Supports digital and analog triggers
- Wide input range up to 20 Vpp (±10 V range)
- Onboard FIFO memory (65,536 samples)

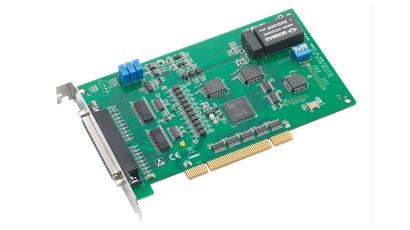

PCI-1713U
100 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
- 2,500 VDC isolation protection
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 12-bit resolution for A/D conversion
- Programmable gain for each input channel
- Software, internal or external pacer sampling modes supported
- Onboard FIFO memory: 4,096 samples;
- Universal PCI bus
- BoardID™ switch
PCI-1714
10/30 MS/s, 12-bit, 4-ch Simultaneous Analog Input PCI Card
- 4 single-ended analog input channels
- 12-bit A/D converter, with up to 30 MHz sampling rate
- Multiple A/D triggering modes
- Onboard FIFO memory 32,768 samples
- 4 A/D converters simultaneously sampling
- Programmable gain
- Programmable pacer/counter
- BoardID™ switch
- Universal PCI Bus (supports 3.3 V or 5 V PCI bus signals)
PCI-1715U
500 kS/s, 12-bit, 32-ch Isolated Analog Input Universal PCI Card
- 2,500 VDC isolation protection
- 32-ch single-ended or 16-ch differential or a combination of analog input
- 12-bit resolution for A/D conversion
- Programmable gain for each input channel
- Software, internal or external pacer sampling modes supported
- Onboard FIFO memory: 1,024 samples
- Universal PCI bus
- BoardID™ switch
PCI-1747U
250 kS/s, 16-bit, 64-ch Analog Input Universal PCI Card
- 64-ch single-ended or 32-ch differential or a combination of analog input
- 16-bit A/D converter, with up to 250 kHz sampling rate
- Auto calibration
- Onboard FIFO memory (1,024 samples)
- Universal PCI Bus (support 3.3 V or 5 V PCI bus signal)
- BoardID™ switch
