PCIE-1758

128-ch Isolated Digital I/O PCIE Card

Interrupt handling capability for each channel
128 isolated digital output channels (64 channels for PCI-1758UDIO)
High-voltage isolation on output channels (2,500 VDC)
Wide output range (5 ~ 40 VDC)
High sink current for isolated output channels (350 mA max./channel)
BoardID™ switch
Digital output value retained after hot system reset
PCIE-1758DI and PCIE-1758DIO
128 isolated digital input channels (64 channels for PCI-1758UDIO)
Wide input range (10 ~ 30 VDC)
High ESD protection (2,000 VDC)
Digital Filter function
BoardID™ switch
PCIE-1758DO and PCIE-1758DIO

PCIE-1750U

32-ch Isolated Digital I/O with universal output PCIE Card

16-ch isolated digital input
16-ch isolated digital output for both PNP(source)/ NPN (sink) type
High output driving capacity
DO type selectable by software
High isolation voltage (2,500 VDC)

PCIE-1762H

16-ch Relay and 16-ch Isolated Digital Input w/ digital filter & interrupt PCIe Card

16-ch digital input and 16-ch relay
Interrupt handling capability for all DI channels
Selectable Digital filter time for all DI channels
Output status readable
LED indicator to show activated relays
Selectable Form A or Form B

PCIE-1761H

8-ch Relay and 8-ch Isolated Digital Input w/ digital filter and interrupt PCIe Card

8 opto-isolated digital input channels
8 relay actuator output channels
Interrupt handling capability for all DI channels
Selectable Digital filter time for all DI channels
Output status readable
LED indicator to show activated relays
Selectable Form A or Form C

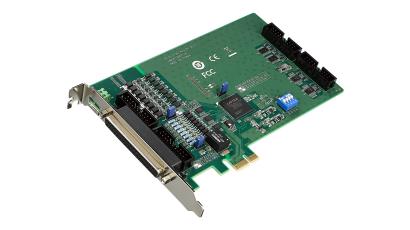

PCIE-1730

32-ch TTL and 32-ch Isolated Digital I/O PCIE Card

32-ch isolated DI/O (16-ch digital input, 16-ch digital output)
32-ch TTL DI/O (16-ch digital input,16-ch digital output)
High output driving capacity
Interrupt handling capability
2 x 20-pin connectors for isolated DI/O channels and 2 for TTL DI/O channels
D-type connector for isolated input and output channels
High-voltage isolation on output channels (2,500 VDC)

PCIE-1754

64-ch Isolated Digital Input PCIE Card

Wide input range (10 ~ 30 VDC)
Either +/- voltage input for DI by group
High over-voltage protection (70 VDC)
High-voltage isolation (2,500 VDC)
Output status read-back
Keeps the output settings and values after system hot reset
Channel-freeze function

PCIE-1756

64-ch Isolated Digital I/O PCIE Card

Wide output range (5 ~ 40 VDC)
High sink current on isolated output channels (500mA max./ch)
Wide input range (10 ~ 30 VDC)
High-voltage isolation (2,500 VDC)
Interrupt handling capability
2,000 VDC ESD protection
Either +/- voltage input for DI by group
High over-voltage protection (70 VDC)
High-voltage isolation (2,500 VDC)
Output status read-back
Keeps the output settings and values after system hot reset
Channel-freeze function

PCIE-1760

8-ch Relay and 8-ch Isolated Digital Input PCIE Card

8 opto-isolated digital input channels with counter/timer function
8 relay actuator output channels
2 opto-isolated PWM outputs
Programmable digital filter function for DI
Jumper selectable dry contact/wet contact input signals
Up event counters for DI
LED indicators to show activated relays
Pattern match interrupt function for DI
Change of state interrupt function for DI
BoardID switch

PCI-1730U

32-ch Isolated Digital I/O Universal PCI Card

ISA-compatible with PCL-730
32-ch TTL DI/O (16-ch digital input,16-ch digital output)
High output driving capacity
Interrupt handling capability
2 x 20-pin connectors for isolated DI/O channels
2 x 20-pin connectors for TTL DI/O channels
D-type connector for isolated input and output channels
High-voltage isolation on output channels

PCI-1733

32-ch Isolated Digital Input PCI Card

ISA-Compatible with PCL-733
32-ch Isolated digital input
High output driving capacity
Interrupt handling capability
D-type connector for isolated input channels

PCI-1734

32-ch Isolated Digital Output PCI Card

ISA-Compatible with PCL-734
32-ch Isolated digital output
High output driving capacity
D-type connector for isolated output channels
High-voltage isolation on output channels

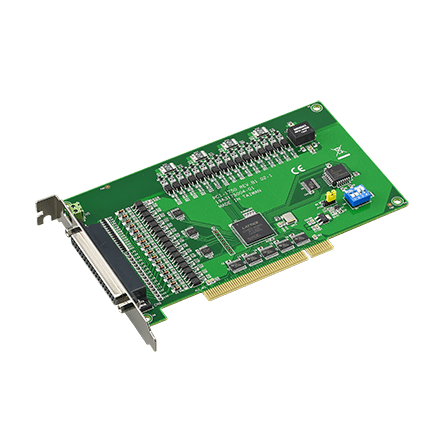

PCI-1750

32-ch Isolated Digital I/O and 1-ch Counter PCI Card

16 isolated DI and 16 isolated DO channels
High voltage isolation on all isolated channels (2,500 VDC)
High sink current on isolated output channels (200 mA/channel)
Supports dry contact or 5 ~ 50 VDC isolated inputs
Interrupt handling capability
Timer/counter interrupt capability

PCI-1752U

64-ch Isolated Digital Output Universal PCI Card

64-ch Sink Type (NPN) Isolated Digital Output Module (PCI-1752U Only)
64-ch Source Type (PNP) Isolated Digital Output Module (PCI-1752USO Only)
High-voltage isolation on output channels (2,500 VDC)
Wide output range (5 ~ 40 VDC)
High-sink/source current on isolated output channels (200 mA max./channel)
Output status readback
Keeps the output settings and values after system hot reset
Channel-freeze function
High-density 100-pin SCSI connector

PCI-1754

64-ch Isolated Digital Input PCI Card

64 isolated digital input channels
Either ± voltage input for DI by group
High-voltage isolation on input channels (2,500 VDC)
Interrupt handling capability
Wide input range (10 ~ 50 VDC)
2,000 VDC ESD protection
High over-voltage protection (70 VDC)
High-density 100-pin SCSI connector

PCI-1756

64-ch Isolated Digital I/O PCI Card

Either ± voltage input for DI by group
High-voltage isolation input/output channels (2,500 VDC)
Interrupt handling capability
High over-voltage protection (70 VDC) for DI
High-sink current on isolated output channels (200 mA max./channel)
Output status readback
Keeps output settings/ values after system hot reset
2,000 VDC ESD protection for DI
High-density 100-pin SCSI connector

PCI-1758

128-ch Isolated Digital I/O Universal PCI Card

64-ch isolated digital output and 64-ch isolated digital input
Interrupt handling capability for each channel.
Digital Filter function.
Wide output range (5 ~ 40 VDC); input range (5 ~ 25 VDC)
High-sink current for isolated output channels (200mA max./Channel)
High ESD protection (2,000 VDC).
Current protection for each port
High-voltage isolation on output channels (2,500 VDC)
Output status read-back
Watchdog timer

PCI-1761

8-ch Relay and 8-ch Isolated Digital Input PCI Card

Wide input range (10 ~ 50 VDC)
8 relay output channels and 8 isolated digital input channels
LED indicators to show activated relays
4 Form C and 4 Form A type relay output channels
Interrupt handling capability
Output status read-back
Retained relay output values when hot system reset
High-voltage isolation on input channels (3,750 VDC)
High ESD protection (2,000 VDC)
High over-voltage protection (70 VDC)
ISA-Compatible with PCL-725
Male DB37 matching connector included
BoardID™ switch

PCI-1762

16-ch Relay and 16-ch Isolated Digital Input PCI Card

16 relay output channels and 16 isolated digital input channels
LED indicators to show activated relays
Jumper selectable Form A/Form B-type relay output channel
Wide input range (10 ~ 50 VDC)
Retain relay output values when hot system reset
High-voltage isolation on input channels (2,500 VDC)
High ESD protection (2,000 VDC)
High over-voltage protection (70 VDC)
Output status read-back
Interrupt handling capability
High-density DB-62 connector
BoardID™ switch

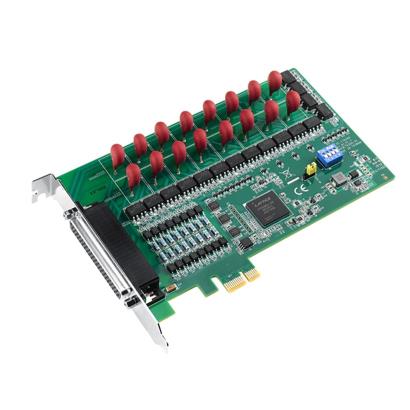

PCIE-1763

16-ch Solid-State Relay Output and 16-ch Isolated Digital Input with Digital Filter and Interrupt PCIE Card

16-ch solid-state relay (SSR) output with longer lifetime and higher operating speed compared to electro-mechanical relays
Zero-crossing (synchronous) trigger for reduced inrush current and electrical noise
16-ch photoMOS relay output with longer lifetime and higher operating speed compared to electro-mechanical relays
16-ch isolated digital input (IDI) with both dry and wet contact configurations
Interrupt capability for all IDI channels
LEDs for output state indication
Much less contact problems such as arcs, bounce, and noise
Suitable for both AC and DC applications with frequent ON/OFF switching
Programmable duration noise filter for all IDI channels
