LWIT-RTR1602EUA

ICR-1600, EMEA, 2× ETH, Antennas included

LTE Cat.4 with 3G/2G fallback
2 × SIM for redundancy
2 × Ethernet 10/100/1000 Mbps
Wide operational temperature range
Wall-mount design and optional Din-Rail kits
Linux based OS & SW customization
Compact and ruggedized design

ICR-1602-CN-A

ICR-1600, CHINA, 2× ETH, Antennas included

LTE Cat.4 with 3G/2G fallback
2 × SIM for redundancy
2 × Ethernet 10/100/1000 Mbps
Wide operational temperature range
Wall-mount design and optional Din-Rail kits
Linux based OS & SW customization
Compact and ruggedized design

LWIT-RTR1642EUA

ICR-1600, EMEA, 2× ETH, 1× RS232/RS485, Antennas included

LTE Cat.4 with 3G/2G fallback
2 × SIM for redundancy
2 × Ethernet 10/100/1000 Mbps
1 × RS232 + 1 × RS485 + 1 × DI +1 × DO
Wide operational temperature range
Wall-mount design and optional Din-Rail kits
Linux based OS & SW customization
Compact and ruggedized design

ICR-1642-CN-A

ICR-1600, CHINA, 2× ETH, 1× RS232/RS485, Antennas included

LTE Cat.4 with 3G/2G fallback
2 × SIM for redundancy
2 × Ethernet 10/100/1000 Mbps
1 × RS232 + 1 × RS485 + 1 × DI +1 × DO
Wide operational temperature range
Wide operational temperature range
Wall-mount design and optional Din-Rail kits
Linux based OS & SW customization
Compact and ruggedized design

ICR-1642W-EU-A

ICR-1600, EMEA, 2× ETH, 1× RS232/RS485, WiFi, Antennas included

LTE Cat.4 with 3G/2G fallback
2 × SIM for redundancy
2 × Ethernet 10/100/1000 Mbps
1 × RS232 + 1 × RS485 + 1 × DI +1 × DO
WiFi 5, IEEE802.11ac
Wide operational temperature range
Wall-mount design and optional Din-Rail kits
Linux based OS & SW customization
Compact and ruggedized design

ICR-1642W-CN-A

ICR-1600, CHINA, 2× ETH, 1× RS232/RS485, WiFi, Antennas included

LTE Cat.4 with 3G/2G fallback
2 × SIM for redundancy
2 × Ethernet 10/100/1000 Mbps
1 × RS232 + 1 × RS485 + 1 × DI +1 × DO
WiFi 5, IEEE802.11ac
Wide operational temperature range
Wall-mount design and optional Din-Rail kits
Linux based OS & SW customization
Compact and ruggedized design

LWIT-RTR1642GEUA

ICR-1600, EMEA, 2× ETH, 1× RS232/RS485, GNSS, Antennas included

LTE Cat.4 with 3G/2G fallback
2 × SIM for redundancy
2 × Ethernet 10/100/1000 Mbps
1 × RS232 + 1 × RS485 + 1 × DI +1 × DO
GNSS receiver
Wide operational temperature range
Wall-mount design and optional Din-Rail kits
Linux based OS & SW customization
Compact and ruggedized design

LWIT-RTR1645EUA

ICR-1600, EMEA, 5× ETH, Antennas includedd

Industrial ruggedized design
LTE Cat.4 with 3G/2G fallback
2× SIM for redundancy
5× Ethernet 10/100/1000 Mbps
Wide operational temperature range
Optional wall-mount and DIN-rail kits
Linux based OS & SW customization

ICR-1645-CN-A

ICR-1600, CHINA, 5× ETH, Antennas included

Industrial ruggedized design
LTE Cat.4 with 3G/2G fallback
2× SIM for redundancy
5× Ethernet 10/100/1000 Mbps
Wide operational temperature range
Optional wall-mount and DIN-rail kits
Linux based OS & SW customization

LWIT-RTR1645WEUA

ICR-1600, EMEA, 5× ETH, 1× RS232/RS485, WiFi, Antennas included

Industrial ruggedized design
LTE Cat.4 with 3G/2G fallback
2× SIM for redundancy
5× Ethernet 10/100/1000 Mbps
1× WiFi 5, IEEE802.11ac
Wide operational temperature range
Optional wall-mount and DIN-rail kits
Linux based OS & SW customization

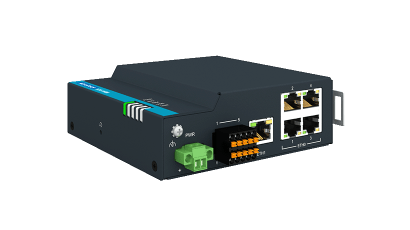

ICR-1645W-CN-A

ICR-1600, CHINA, 5× ETH, 1× RS232/RS485, WiFi, Antennas included

Industrial ruggedized design
LTE Cat.4 with 3G/2G fallback
2× SIM for redundancy
5× Ethernet 10/100/1000 Mbps
1× WiFi 5, IEEE802.11ac
Wide operational temperature range
Optional wall-mount and DIN-rail kits
Linux based OS & SW customization

LWIT-RTR1645GEUA

ICR-1600, EMEA, 5× ETH, 1× RS232/RS485, GNSS, Antennas included

Industrial ruggedized design
LTE Cat.4 with 3G/2G fallback
2× SIM for redundancy
5× Ethernet 10/100/1000 Mbps
Wide operational temperature range
GNSS receiver
Linux based OS & SW customization
Optional wall-mount and DIN-rail kits

ICR-1645G-CN-A

ICR-1600, CHINA, 5× ETH, 1× RS232/RS485, GNSS, Antennas included

Industrial ruggedized design
LTE Cat.4 with 3G/2G fallback
2× SIM for redundancy
5× Ethernet 10/100/1000 Mbps
GNSS receiver
Wide operational temperature range
Optional wall-mount and DIN-rail kits
Linux based OS & SW customization

LWIT-RTR1601G

ICR-1600, EMEA/LATAM/APAC, 2x Ethernet, GPS, Metal, Without Accessories

LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM
LTE B1, B3, B7, B8, B20
DIN and Wall mount options
2x ETH
GNSS receiver
Operating temp. –30 °C to +70 °C, Power input : 5-24VDC (DC Jack), accessory with EU type power adapter
Certifications: CE
Diagnostics, VPN support, Firewall, WAN failover

LWIT-RTR1601W

ICR-1600, EMEA/LATAM/APAC, 2x Ethernet, Wi-Fi, Metal, Without Accessories

LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM
LTE B1, B3, B7, B8, B20
DIN and Wall mount options
2x ETH
WiFi – 802.11n, AP, Multi SSID, WDS
Operating temp. –30 °C to +70 °C, Power input : 5-18VDC (DC Jack), accessory with EU type power adapter
Certifications: CE
Diagnostics, VPN support, Firewall, WAN failover
