Iot Gateways & Edge gateway
Products
ICR-4434
ICR-4400, GLOBAL, 5x Ethernet, 1x RS232, 1x RS485, CAN, SFP, USB, SD, Without Accessories
- LTE Advanced Cat.12 Global Cellular Connectivity
- Download Speed Up to 600 Mbps
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range (-40 to +75 °C)
ICR-4434W
ICR-4400, GLOBAL, 5x Ethernet, 1x RS232, 1x RS485, CAN, Wi-Fi, SFP, USB, SD, Without Accessories
- LTE Advanced Cat.12 Global Cellular Connectivity
- Download Speed Up to 600 Mbps
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet, Dual-Band WiFi
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range (-40 to +75 °C)
ICR-4434W1
ICR-4400, GLOBAL, 5× ETH, 1× RS232, 1× RS485, CAN, WIFI, SFP, USB, SD, No ACC
- LTE Advanced Cat.12 Global Cellular Connectivity
- Download Speed Up to 600 Mbps
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet, Dual-Band WiFi
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range (-40 to +60 °C)

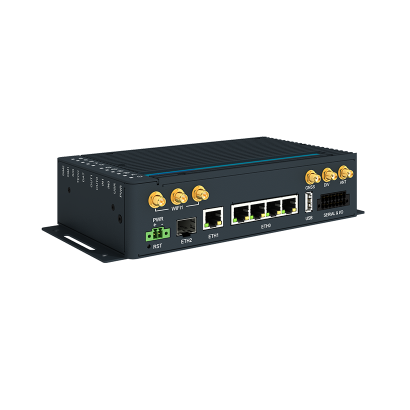

ICR-4434W1S
ICR-4434W1S ICR-4400, GLOBAL, 5× ETH, 1× RS232, 1× RS485, CAN, PoE PSE+, WIFI, SFP, USB, SD, No ACC
- LTE Advanced Cat.12 Global Cellular Connectivity
- Download Speed Up to 600 Mbps
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet, 4× PoE+ PSE (PoE use is limited – see the ICR-4434 user manual), Dual-Band WiFi
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range (-40 to +60 °C)
ICR-4461
ICR-4400, GLOBAL, NAM, 5x Ethernet, 1x RS232, 1x RS485, CAN, SFP, USB, SD, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range
ICR-4461S
ICR-4400, GLOBAL, NAM, 5x Ethernet, 1x RS232, 1x RS485, CAN, PoE PSE+, SFP, USB, SD, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet, 4× PoE+ PSE (PoE use is limited – see the ICR-4461 user manual)
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range
ICR-4461W3
ICR-4400, GLOBAL, NAM, 5x Ethernet, 1x RS232, 1x RS485, CAN, Wi-Fi, SFP, USB, SD, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet, Dual-Band WiFi
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range
ICR-4461W3S
ICR-4400, GLOBAL, NAM, 5x Ethernet, 1x RS232, 1x RS485, CAN, PoE PSE+, Wi-Fi, SFP, USB, SD, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, eSIM Ready, TPM 2.0
- 5× Gigabit Ethernet, 4× PoE+ PSE (PoE use is limited – see the ICR-4453 user manual), Dual-Band WiFi
- SFP Connector for SFP modules up to 10 Gbps
- RS232, RS485, CAN BUS, GNSS Receiver, 2× DI, 2× DO, USB Host, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range

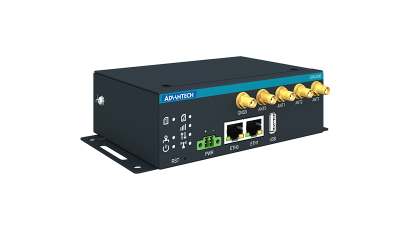

ICR-4171
ICR-4100, GLOBAL, 2× ETH, USB, SD, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, TPM 2.0
- 2× Gigabit Ethernet
- USB Host 3.0
- GNSS Receiver, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range

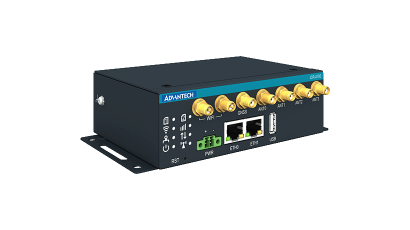

ICR-4171W
ICR-4100, GLOBAL, 2× ETH, USB, SD, WIFI, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, TPM 2.0
- 2× Gigabit Ethernet
- USB Host 3.0
- Tri-Band WiFi 6, GNSS Receiver, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range

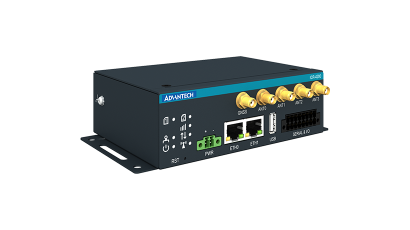

ICR-4271
ICR-4200, GLOBAL, 2× ETH, 2× RS232/RS485, USB, SD, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, TPM 2.0
- 2× Gigabit Ethernet
- 2× Serial RS232/RS485, 4× DI, 2× DO
- USB Host 3.0, GNSS Receiver, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range

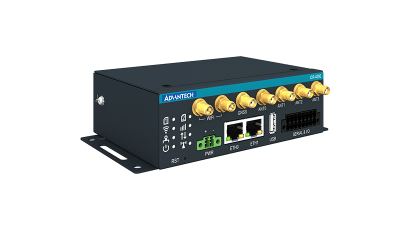

ICR-4271W
ICR-4200, GLOBAL, 2× ETH, 2× RS232/RS485, USB, SD, WIFI, Without Accessories
- 5G NR Cellular Connectivity, Sub-6GHz
- 3GPP Release 16, Support both NSA and SA modes
- Quad-core CPU with 1 GB RAM
- 2× SIM, TPM 2.0
- 2× Gigabit Ethernet
- 2× Serial RS232/RS485, 4× DI, 2× DO
- Tri-Band WiFi 6, USB Host 3.0, GNSS Receiver, Micro SD Card
- Robust metal cover with wall and DIN mount options
- Wide operational temperature range

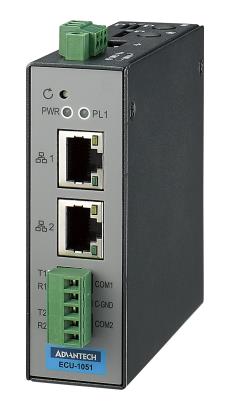

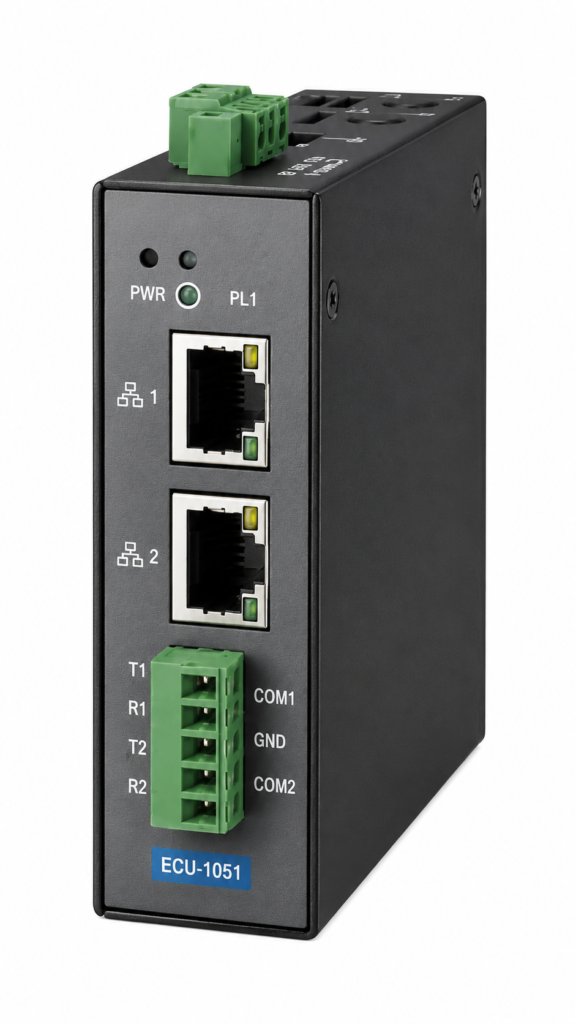

ECU-1051
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 2 COM
- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Support web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C
- No RED Certification
ECU-1251
2LAN 4COM Modbus/BACnet/101/104/DNP3/PLC/Azure/AWS IoT Gateway
- TI Cortex A8, 800MHz
- DDR3L 256MB RAM
- 1 x Micro-SD Slot
- 4 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- RED Compliance
- Operation Temperature -40~70°C

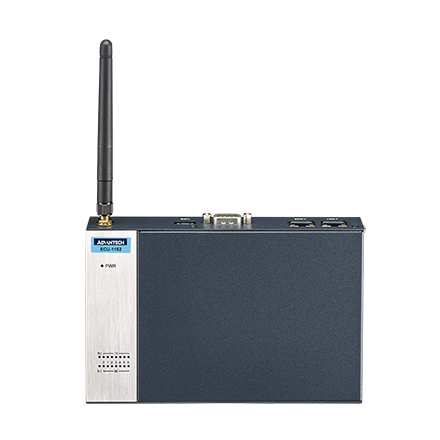

ECU-1152
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 6 COM
- TI Cortex A8 800MHz CPU
- DDR3L512MB RAM
- 1GB Micro-SD card for system storage
- 1 x Micro-SD Slot
- 6 x RS-232/485 isolated serial ports
- 2 x 10/100 Base-T Ethernet ports
- 1 x Mini-PCIe for WIFI/3G/GPRS/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-101/104 protocol
- Support Data logger on SD card
- No RED Certification
- Operation Temperature -40~70°C

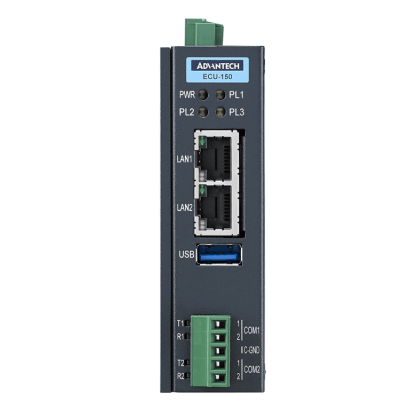

ECU-150
Compact High-Performance IoT Gateway with NXP i.MX8M Quad Core Cortex A53, 2 LAN, 2 COM & 1 USB
- NXP i.MX8M Quad Core Cortex A53 1.3G CPU
- DDR4 2GB RAM, 16GB eMMC for system storage
- 2 x RS-232/485 isolated serial ports
- 2 x 10/100/1000 Ethernet ports
- 1 x Mini-PCIe for WIFI/Cellular/4G
- Support web service for remotely on-line monitoring
- Support SD card & on-line firmware update
- Support Modbus, IEC-60870-5, DNP3.0, OPC-UA, BACNet protocol （ECU-150-12A1&ECU-150-12A1U need container EdgeLink）
- Support Data logger on SD card
ADAM-3600
8AI/ 8DI/ 4DO/ 4-Slot IO Modbus /BACnet /101/104 /DNP3/PLC/Azure/AWS IoT RTU
- Domain Focused Onboard IO -8AI / 8DI / 4DO
- High I/O Flexibility with 4-slot I/O Expansion
- Modbus & DNP3 Protocol
- IEC 61131-3&C Programming Language
- Operation Temperature -40~70°C
- Multiple wireless options for Zigbee/ Wi-Fi/ 3G/ 4G/ GPRS
- High Performance CPU Cortex A8 600MHz
- Low Power DDR3L 256MB RAM
- Embedded Real-time Linux Kernel

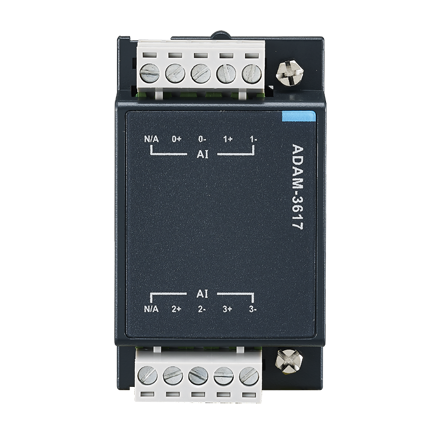

ADAM-3617
4-ch Analog Input Module
- Accuracy: ±0.1% or better of FSR (Voltage) ±0.2% or better of FSR (Current)
- Resolution: 16-bit
- Voltage/Current: ±10V, ±2.5V, 0 ~ 20mA, Range 4 ~ 20mA
- Isolation Voltage: 2000 V DC
- Sampling rate: 10 sample/second (total)
- Burn-out detection: Yes (Current-only)
- Input Impedance: 0.1 MΩ
- Input Type: Voltage, Current
- Channels: 4, differential
ADAM-3651
8-ch Digital Input Module
- Rated Input : >5mA @ 12 VDC
- Current : >10mA @ 24 VDC
- Input Filter : Programmable, Default 3ms
- Pulse Input Frequency : 150Hz
- Over Voltage Protection : +40 VDC
- -40 ~ 70°C operating temperature
- Supports Sink (Wet Contact) / Counter input type

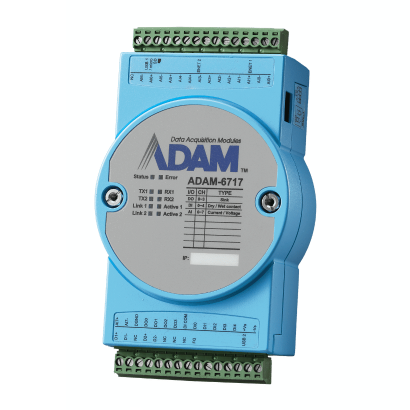

ADAM-6717
8AI/5DI/4DO Intelligent I/O Gateway
- Linux Open Platform
- 8ch analog input (current or voltage)/5ch digital input/4ch digital output
- Program by linux C API, Node-RED (graphic programming environment)
- Cloud/Database access, edge data analysis and logic control, data visualization by dashboard
- Interfaces: x2 RS-485, x2 Ethernet port, x1 USB Type-A 2.0, x1 USB Micro-B 2.0
ADAM-6750
12DI/12DO Intelligent I/O Gateway
- Linux Open Platform
- 12ch digital input(counter)/12ch digital output(pulse output)
- Programming: linux C API, Node-RED (graphic programming environment)
- Cloud/Database access ,edge data analysis and logic control, data visualization by dashboard
- Interfaces: RS-485×2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0

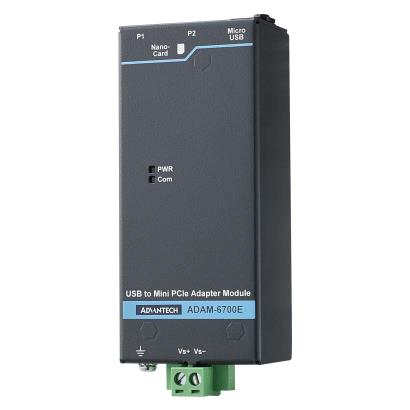

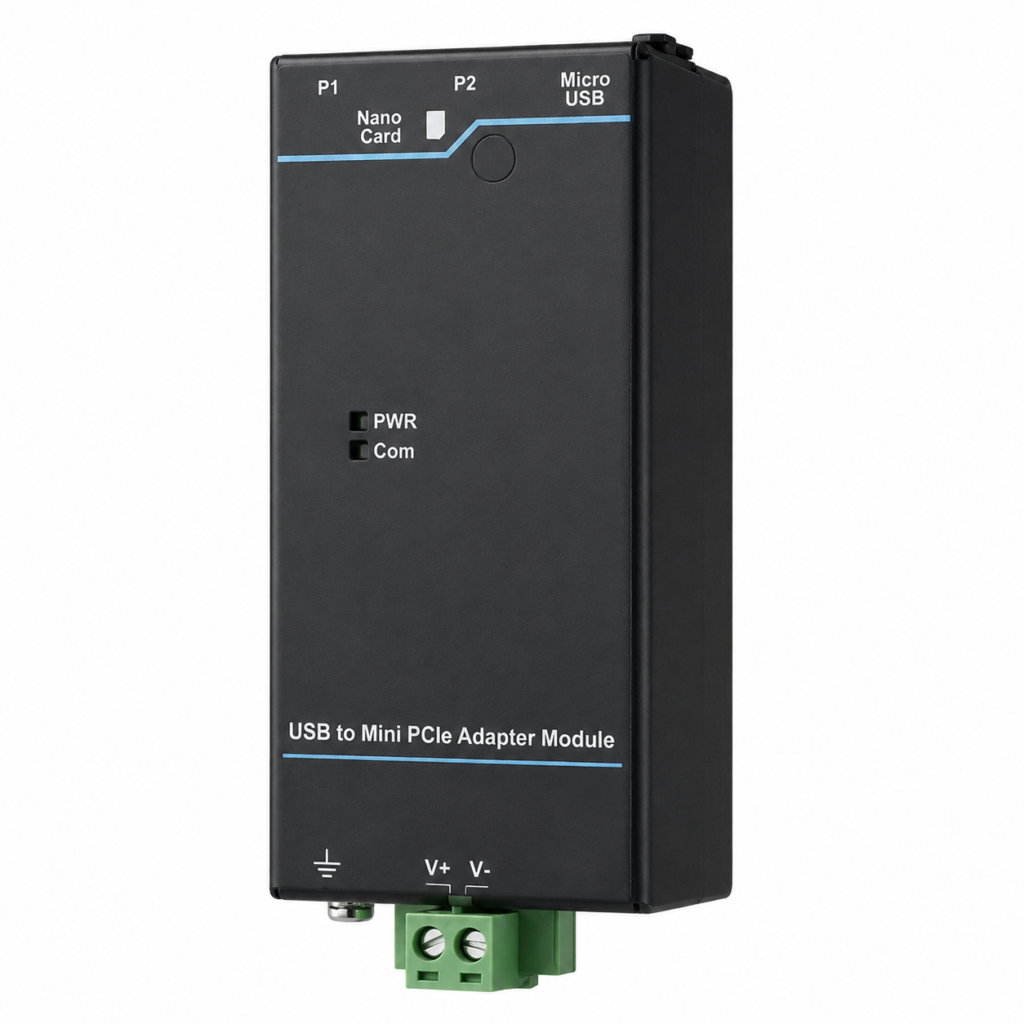

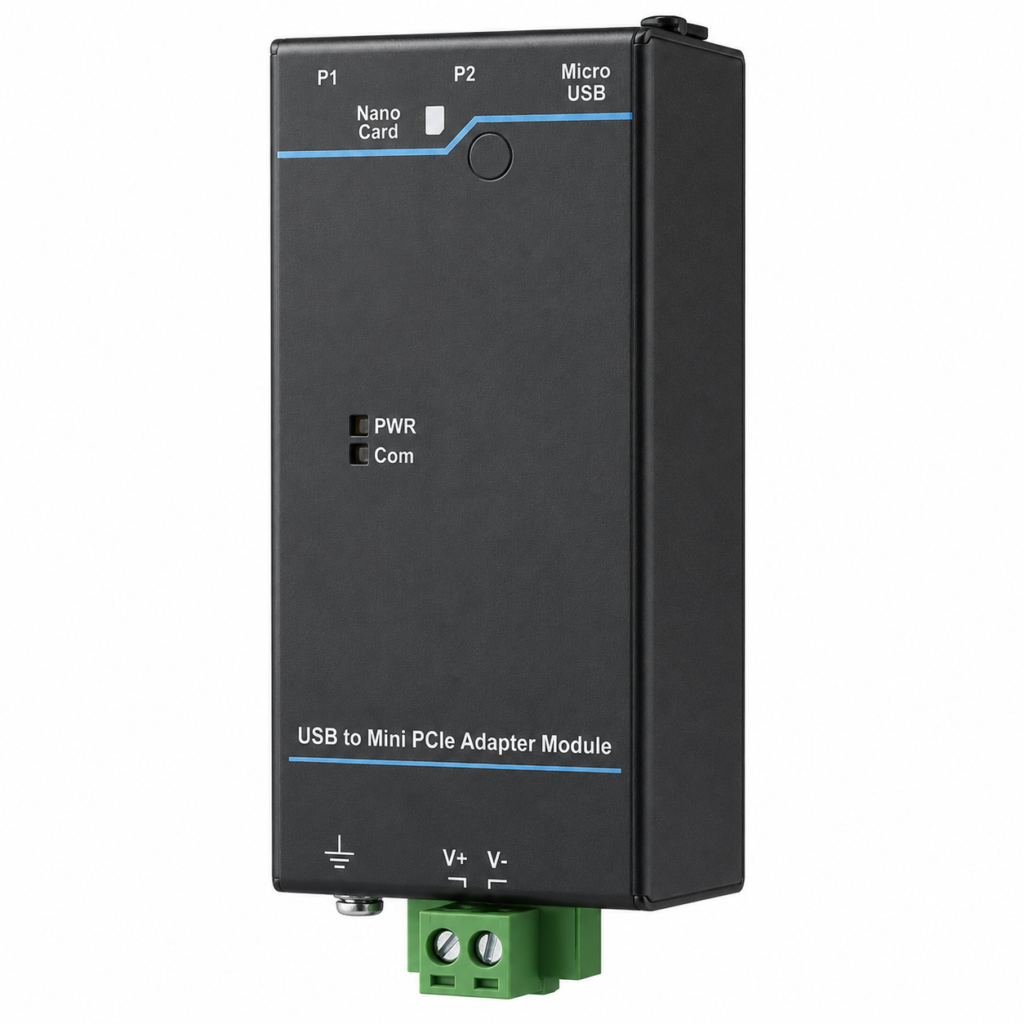

ADAM-6700E
USB to MiniPCIe Adaptor Module
- Enable more options through MiniPCIe modules
- Support Power Reversal Protection
- Wall-Mount and DIN-Rail mounting
- Connect with ADAM-6700 series via USB cable

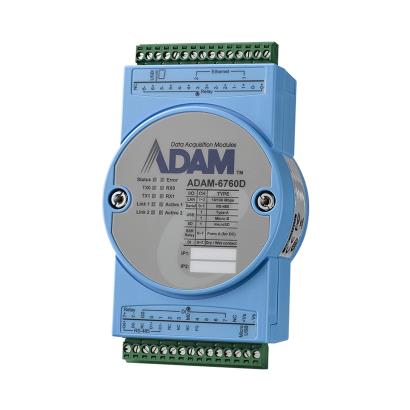

ADAM-6760D
8SSR Relay/8 DI Intelligent I/O Gateway
- Linux open platform
- 8-channel SSR relay/ 8-channel digital input
- Programming: Linux C API, Node-RED (graphic programming environment)
- Cloud / database access, edge data analysis and logic control, and data visualization by dashboard
- Interfaces: RS-485×2, Ethernet port x 2 ,1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
ESRP-PCS-ADAM6717
8AI/5DI/4DO Intelligent I/O Gateway with WISE-EdgeLink
- 8ch analog input (current or voltage)/ 5ch digital input/ 4ch digital output
- An intelligent gateway uploading data from edge to cloud
- Data publishing service by OPC-UA, Modbus, DNP3, BACnet, MQTT & LwM2M
- Data backup by storing data to database and FTP server
- Interfaces: RS-485×2, Ethernet port x 2, 1 x USB Type-A 2.0, 1 x USB Micro-B 2.0
- WISE-EdgeLink software supports multiple PLC protocol drivers for data conversion

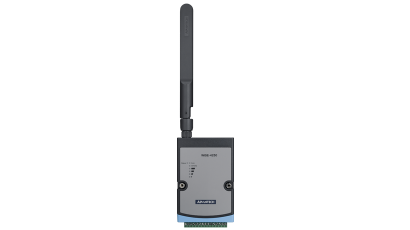

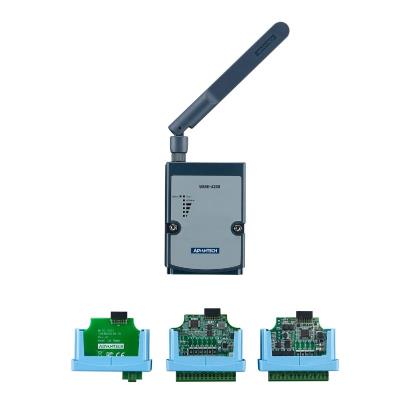

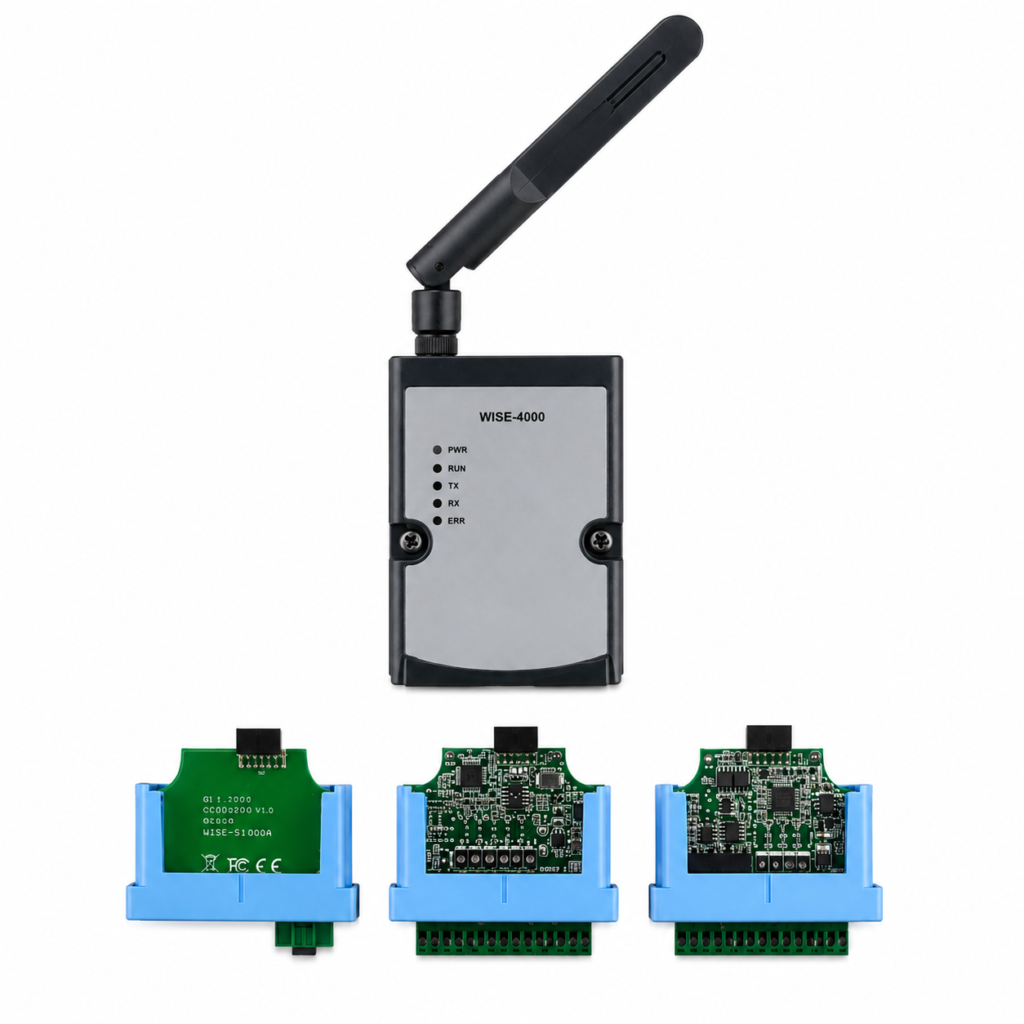

WISE-4250
2.4G/5G Wi-Fi IoT Wireless I/O Module
- Supports IEEE 802.11 ac (2.4/5GHz) for stable wireless connectivity
- Supports interchangeable I/O and Sensor modules (additional purchase required) and is easily configured with web UI
- Supports MQTT and RESTful API protocols for uploading data to cloud service platforms such as AWS, Azure, SCADA, and WebAccess
- Smart Roaming enables seamless AP switching
- Supports WPA3 / TLS 1.3 encryption and X.509 certificate authentication for secure data transmission
- With UDP-based AES-128 encrypted wireless P2P, abnormal inputs can automatically trigger up to 16 WISE modules in the field
- Stores 10,000+ data points locally with SNTP/RTC time sync and Watchdog timer auto connection recovery
WISE-4250-S214
2.4/5GHz Wi-Fi I/O Module with 4AI/4DI
- Integrates 4 analog inputs (AI) and 4 digital inputs (DI) in a compact design
- Analog Inputs support Burn-out Detection (4~20mA only) to prevent system failures and unplanned downtime
- Digital inputs support High/Low value alarms, Latch, and Momentary Alarm modes for flexible event monitoring
- Supports 3kHz high-speed counter input (32-bit with 1-bit overflow) on digital input channels
- Complies with IEEE 802.11ac (2.4GHz/5GHz) dual-band Wi-Fi for stable and high-speed wireless communication
- Ensures secure data communication with WPA3/TLS 1.3 encryption and X.509 certificate authentication
- Enables seamless cloud integration via MQTT and RESTful APIs, supporting direct data uploads to AWS, Azure, SCADA, and WebAccess platforms

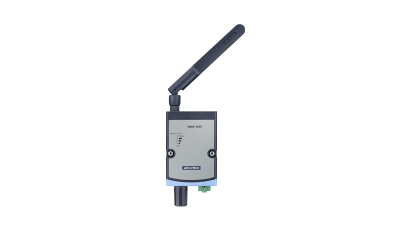

WISE-4250-S232
2.4/5GHz Wi-Fi Temperature and Humidity Sensing Module
- Supports IEEE 802.11 ac (2.4GHz/5GHz) for stable and high-speed wireless connectivity
- Ensures secure data transmission with WPA3/TLS 1.3 encryption and X.509 certificate authentication
- Provides seamless cloud integration, supporting MQTT and RESTful API to upload temperature and humidity data to cloud platforms such as AWS, Azure, SCADA, and WebAccess
- Offers comprehensive protocol support, including MQTT, Modbus/TCP, SNTP, TCP/IP, HTTPS, RESTful, UDP, and DHCP
- Features a built-in watchdog timer to maintain continuous operation and automatically recover from disconnections
- With UDP-based AES-128 encrypted wireless P2P, abnormal inputs can automatically trigger up to 16 WISE modules in the field
WISE-4250-S250
2.4/5GHz Wi-Fi I/O Module with 6DI/2DO/RS-485
- Equipped with 6 digital inputs and 2 digital outputs and 1 RS-485 in a compact, high-density I/O design
- Supports both dry and wet contact input modes for broad sensor compatibility
- Fail Safe Value (FSV) ensures outputs default to a safe state during communication loss
- Supports IEEE 802.11ac (2.4GHz/5GHz) for stable and high-speed wireless connectivity
- Ensures secure data transmission with WPA3/TLS 1.3 encryption and X.509 certificate authentication
- Stores 10,000+ data points locally with SNTP/RTC time sync and Watchdog timer auto connection recovery
- Offers comprehensive protocol support, including MQTT, Modbus/TCP, SNTP, TCP/IP, HTTPS, RESTful, UDP, and DHCP

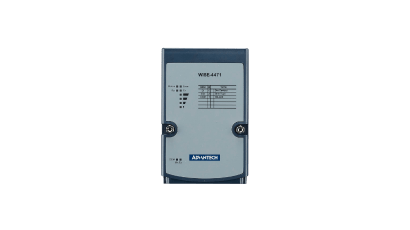

WISE-4471
NB-IoT/LTE-M IoT Wireless Modular I/O
- Global coverage of NB-IoT and LTE-M frequency bands
- 3GPP release 13 Cat. NB1/Cat. M1
- Application-ready I/O combination with optional M12 Connectors I/O
- Support MQTT, CoAP & LwM2M protocol
- Supports direct cloud service for IoT integration

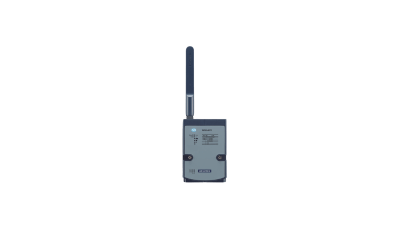

WISE-4671
Advanced NB-IoT/LTE-M IoT Wireless Modular I/O
- Global coverage of NB-IoT and LTE-M band w/ external detachable antenna
- 3GPP release 13 Cat. NB1/Cat. M1
- Application-ready I/O combination with optional M12 connectors, IP65
- Support MQTT, CoAP & LwM2M protocol with direct cloud service
- GNSS & solar panel rechargeable battery inside

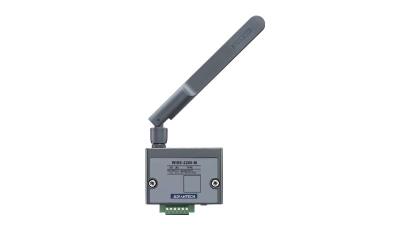

WISE-2200-M
LoRaWAN® Enabled 1RS-485 I/O Module
- LoRaWAN® wireless technology with Less interference with high penetration rate capability
- Support Modbus/RTU communication protocol
- Support max. 128 address and 30 rule settings
- Compact design, suitable for plug and play applications
- Industrial design concept for different kinds of environment

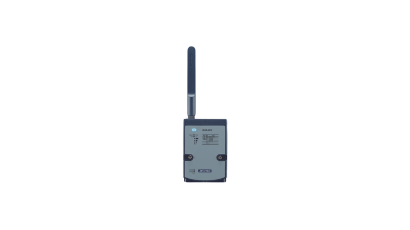

WISE-4610
LoRaWAN IoT Wireless Modular I/O
- Support LoRaWAN wireless frequency with external detachable antenna
- Application-ready I/O combination with optional M12 connectors, IP65
- Wide voltage power input with 10 ~ 50VDC
- Longer communication range
- Better penetration through concrete and steel
WISE-4610P
Advanced LoRaWAN® Enabled IoT Wireless Modular I/O
- Support LoRaWAN® wireless frequency with external detachable antenna
- Application-ready I/O combination with optional M12 connectors, IP65
- GNSS & solar panel rechargeable battery inside
- Longer communication range & better penetration through concrete & steel
- Wide voltage power input with 10 ~ 50VDC

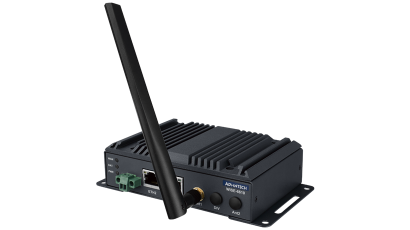

WISE-6610 V2
LoRaWAN® Enabled Gateway
- Latest Semtech SX1302 gateway chipset solution, it doubles the packet processing speed
- Embedded Network Server for LoRaWAN® for both private and public system application
- Compatible with Multiple Network Servers like Actility, The Things Network, Chirpstack, AWS, etc
- Supports Modbus/TCP, MQTT, BacNet, OPCUA protocols
- Build-in Node-Red, LoRaWAN network server and Edgelink software packages
- Global LoRaWAN® Frequency Plans
- DIN rail and wall mounting design
- Backhaul 4G (by additional adapter)

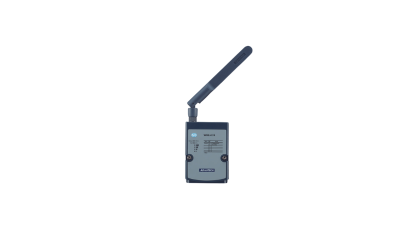

WISE-4210
Proprietary LPWAN IoT Wireless Modular I/O
- Proprietary LPWAN (Sub-G) Wireless technology
- Battery power for 5 years with 3 x 3.6V AA batteries
- Application-ready I/O combination with modularization design
- Support MQTT & Modbus/TCP protocol
- Up to 5 km communication range in open space
WISE-4210-AP
Proprietary LPWAN Wireless to Ethernet AP
- Proprietary LPWAN (Sub-G) wireless technology
- Support MQTT & Modbus/TCP protocol
- Wireless to ethernet access point
- Longer communication range than 2.4GHz
- Better penetration through concrete and steel than 2.4GHz

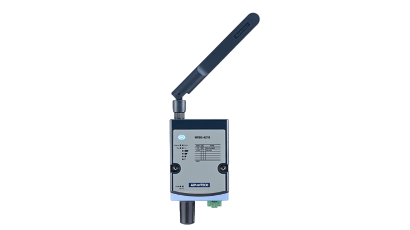

WISE-4210-S232
Proprietary LPWAN IoT Wireless Module w/ Temperature & Humidity Sensor
- Proprietary LPWAN (Sub-G) wireless technology
- Provides seamless cloud integration, supporting MQTT and RESTful API to upload temperature and humidity data to cloud platforms such as AWS, Azure, SCADA, and WebAccess
- Offers comprehensive protocol support, including MQTT, Modbus/TCP, SNTP, TCP/IP, HTTPS, RESTful, UDP, and DHCP
- Battery power for 5 years with 3 x 3.6V AA batteries
- Up to 5 km communication range in open space

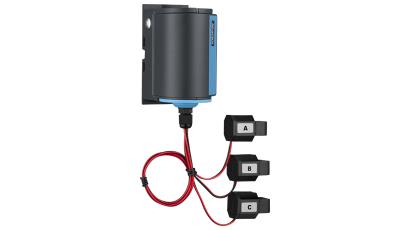

EVA-2210
3-Phase Current Meter with 3 x 75A Clamp-On CT
- LoRaWAN® wireless connectivity
- 3 x 75A Clamp-On CT
- Battery life up till 3.5 years@25 °C, 60 mins interval setting
- Easy to deploy and maintain

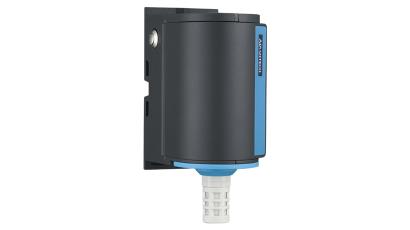

EVA-2310
LoRaWAN® Enabled Temperature and Humidity Sensor
- LoRaWAN® wireless connectivity
- -20 °C to 55 °C temperature detection range
- 0%RH to 90%RH humidity detection range
- Battery life up till 5 years@25 °C, 15 mins interval setting
- Easy to deploy and maintain

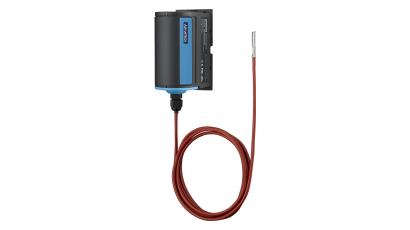

EVA-2311
LoRaWAN® Enabled Temperature PT1000 Round Head Probe Sensor
- LoRaWAN® wireless connectivity
- -70°C to 200°C temperature detection range
- IP67 for PT1000 Round Head Probe Sensor
- Battery life up till 5 years@25°C, 15mins interval setting
- Easy to deploy and maintain

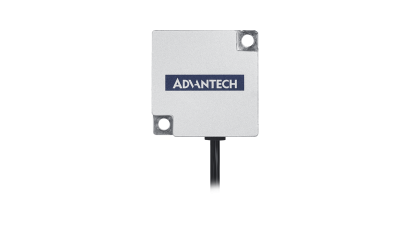

WISE-2461
6KHz@3-axis Smart Vibration Sensor
- RS-485 Serial communication through Modbus/RTU protocols
- 6KHz@3-axis frequency detection range
- Velocity RMS, acceleration RMS, acceleration Peak, displacement, several measurement vibration data
- Support maxl 6 customize detection ranges between 5 ~ 6,000Hz in each axis
- ISO 10816/20816 compliant
- Supports wide temperature -40 ~ 85°C
- IP68 rating, internally potted design for outdoor applications

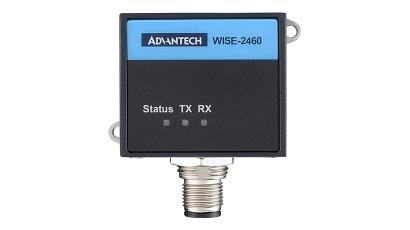

WISE-2460
10KHz@1-axis Smart Vibration Sensor
- RS-485 Serial communication through Modbus/RTU protocols
- 10KHz@1-axis frequency detection range
- Velocity RMS, acceleration RMS, acceleration Peak, displacement, several measurement vibration data
- ISO 10816 and ISO 20816 compliant
- Supports wide temperature -20 ~ 105°C
- IP68 enclosure design

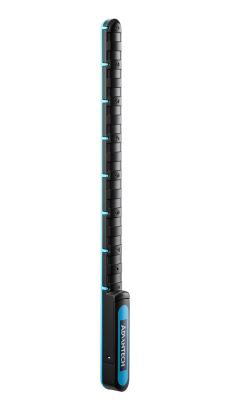

WISE-S100
Intelligent Stack Light Monitoring Sensor
- One product for all scenarios
- Fits a variety of stack-type light towers
- 8 light sensors for fast flexible installation
- No need to stop the machinery while deployment
- Remote intelligent OEE solution by pairing with WISE-4000 series wireless I/O module
- Low power consumption for WISE-4000 LPWAN series
Drive Your Digital Transformation
From smart factories to AI-powered automation, LANWARE Catalyst helps businesses unlock new levels of efficiency and innovation.
Let’s build the future of industry together.
