AIR-021
Edge AI Inference system powered by NVIDIA® Jetson Orin™ NX/Nano and Super mode
- Compact and high performance AI box\
- NVIDIA® Jetson Orin NX 16GB/8GB and Orin Nano 8GB Modules
- 12~24V wide power and -20~50 °C (NX) -10~50°C (NANO) supported
- Multiple IO ports: LAN, DIO, COM, CANBus, USB 3.2 Type A
- Versatile expansions with M.2 B key, M.2 E key, SD support
- Support Linux Ubuntu 22.04 LTS and JetPack SDK 6.2 above
- Support Edge AI SDK / Inference Kit：Designed for performance-optimized, multi-model edge AI applications.
AIR-020
Edge AI Inference system powered by NVIDIA® Jetson Nano/TX2 NX/ Xavier NX in a palm-sized design
- Compact and performance AI box design
- NVIDIA Jetson Nano/ TX2 NX/ Xavier NX embedded
- Wide operating temperature range
- Multiple IO ports: LAN, DIO, COM, USB 3.1 and USB type C
- Additional M.2 2280 expansion storage
- Edge AI Suite AI Utility Support for pre-trained models and deep learning
- Linux BSP supported
- WISE-DeviceOn supported for quick AI deployment at scale
AIR-030
Edge AI Inference system powered by NVIDIA® Jetson AGX Orin™ and 3 x 2.5GbE Lan
- Compact and high performance AI box
- NVIDIA® Jetson AGX Orin™ 64GB and 32GB Modules
- 9~36V wide power and -10~60 °C wide temp. supported
- Multiple IO ports: LAN, DIO, COM, CANBus, USB 3.2 and USB type C
- Versatile expansions with M.2 B key, M.2 E key, SD, PCIe x16(optional) support
- Support Linux Ubuntu 20.04 LTS and JetPack SDK 5.1 and above
- IEC 61000-6-4 Heavy Industry Certificate
- Certified by AWS Greengrass
AIR-055
Edge AI Inference system powered by Qualcomm Dragonwing™ IQ-9075 processor up to 100 TOPS
- Compact and high performance Edge AI box at least 100 TOPS AI computing
- Qualcomm ® DragonWing IQ9075 processor built-in
- 12~24V wide power and -20~60 °C wide temp. supported
- Multiple IO ports: 2 x 2.5G LAN, DIO, 3x COM, 2x CAN, 2x USB 3.2 Type A and 2x USB type C
- Support various expansions 1x M.2 2280(NVME), 1x M.2 2230(WIFI/BT) and 1x M.2 3052(LTE/5G)
AIR-075
Edge AI Inference system powered by NVIDIA® Jetson Thor™
- Powered by NVIDIA Jetson T5000™ and Jetson T4000™, delivering up to 2070 TFLOPS FP4 inference performance.
- 19~36V wide power and -10~40 °C wide temp. supported
- Multiple I/O Expansion: 2x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x M.2 B Key (5G/LTE), 1x M.2 E Key (Wi-Fi) and 2x M.2 M Key(NVME)
- Supports 4x 10GbE with Base-T connectors
- Support Advantech Edge AI SDK / Inference Kit / WEDA

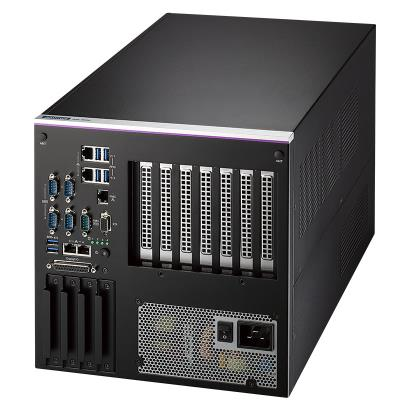

AIR-500D
Edge AI HPC system powered by Intel® Xeon® D-1700 Series processors with support for up to 4 PCIe slots
- Intel® Xeon® D-1700 series processor
- 4x DDR4 SO-DIMM sockets support ECC/nonECC memory up to 128GB
- Support Dual PCIe x16 350W High performance GPU cards
- Rich storage with 4x 2.5” SATAIII SSD RAID 0/1 support
- Versatile expansions with PCIe x1/x4/x16, M.2 B key and E key support
- Built-in 1200W power supply
- IPMI 2.0-compliant management with reliability and security enhancements
- WISE-DeviceOn supported for quick AI deployment at scale
AIR-101
Edge AI Inference System powered by Intel Atom® E3940 QC SoC and two Intel MA2485 VPUs
- Intel Atom E3940 Quad Core SoC turbo burst up to 1.8 GHz
- Intel® Movidius™ Myriad™ X VPU MA2485 x 2 Built-in
- SATA Slim 64G SSD x1 Built-in
- 204-pin SO-DIMM DDR3L 8GB memory x 1 built-in
- DIN-Rail AI system with essential I/O ports on front-side bezel
- M.2 2230 for WIFI or optional VEGA-320 module
- 12V ~ 28V wide-range power input
- Integrated with Advantech Edge AI Suite and support Intel OpenVINO
- No RED certification

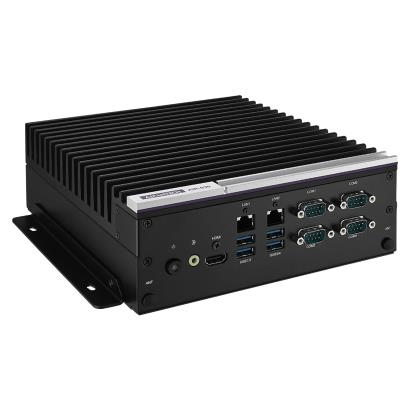

AIR-120
Edge AI inference system powered by Intel® Atom® processor with Hailo-8 AI acceleration module
- Intel® Atom™ x7433RE, Core™ i3-N305, Processor N97
- Empowered by Hailo-8 M.2 AI module up to 26 TOPS
- Vertical I/O: 1 x HDMI, 1 x DP, 2x LAN, 4x USB, 2x COM
- Flexible expansion with 3x M.2: B key 2280, E key 2230, B key 3052
- -20~60°C wide temperature and 12-24V wide voltage support
- Hailo AI Dev. Toolkit supported

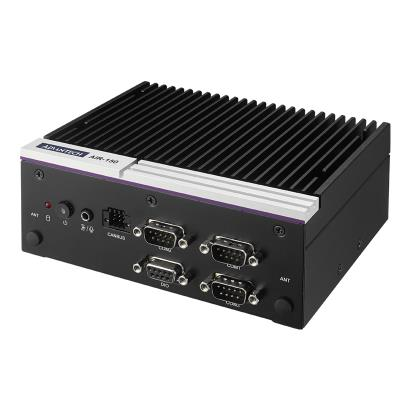

AIR-150
Edge AI inference system powered by 13th Gen Intel® Core™ i3/i5 processors with Hailo-8 AI acceleration module
- Intel 13th gen. Core i3/i5 up to 14 Watt with 10 Cores
- Empowered by Hailo-8 M.2 AI module up to 26 TOPS
- Compact Fanless 156 x 112 x 60mm dimensions
- Dual 4K lockable HDMI 2.0b, 4096×2160 resolution
- Vertical I/O: 3x COM/1x DIO/2x CANBus/2x LAN/4x USB
- Rich AI toolkits for runtime integration and model deployment
- Flexible expansion with 3x M.2: M key 2280, E key 2230, B key 3042
- -20~60°C wide temperature and 12-24V wide voltage support

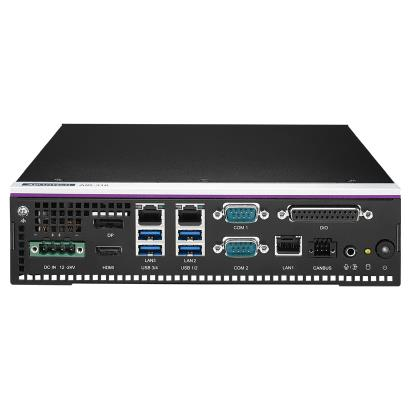

AIR-310
Edge AI inference system powered by 12th/13th/14th Gen Intel® Core™ processors with MXM GPU support
- Support Intel ® 12th/13th/14th Gen. Core™ i3/i5/i7/i9 processor up to 65W
- DDR5 SO-DIMM memory support up to 64 GB
- Dual display: HDMI + DP
- Support MXM 3.1 Type A GPU card up to 60W
- Support 2 x 2.5GbE, 16-bit DIO, 2 x CANBus, TPM 2.0
- Qualified for Edge AI SDK

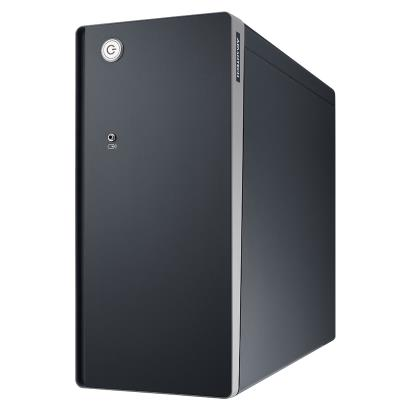

AIR-410
Edge AI HPC powered by AMD Ryzen 8040 series processor with 39TOPS supporting one 3-slot GPU
- Ryzen 8040 processor up to 54W with 39TOPS AI computing (CPU+iGPU+iNPU)
- Dual channel memory up to 96GB DDR5 5600MT/s
- 1x PCIe x16 Slot to support 550W GPU, Power supply 850W built-in
- Edge AI SDK AI toolkit, OS Windows 11 LTSC & Ubuntu 24.04 LTS compatible

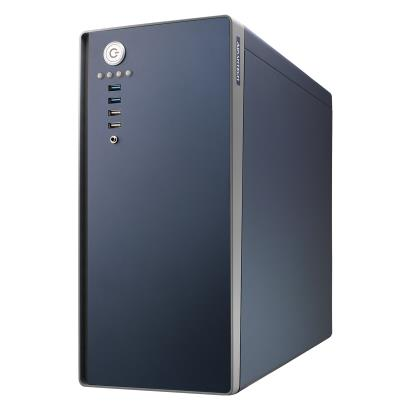

AIR-420
Edge AI HPC powered by AMD EPYC & Ryzen processors and NVIDIA Qualified RTX™ PRO 6000 Blackwell Max-Q WS Edition
- AMD Ryzen 7000/9000 & EYPC 4005 series processor provides up to 16 cores
- NVIDIA Qualified with RTX™ PRO 6000 Blackwell Max-Q WS Edition graphic card
- Compact 28.6L chassis with dual 3.9-Slot Graphics
- Smart fan algorithm for optimal noise control
- Redundant power supply for unmatched reliability
- Total 4 PCIe slots, 2 for AI cards and 2 for add-on cards
- Support GenAI Studio: No-code GUI to simplify LLM training
- Support Edge AI SDK: Accelerate inference performance evaluation

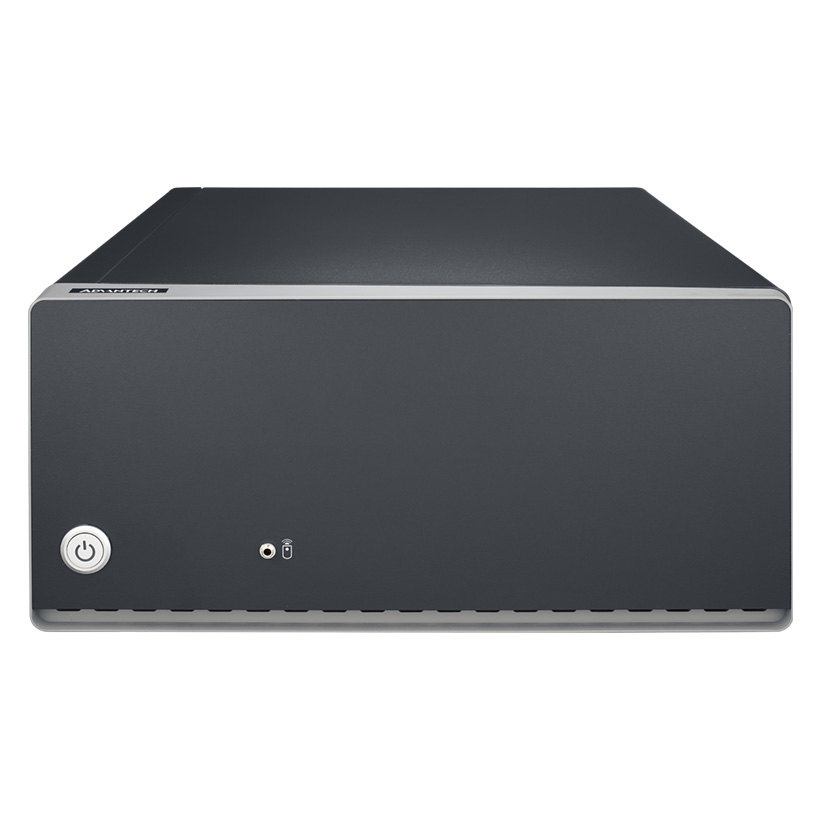

AIR-510
4U Edge AI HPC powered by Intel® Raptor Lake S CPU and NVIDIA Certified with RTX™ 6000 Ada Generation
- Intel® Raptor Lake S Platform to support Intel® Core™ 14th Gen processors
- NVIDIA Certified with RTX™ 6000 Ada Generation graphic card
- 4U height with 3 PCIe expansion slots
- Up-to 8x 2.5″ SATA SSD
- Windows 10/ 11 IoT, and Ubuntu OS compatible
AIR-520
4U Edge AI HPC powered by AMD EPYC 7003 series processor and NVIDIA Certified with RTX™ 6000 Ada Generation
- Server grade perofmance powered by AMD EPYC 7003 processor
- NVIDIA Certified with RTX™ 6000 Ada Generation graphic card
- Up-to 768GB DDR4 3200 DRAM
- Four PCIe x16 Expansion slots
- Integrated 1200W PSU for total 700W graphic card TDP
AIR-530
AIR-530 is based on NVIDIA IGX platform which provides 200GbE Ethernet bandwidth and 32 TFLPOS AI computing power with NVIDIA safety design.
- Edge AI workstation with NVIDIA IGX Platform
- NVIDIA Qualified with RTX A6000 graphic card
- Plentiful IO Ports for Various Applications
AIR-520 (Generative AI Ready)
AIR-520 Edge AI HPC integrates the SQ ai100 AI SSDs, NVIDIA RTX GPU cards, Edge AI SDK, and NVAIE to realize a off-the-shelf Gen AI solution
- Affordable Budget – 1/10 traditional GenAI training server cost but same effectiveness.
- Ready to Deploy – Llama3-70B and more than 10 models supported. Free dataset, fine-tuning, monitoring, validation, inference GUI.
- Unlimited Boundaries – Innovative hybrid GenAI solution: fine-tuning and inference on the same server.
- Secure Owned Know-How – Local fine-tuning without internet. 100% protect your valuable know-how and stay outstanding.
AIR-540
Edge AI HPC Powered by AMD EPYC 8004 series, support 4pcs 2.5-slot GPUs
- Powered by the energy-efficient AMD EPYC™ 8004 Series Processor.
- 4pcs 2.5-slot GPUs for high-density computing.
- 6x DDR5 ECC-REG RDIMMs for superior reliability and performance.
- CXL Board support, ready for future memory expansion and resource pooling.
- Optimized System noise control to fulfill variant Edge AI application environments.
- Equipped with IPMI support and TPM 2.0 for secure remote management.
AIR-427A
Edge AI system powered by NVIDIA® IGX Thor™
- Powered by NVIDIA IGX T7000™, delivering up to 2070 TFLOPS (FP4-Sparse) inference performance
- Powered by the NVIDIA Blackwell architecture iGPU and an optional NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition to deliver up to 5,581 TFLOPS (FP4-Sparse)
- Functional safety & system reliability
- Multiple I/O Expansion: 2x PCIe Gen 5, 1 x M.2 M Key (NVME) 1x M.2 B Key (5G/LTE), and 1x M.2 E Key (WiFi).
- Supports 2x 200 GbE with QSFP28
- Supports CAN, COM, GPIO with Header
- Enterprise / medical-grade lifecycle & validation
