Industrial MotherBoards

PICMG 1.3 Full-Size SBC Backplanes

PCE-5B06
- 6-slot BP for 6-slot chassis
- Segments: 1
- One CPU card slot
- PCIe slot: One x16; Four x1
- PCI-X slot: N/A
- PCI slot: N/A
- Compatible with IPC chassis: IPC-6606
Learn More
PICMG 1.3 Full-Size SBC Backplanes

PCE-5B07
- 7-slot BP for 8-slot chassis
- Segments: 1
- One CPU card slot
- PCIe slot: One x16; One x4
- PCI-X slot: N/A
- PCI slot: Four 32/33
- Compatible with IPC chassis: IPC-6608 and IPC-6908
Learn More
PICMG 1.3 Full-Size SBC Backplanes

PCE-5B08
- 8-slot BP for 8-slot chassis
- Segments: 1
- One CPU card slot
- PCIe slot: One x16; Four x1
- PCI-X slot: N/A
- PCI slot: Two 32/33
- Compatible with IPC chassis: IPC-6608 and IPC-6908
Learn More
PICMG 1.3 Full-Size SBC Backplanes

PCE-5B09
- 9-slot BP for 10-slot wall-mount/ 14-slot rack-mount chassis
- segment:1
- one CPU card slot
- PCIe slot: one x16, three x4
- PCI-X slot:N/A
- PCI slot: Four 32 bit/ 33MHz
- Compatible with IPC-7132, ACP-4360/4320/4010/4000, IPC-630/610/ 611(F,H,L)
Learn More
PICMG 1.3 Full-Size SBC Backplanes

PCE-5B10
- 10-slot BP for 14-slot chassis
- Segments: 1
- One CPU card slot
- PCIe slot: One x16; Four x1
- PCI-X slot: N/A
- PCI slot: Four 32/33
- Compatible with IPC chassis: IPC-610, IPC-611, IPC-630, ACP-4000, ACP-4320, and ACP-4360, ACP-4010
Learn More
PICMG 1.3 Full-Size SBC Backplanes

PCE-5B13
- 13-slot BP for 14-slot chassis
- Segments: 1
- One CPU card slot
- PCIe slot: One x16; Three x1
- PCI-X slot: N/A
- PCI slot: Eight 32/33
- Compatible with IPC chassis: IPC-610, IPC-611, IPC-630,ACP-4000, ACP-4010, ACP-4320, and ACP-4360
Learn More
PICMG 1.3 Full-Size SBC Backplanes

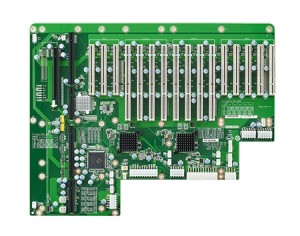

PCE-5B18
- 18-slot BP for 20-slot chassis
- Segments: 1
- One CPU card slot
- PCIe slot: One X16
- PCI-X slot: Eight 64/100
- PCI slot: Eight 32/33
- Compatible with IPC chassis: IPC-622/623, ACP-5360, and ACP-7360
Learn More
PICMG 1.3 Full-Size SBC Backplanes

PCE-5B19
- Segments: 1
- One CPU card slot
- PCIe slot: Seventeen X16 and One X4
- PCI-X slot: N/A
- PCI slot: N/A
- Compatible with IPC chassis: IPC-622/623
Learn More
PICMG 1.3 Full-Size SBC Backplanes

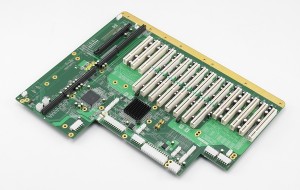

PCE-5B18-88A1E
- 18-slot BP for 20-slot chassis
- Segments: 1
- One CPU card slot
- PCIe slot: One x16
- PCI-X slot: Eight 64/66
- PCI slot: Eight 32/33
- Compatible with IPC chassis: IPC-623, ACP-5360 and ACP-7360
Learn More
PICMG 1.3 Full-Size SBC Backplanes

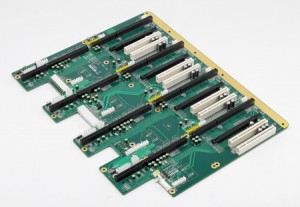

PCE-5B16Q
- 16-slot BP for 20-slot chassis
- Segments: 4
- Each segment:
- -- One CPU card slot
- -- PCIe slot: One x16
- -- PCI-X slot: N/A
- -- PCI slot: Two 32/33
- -- Compatible with IPC chassis: IPC-623, ACP-5360, ACP-7360
Learn More
