PICMG 1.3 Full-Size SBC Backplanes

PICMG 1.3 Full-Size SBC Backplanes

More Views

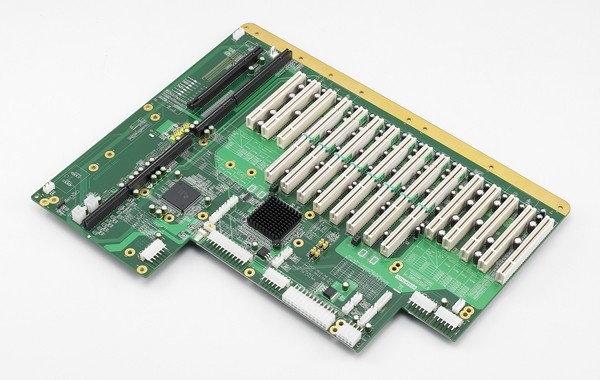

PICMG 1.3 Full-Size SBC Backplanes
Part Nubber: PCE-5B18-88A1E
₹0.00

  • 18-slot BP for 20-slot chassis

  • Segments: 1

  • One CPU card slot

  • PCIe slot: One x16

  • PCI-X slot: Eight 64/66

  • PCI slot: Eight 32/33

  • Compatible with IPC chassis: IPC-623, ACP-5360 and ACP-7360

OR
Description

Details

18-slot BP for 20-slot chassis
Additional Information

Additional Information

Features PICMIG 1.3 slots: PCE-7B19-88 supports PCE-7xxx CPU boards PCE-5B18-88 supports PCE-5xxx CPU boards • PCIe slots: PCE-7B19-88 supports two PCIe x8 slots PCE-5B18-88 supports one PCIe x16 slot • 64-bit PCI-X slots: Eight 64 Bit / 66 MHz PCI-X slots • 32-bit PCI slots: Eight 32 Bit / 33 MHz PCI slots Bridge Chip: Pericom PI7C8150BMAE • USB (2.0) ports: Four Universal Serial Bus ports as pin headers
Packing List • One 2 Ports USB Cable p/n: 1700002204 • PCE-5B18-88B1E (PCE-7B19-88B1E) Startup Manual • M4*6*0.7 Round Screws (15pcs) p/n: 1939000410 • 2 Year Quality Warranty Card p/n: 2190000902
Ordering Information PCE-5B18-88A1E
Diamensions : 327.66 x 417 mm
