PICMG 1.3 Full-Size SBC Backplanes

PICMG 1.3 Full-Size SBC Backplanes

More Views

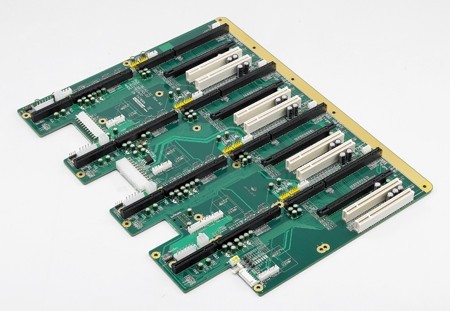

PICMG 1.3 Full-Size SBC Backplanes
Part Nubber: PCE-5B16Q
₹0.00

  • 16-slot BP for 20-slot chassis

  • Segments: 4

  • Each segment:

  • -- One CPU card slot

  • -- PCIe slot: One x16

  • -- PCI-X slot: N/A

  • -- PCI slot: Two 32/33

  • -- Compatible with IPC chassis: IPC-623, ACP-5360, ACP-7360

OR
Description

Details

16-slot BP for 20-slot chassis
Additional Information

Additional Information

Features ï PICMIG 1.3 slots: PCE-7B16Q-02 supports PCE-7xxx CPU boards PCE-5B16Q-02 supports PCE-5xxx CPU boards ï PCIe slots: PCE-7B16Q-02 Supports one PCIe x8 slot PCE-5B16Q-02 Supports one PCIe x16 slot ï 32-bit PCI: Two 32 Bit / 33Mhz PCI slots ï USB (2.0) support: Four Universal Serial Bus ports to Backplane
Packing List ï 4 Four-port USB cables p/n: 1700002314 ï PCE-7B16Q-02A1E (PCE5B16Q-02A1E) User Manual 1st Ed. p/n: 20027B1600 ï M4*6*0.7 Round Screws [23 pcs.] p/n: 1939000410 ï 2 years quality warranty card p/n: 2190000902
Ordering Information PCE-5B16Q
Diamensions : 327.66 x 417 mm
