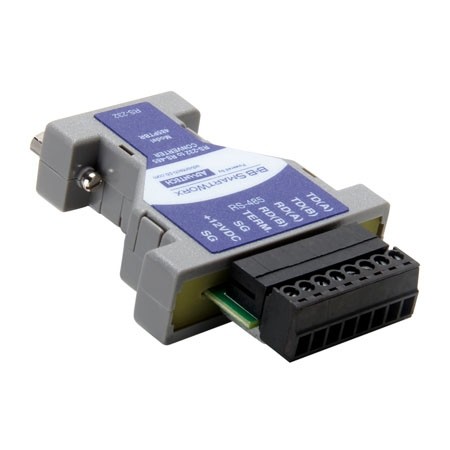

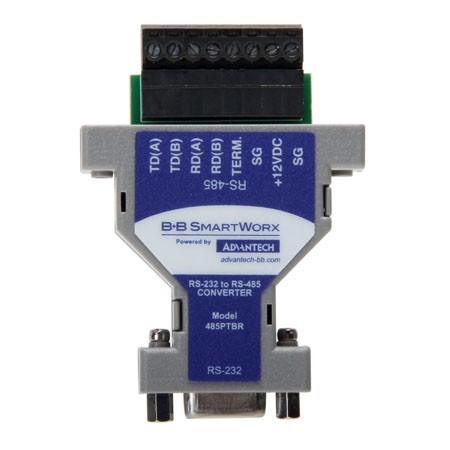

Model BB-485PTBR converts unbalanced RS-232 signals to balanced, full or half-duplex RS-485 signals. RS-485 is an enhanced version of the RS-422 Standard allowing multiple drivers and receivers on a two-wire system. The RS-232 port has a female DB9 connector with pins 2(RD), 3(TD), and 5(SG) supported. Pins 7(RTS) and 8(CTS) are tied together. Also pins 6(DSR), 1(CD), and 4(DTR) are tied together, but not passed through the converter. The RS-485 port has an 8-position pluggable terminal block connector. Model BB-485PTBR supports baud rates from 300 to 115.2K. 12VDC power supply required (not included, sold separately). - Additional Information
-
Additional Information
Features Converts RS-232 signals to RS-485 signals • Extends data communication up to 1219 meters (4000 ft) • Multi-drop capability - up to 32 receivers per driver • Pluggable terminal block for easy wiring • Data rate: 300bps to 115.2 kbps • Quick, easy inline installation • 12 VDC power supply required (not included, sold separately)
Packing List BB-SMi6-12-V-ST – Power Supply, 12 VDC 6 Watt, Stripped and Tinned, International AC Input, International AC Blades (power supply required) Ordering Information BB-485PTBR Diamensions No - Reviews
-
