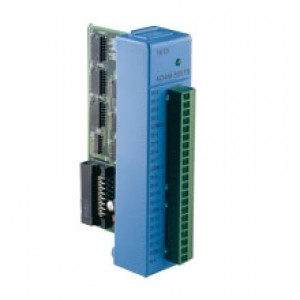

Industrial Remote I/O Modules
-
- 50 Vmax Input Voltage
- 2500 Vdc Optical Isolation
- 70 Vdc Over Voltage Protection
- 16-channel
Learn More
-

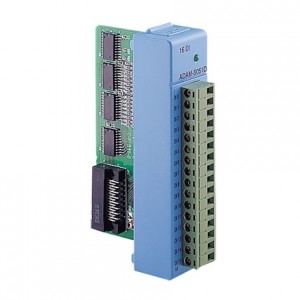

- Input voltage: 30 Vmax
- Circuit type: Pull-Up current: 0.5 mA (Source Type)
- LED indicator: Yes
- Power consumption: 0.84 W(max.)
- Channels: 16
Learn More
-

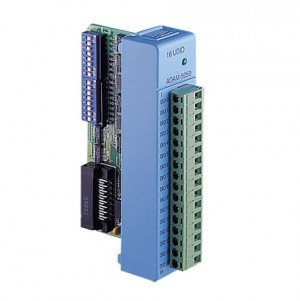

- Digital input: Support Dry/Wet Contact
- Digital output: Open Collector to 30 V, 450 mW max. load
- I/O Type: bit-wise selectable by DIP switch
- Power consumption: 0.35 W (typical); 1.2 W (max)
- Channels: 16
Learn More
-

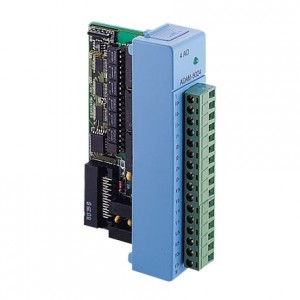

- Accuracy: ±0.1% of FSR for current output
- Effective resolution: 12-bit
- Isolation voltage: 3000 VDC
- Output range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~10 V
- Resolution: ±0.015% of FSR
- Channels: 4
- Output type: mA, V
Learn More
-

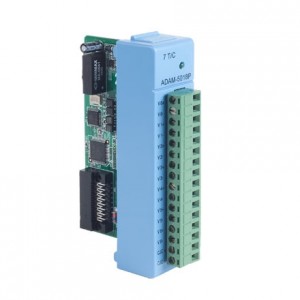

- Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
- Sampling Rate: 10 samples/sec. (total)
- High Common Mode: 2000 VDC
- Isolation Voltage: 3,000 VDC
- Fault and Overvoltage Protection: Withstands over voltage up to ±35 V
- CMR @ 50/60 Hz: 92 dB min
- Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input)
- Built-in TVS/ESD Protection
Learn More
-

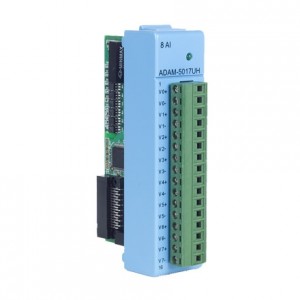

- Accuracy: ±0.1% or better
- Effective resolution: 12-bit
- Input range: ±10 V, +0 ~ +10 V, +0 ~ +20 mA, +4 ~ +20 mA
- Isolation voltage: 3000 VDC
- Sampling rate: 50K sample per sec (8 Channels)
- Fault and overvoltage protection: withstands overvoltage up to ±35 V
- lnput type: mV, V, mA
- Channels: 8 differential
Learn More
-

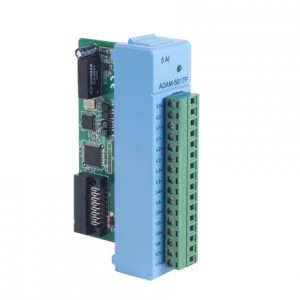

- Accuracy: Voltage mode : ±0.1% or better, Current mode : ±0.2% or better
- High Common Mode: 200 VDC
- Over Voltage Protection: ±60 VDC
- Built-in TVS/ESD Protection
- Isolation Voltage: 3,000 VDC
- CMR @ 50/60 Hz: 92 dB min.
- Channels: 8 differential and independent configuration channels
- Input Impedance: Voltage: 800kΩ, Current: 120Ω (Build-in 120Ω. register for Current Input) for Curren
Learn More
-

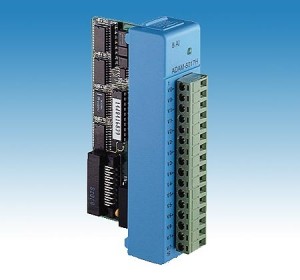

- Accuracy: ±0.1% or better
- Effective resolution: 12-bit plus sign bit
- 1000 Hz bandwidth
- High sampling rate:ADAM-5000/485&5000E: 100 samples/sec, ADAM-5510 & ADAM-5511: 8000 samples/sec max
- 3000VDC Isolation voltage protection
- Distinct range settings allowed on each channel
- Input type: mV, V, mA
Learn More
-

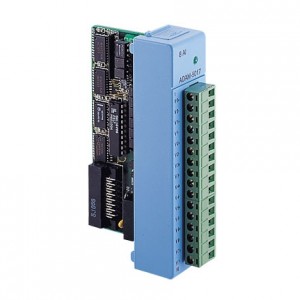

- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input range: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V; ±20 mA
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Fault and overvoltage protection: withstands overvoltage up to ±35 V
- lnput type: mV, V, mA
- Channels: 8 differential
Learn More
-

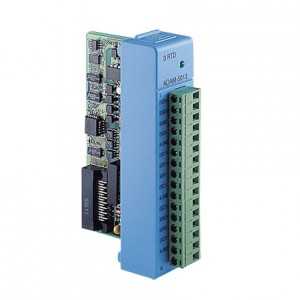

- Accuracy: ±0.1% or better
- Effective resolution: 16-bit
- Input connections: 2, 3 or 4 wire
- Sampling rate: 10 samples/sec. (total)
- Isolation voltage: 3000 VDC
- Input type: PT100 or Ni RTD
- Channels: 3
Learn More
