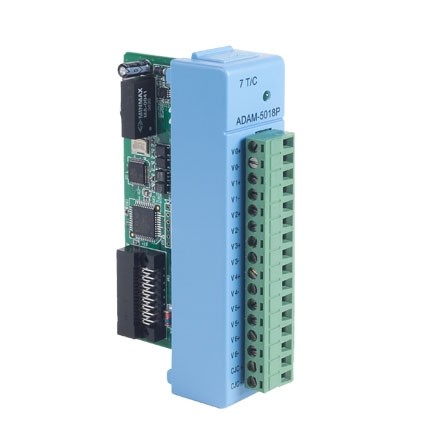

ADAM-5018P is a 16-bit, 7-channel thermocouple input module that features programmable independent input ranges on each channel. It accepts millivolt inputs (±15 mV, ±50 mV, ±100 mV, ±500 mV), voltage inputs (±1V, ±2.5 V), current input (±20 mA, 4~20 mA, requires 120 ohms resistor) and thermocouple input (J, K, T, R, S, E, B). The module forwards the data to the host computer in engineering units (mV, V, mA or temperature °C). It also accepts high common mode up to 200 Vdc and has many protections built in, like over voltage, isolation voltage, filter and TVS/ESD function. An external CJC on the plug-in terminal is designed for accurate temperature measurement. - Additional Information
-
Additional Information
Features - Accuracy Bandwidth: ±0.1% or better, 13.1 Hz @ 50 Hz, 15.72 Hz @ 60 Hz
- Sampling Rate: 10 samples/sec. (total)
- High Common Mode: 2000 VDC
- Isolation Voltage: 3,000 VDC
- Fault and Overvoltage Protection: Withstands over voltage up to ±35 V
- CMR @ 50/60 Hz: 92 dB min
- Input Impedance: 20 MΩ. (Build-in 120 Ω Register for Current Input)
- Built-in TVS/ESD Protection
- Filter function: Yes
- Channels: 7 differential with Independent Input Range
Packing List No Ordering Information - ADAM-5018P 7-ch Thermo. Input Module w/ Ind. Input Range
