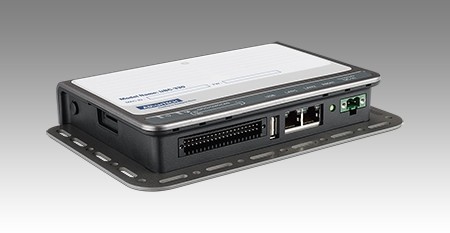

UBC-330 is a RISC complete box which integrated TI Sitara AM3352 Cortex-A8 processor. It offers 2x gigabit ethernets, 6x serials, 4x GPI and 4x GPO. For the industrial application, the UART & GPIO feature a rugged ESD and isolation protection and it can protect system from unstable power damage. Otherwise, UBC-330 also has multiple power input and operation... More - Additional Information
-
Additional Information
Features TI Sitara™ AM3352 Cortex®-A8 1.0 GHz processor 512 MB of DDR3-800 and 4 GB of eMMC NAND Flash onboard 4 GPI and 4 GPO ports (with ESD and isolation protection) 5x serial port w/ESD protection (Contact 4KV / Air 8KV) 2 Gigabit Ethernet ports Supports Linux BSP 0 ~ 55 °C operating temperature Equipped with hardware watchdog time for system protection Packing List UBC-330NS-JLA1E UBC-330 AM3352 1 GHz 512 MB computing box 1652006830-01 20x2P 2.54mm 180D 0156-1A40 Ordering Information UBC-330NS-JLA1E Diamensions 117 x 166 x 30 mm - Reviews
-
