- Description
-
Details

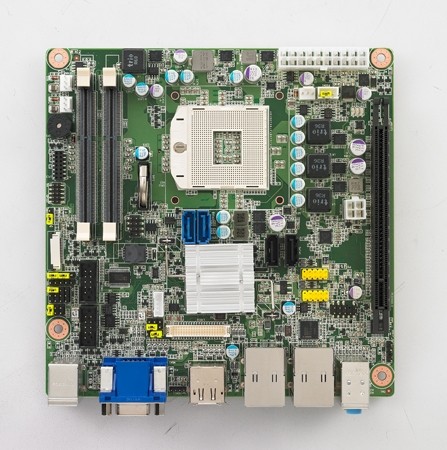

3rd Gen Intel® Core™ i7/i5/i3/Celeron uFC-PGA988 Mini-ITX with QM77, 2 DP/HDMI/LVDS/CRT, 2 COM, Dual GbE LAN, PCIe x16
- Additional Information
-
Additional Information
Features - Supports Intel® Core™ i7/i5/i3 mobile processor (PGA) with Intel QM77 chipset
- Two 204-pin SO-DIMM up to 16 GB DDR3 1333/1600 MHz SDRAM
- Supports triple display of 2 DP, HDMI, LVDS, CRT
- Supports PCIe x16 (Gen 3) and mini PCIe
- Supports Intel vPro, AMT 8.0, PECI 3.0, Software RAID 0,1,5,10, TPM 1.2 (optional)
- Supports iManager, SUSIAccess and Embedded Software APIs
Packing List 1700003194
SATA HDD cable
2
1703150102
SATA power cable
2
1960051292N001
CPU cooler
1
1960019192T100
I/O port bracket
1
20060273010
Startup manual
1
Ordering Information AIMB-273G2-00A1E
QM77
Diamensions 170 mm x 170 mm (6.69" x 6.69") - Reviews
-
