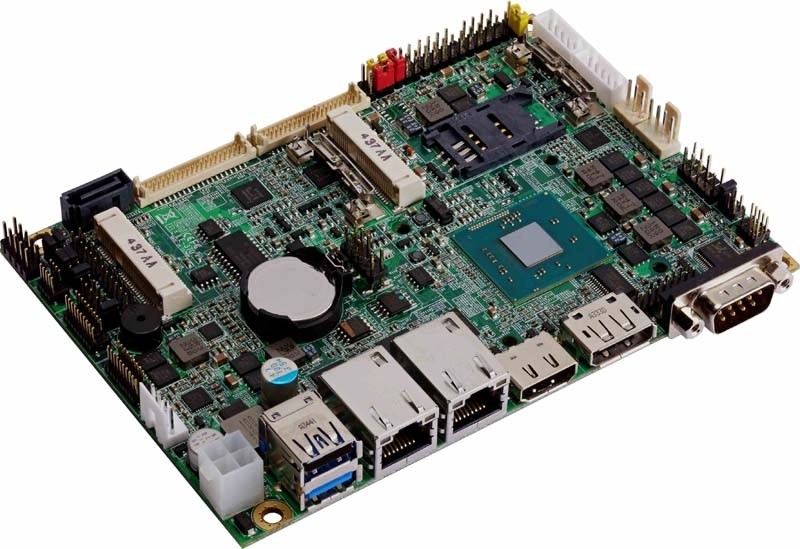

Intel® Processor J1900/N2930/E3845 , 3.5 inch Miniboard

CPU: Intel® Celeron™ J1900 / N2930 and Atom™ E3845 Mobile in the FCBGA1170  socket

Memory: 1 x DDR3L (support 1.35V) 1066/1333 SO-DIMM up to 8GB

Integrated Graphics: Intel® Clear Video integrated HD Graphics Technology

Display port interface: Onboard Display port connector

HDMI interface: Onboard HDMI connector (HDMI and LVDS1 can’t be enabled simultaneously)

LVDS interface: Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

Display port interface: Onboard Display port connector (Display port and LVDS2 can’t be enabled simultaneously)

LAN Interface: 2 x Intel® I210 Gigabit LAN

Serial ATA: 1 x serial ATA interface with 300MB/s(3Gb/s) transfer rate

Audio: Realtek ALC262 High Definition Audio Codec

Internal I/O Port:  1 x PS2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio connector, 1 x SMBUS connector, 1 x CRT, 2 x LVDS, 1 x LPC, 4 x USB 2.0 and 1 x SATAII

External I/O Port: 1 x RS232, 1 x HDMI port, 1 x Display port, 2 x RJ45 LAN ports, 1 x USB 3.0, 1 x USB 2.0.

Extended interface:  Two PCI-E Mini card slots, 1 x CFast Card socket, one SIM socket.

GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Power Requirement: 6~30V 4-pin full range DC Input.
