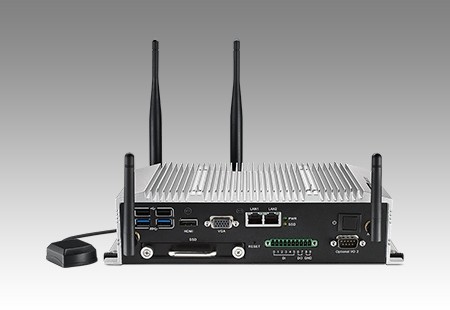

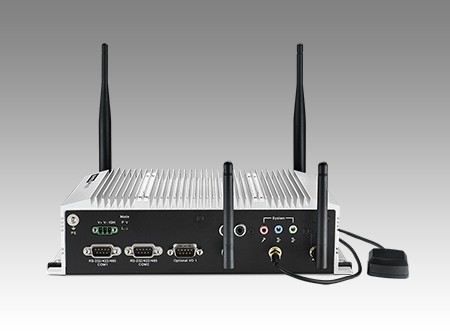

In-Vehicle PoE Port Fanless Box PC

In-Vehicle PoE Port Fanless Box PC

More Views

In-Vehicle PoE Port Fanless Box PC
Part Nubber: ARK-2121V
₹70,000.00

  • Intel® Atom E3825 Dual Core 1.33 GHz & E3845 Quad Core 1.91 GHz SoC

  • 4 PoE Ports to Support Mainstream IP Cameras

  • Isolated COM ports and DIO

  • Diversity Communication Abilities, ex. WWAN, WLAN

  • Built-in GPS and G-Sensor for GIS application

  • Intelligent Vehicle Power Ignition

  • 9 ~ 36 VDC* Wide Power Input w/isolation

  • 1 x Removable 2.5" drive bay

  • Supports iManager, SUSIAccess and Embedded Software APIs

  • Up to -40 ~ 70° C wide temperature support (by project)

OR
Description

Details

In-Vehicle NVR w/4 PoE Ports Intel® Atom E3825 / Atom E3845 SoC Fanless Box PC
Additional Information

Additional Information

Features



ƒ Intel® Atom E3825 Dual Core 1.33 GHz & E3845 Quad Core 1.91 GHz SoCƒ

4 PoE Ports to Support Mainstream IP Cameras
ƒ Isolated COM ports and DIO
ƒ Diversity Communication Abilities, ex. WWAN, WLAN

ƒ Built-in GPS and G-Sensor for GIS applicationƒ

 Intelligent Vehicle Power Ignition
ƒ 9 ~ 36 VDC* Wide Power Input w/isolation
ƒ 1 x Removable 2.5" drive bay

ƒ Supports iManager, SUSIAccess and Embedded Software APIsƒ

Up to -40 ~ 70° C wide temperature support (by project)
Packing List

1 x ARK-2121 Unit
1 x Driver/Utility CD/Manual
1 x User Manual (Simplified Chinese)

3-pole phoenix power block 3.81mm
1 x GPS antenna Active with 5M SMA cable

10-Pin DIO plug in block
Ordering Information

ARK-2121V-S3A1E -

ARK-2121V-S9A1E -
Diamensions 264.5 x 69.2 x 133.0 mm
