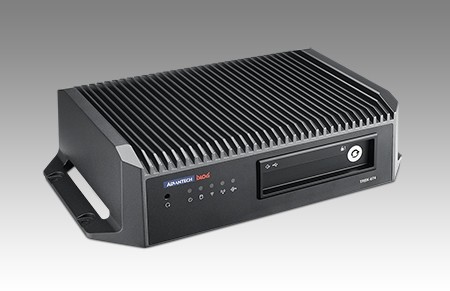

In-Vehicle Surveillance Solution

In-Vehicle Surveillance Solution

More Views

In-Vehicle Surveillance Solution
Part Nubber: TREK-674
₹0.00

  • Intel® Atom™ E3827 SOC

  • Easily paired with TREK in-vehicle smart displays (TREK-303/306) via a single-cable connection

  • Embedded Stretch S7 video encoder supports up to 8 analog video inputs and 4 audio inputs

  • Accessible external SSD tray with key-lock protection

  • Vehicle diagnostics interface with configurable CAN (J1939, OBD-II/ISO 15765) and J1708 (J1587) protocols

  • Built-in GNSS, WLAN, Bluetooth, and WWAN (with dual SIM cards) modules

  • Intelligent vehicle power management system supports ignition on/off/delay functions, wake-up event control, and system health monitoring and diagnostics

  • Wide working temperature range (-30° C ~ 70° C), supports 12/24V vehicle power (ISO 7637-2) and shock and vibration tolerant (MIL-STD-810G and 5M3)

OR
Description

Details

TREK-674 is a compact vehicle-grade, dual-core computing box designed to provide high-quality video surveillance and fleet management for police car, ambulance, fire engine and buses. TREK-674 delivers tracking and positioning which allows a truck to be traced even if the driver is in a tunnel. It supports several vehicle protocols (e.g. J1939, OBD-II/ISO 15765) for vehicle diagnostics and driver behavior management, and it supports up to 8 channel camera inputs for high-quality H.264 D1/30fps/ch recording to improve driver/passenger safety and security. Front side USB 3.0 port, dual SIM cards and Cfast slots are designed for ease of maintanence. A single SSD tray is swappable and designed for video data backup. The TREK-674 provides reliable on-road recording and can transmit images or alarms for remote monitoring over wireless, GPRS, 3G, or HSDPA network connections.
Additional Information

Additional Information

Features ƒ Vehicle diagnostics interface with configurable CAN (J1939, OBD-II/ISO 15765) and J1708 (J1587) protocols ƒ Embedded Stretch S7 video encoder supports up to 8 analog video inputs and 4 audio inputs ƒ Built-in GNSS, WLAN, Bluetooth, and WWAN (with dual SIM cards) modules ƒ Intelligent vehicle power management system supports ignition on/off/ delay functions, wake-up event control, and system health monitoring and diagnostics ƒ Accessible external SSD tray with key-lock protection ƒ Wide operating temperature range (-30 ~ 70 °C/-22 ~ 158 °F) ƒ Supports 12/24 V vehicle power (ISO 7637-2) ƒ MIL-STD-810G and 5M3 certified for shock and vibration tolerance ƒ Easily paired with TREK in-vehicle smart displays (TREK-303/306) via a single-cable connection
Packing List 1700019031 1 x 2M power cable 1700023050-11 1 x generic I/O cable, 2M 1700023051-01 1 x vehicle I/O cable, 30 cm 1700022702-01 1 x Audio/Video cable, 20 cm 1654011716-01 2 x waterproof RJ45 locking kit 1750007724-01 1 x 3-in-1 antenna (LTE/GPS/Wi-Fi), 3M 1750007723-01 1 x Wi-Fi only antenna, 3M 1990018848T000 2 x USB cable clips
Ordering Information TREK-674-LWB7A0E
Diamensions 294 x 73 x 184 mm (11.57 x 2.87 x 7.24 in)
Reviews
Data Sheet
PDF
