Transportation
-

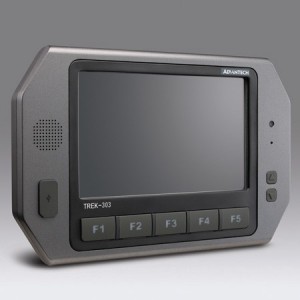

- 7” display with touchscreen supports both 480 x 234 & 800 x 480 resolutions for different LCD panels
- -30 to 70° C wide range temperature support
- Five user-defined function keys, 2 watt speaker, and USB host.
- Supports auto-adjust light sensor LCD backlight brightness control
- One cable connects with TREK-5xx series
- Wake up/power button on back for easy to wake up/power up; LCD backlight power button
- CE/FCC/e13 certified
-
8” sunlight-readable TFT LCD with a projected capacitive touchscreen● Optional LTE module● Built-in GPS receiver● Built-in OBD-II/J1939● OS: Android 7.1Learn More -
Learn More- 3rd Generation Intel® Core™ i7 3517UE Processor
- Dual Independent Display: VGA and DVI-D
- M12 Connector for Ethernet and USB Interfaces
- MiniPCIe Expansions, Wi-Fi, 3G/LTE, GSM-R, and GPS
- RAID 0/1 Support (Expansion Slots)
- EN50155 Certified: Power Input Range Covers 24V/48V/72V/110V (±40%) T3 Temperature Level: -25°C~70°C (85°C for 10 minutes) with EN45545 Compliant
- EN50121 EMC Standards
- IEC61373 Body Mount Class B
- IP50 Rating
-
Learn More- Intel® 6th Generation i7-6600U/i7-7600U processor
- SO-DIMM DDR4 1600MHz/1866Mhz, Up to 16GB
- Dual independent displays: DVI-D and DVI-D ports
- 2 x GbE LAN , 2 x USB and 2 x COM ports
- 2 x MiniPCIe and 1 x mSATA for expansion
- Supports GPS ,Wi-Fi, 2 x LTE (Optional)
- Supports 2 x 2.5” SSD expansions and RAID 0/1 (Optional)
- EN 50155 Power input range: 24V/48V/72V/110V (±40%)
- EN 50155 TX temperature level: -40° C ~ 70° C (85° C for 10 Minutes)
- IP50+ and conformal coating protections
- EN 50155, IEC 60571 certified
- EN 45545, JIS E 5006 compliant
-
Learn More- Intel® 6th Generation i7-6600U/i7-7600U processor
- SO-DIMM DDR4 1600MHz/1866Mhz, Up to 16GB
- Dual independent displays: DVI-D and DVI-D ports
- 2 x GbE LAN , 2 x USB and 2 x COM ports
- 2 x MiniPCIe and 1 x mSATA for expansion
- Supports GPS ,Wi-Fi, 2 x LTE (Optional)
- Supports 2 x 2.5” SSD expansions and RAID 0/1 (Optional)
- EN 50155 Power input range: 24V/48V/72V/110V (±40%)
- EN 50155 TX temperature level: -40° C ~ 70° C (85° C for 10 Minutes)
- IP50+ and conformal coating protections
- EN 50155, IEC 60571 certified
- EN 45545, JIS E 5006 compliant
-
Learn More- Intel® 6th Generation i7-6600U/i7-7600U processor
- SO-DIMM DDR4 1600MHz/1866MHz, Up to 16GB
- Dual independent displays: DVI-D and DVI-D ports
- 6 x GbE LAN (4ports with POE), 3 x USB (1 x M12) and 2 x COM ports
- 2 x MiniPCIe and 1 x mSATA for expansion
- Supports GPS ,Wi-Fi, 2 x LTE (Optional)
- Supports 2 x 2.5” SSD expansions and RAID 0/1(Optional)
- EN50155 Power input range: 24V/48V/72V/110V (±40%)
- EN50155 TX temperature level: -40° C ~ 70° C (85° C for 10 Minutes)
- IP50+ and conformal coating protections
- EN 50155, IEC 60571 certified
- EN 45545, JIS E 5006 compliant
-
Learn More- Built-in Intel® Atom™ quad-core processor
- A fanless computer for railway vehicle compact system for rolling stock
- Satisfies temp. standard: EN 50155 TX (-40 ~ 70 °C) and IEC 61373 body
- Compliant with EN 50121-3-2 EMC test standard
- Supports Easy-swap SSD module
- Optional DC 24V/48V/72V/110V Input
- Support Ingress Protection 65
-
Intel® 6th Generation Core™ i Processor Fan less System; EN 50155 Compliant for Railway Applications
- H-series, 6th generation Intel® Core™ i7 platform with QM170
- Fanless computer for railway vehicle applications, fully compliant withEN 50155
- Satisfies temp. standard: EN 50155 TX (-40 ~ 70 °C) and IEC 61373 bodymount class B
- Compliant with EN 50121-3-2 EMC test standard
- Support 2 mini-PCIe and 4 M.2 sockets for GPS/3G/LTE/Wifi modules and10 sets of SIM holders
- Support fast swap brackets for up to 18 SMA antennas assembly (18 QMA /12 N-type connector brackets optional)
- 1 set SMA antenna for GPS
- Supports easy-swap storage module with lock
-
Intel® 6th Generation Core™ i Processor Fan less System; EN 50155 Compliant for Railway Applications
Learn More- Intel skylake-H platform with QM170
- A fanless computer for railway vehicle applications, fully compliant with EN 50155
- Satisfies temp. standard: EN 50155 TX (-40 ~ 70° C) and IEC 61373 body mount class B
- Compliant with EN 50121-3-2/ EN 50121-4 EMC test standard
- Ruggedized connectors (M12) used for communication and power ports
-
● 10.1" TFT LCD with a projected capacitive touchscreen
● Intel® Atom™ E3826 1.46 GHz CPU
● Windows® Embedded Standard 7
● Optional HSUPA/GPRS/GSM, Wi-Fi, and Bluetooth
● Built-in GPS function ● Built-in OBD-II/J1939
Learn More
