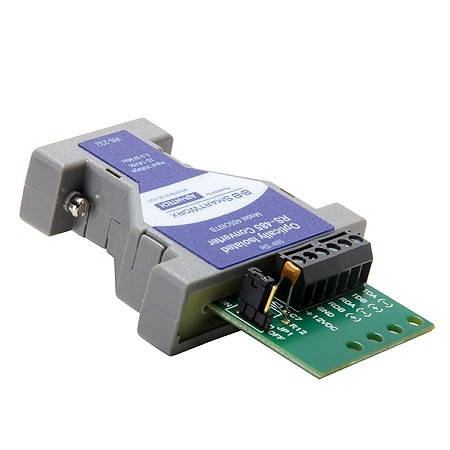

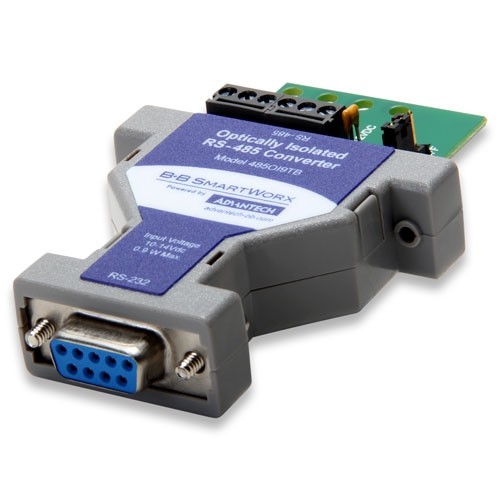

Model BB-485OI9TB, isolated converter, converts unbalanced, full-duplex RS-232 signals to balanced full-duplex (4-wire) RS-422/485 or half-duplex (2-wire) RS-485 signals. The converter provides 1,500 Volts RMS optical isolation for data lines and ground (and connected devices) between the RS-232 and RS-422/485 signals. RS-232 port has a female DB9 connector. RS-422/485 port has a 6-position terminal block. The RS-232 side of the converter draws power from the handshake lines (DTR, RTS). At least one handshake line must be asserted (raised high) to power the RS-232 side. The RS-422/485 side must be powered by an external 12 VDC power supply (not included, sold separately).
- Additional Information
-
Additional Information
Features Converts RS-232 data signals to RS-422/485
• 1500V optical isolation for data lines and ground
• Data rate: up to 9600 bps
• Inline installation
• 10 to 14 VDC power supply (required, not included, sold separately)
• cULus, FCC, CE
Packing List BB-SMI6-12-V-ST - Power Supply, 12 VDC 6 Watt, Stripped and Tinned, International AC Input, International AC Blades
BB-9PAMF6 - 1.8 m (6 ft) RS-232 Serial Cable
BB-MMNM9 - DB9 male to DB9 male Null Modem Adapter
Ordering Information BB-485OI9TB
Diamensions 5.5 x 8.3 x 1.7 cm (2.2 x 3.3 x 0.7 in) - Reviews
-
