Ultra-Compact RISC-Based Digital Signage Player

More Views

Ultra-Compact RISC-Based Digital Signage Player
Part Nubber: USM-110
₹0.00

  • Built-in Arm® Cortex®-A17 quad-core processor (1.6 GHz)

  • · 2 GB onboard memory and 16 GB eMMC

  • · Up to 32 GB of expandable MicroSD (TF) storage

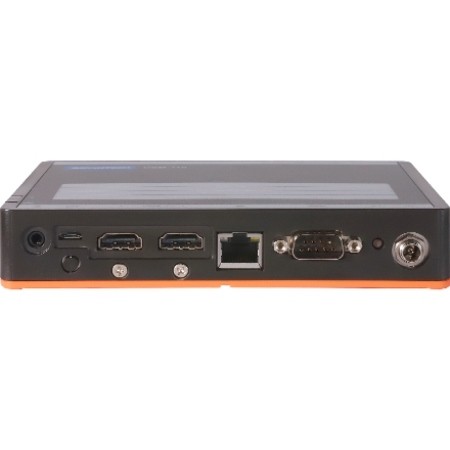

  • · Dual HDMI outputs (1 x supports 4K resolution and 1 x supports 1080P resolution)

  • · Ultra-compact design for easy installation in confined spaces

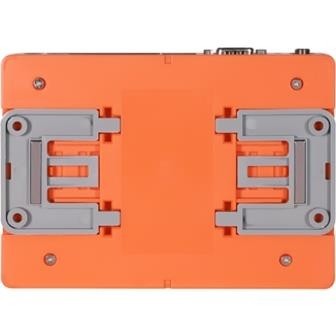

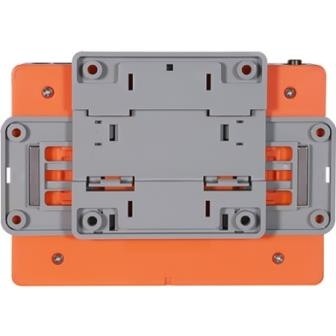

  • · Supports various mount options including VESA, wall, pole, and DIN-rail mounting

  • · Can be integrated with optional Wi-Fi, Bluetooth, and 4G LTE modules

  • · Equipped with WISE-PaaS/SignageCMS software, which supports multi-screen displays and cross-screen content display

  • · Supports interactive APIs for seamless media content switching

  • · Supports Android 6.0

Description

Details

USM-110 is an ultra-compact digital signage player. Equipped with an Arm® Cortex®-A17 RISC-based box PC which is aimed at markets that demand high-performance graphics in a cost-effective platform. USM-110 offers enhanced heat dissipation to ensure stable and reliable operation. To facilitate various retail and hospitality applications, USM-110 supports multiple mount options, ensuring easy installation in diverse environments. Moreover, USM-110 is integrated with Advantech’s UShop SignageCMS digital signage management software, which supports remote management for convenient real-time control.
Additional Information

Additional Information

Features

ƒ Built-in Arm® Cortex®-A17 quad-core processor (1.6 GHz) ƒ 2 GB onboard memory (4G memory optional)

ƒ 16GB eMMC onboard expandable MicroSD (TF) storage

ƒ Dual HDMI outputs (1 x supports 4K resolution and 1 x supports 1080P resolution)

ƒ Ultra-compact design for easy installation in confined spaces

ƒ Supports various mount options including VESA, wall, pole, Magnet, and DIN-rail mounting

ƒ Can be integrated with optional Wi-Fi, Bluetooth, and 4G LTE modules

ƒ Equipped with WISE-Paas/SignageCMS software, which supports multi-screen displays

ƒ Supports Android 6.0/8.1, Linux Debian9.0

ƒ RED Compliance

Packing List No
Ordering Information USM-110A-BR111 USM-110A-BR121 USM-110A-BR122 USM-110A-UR110 USM-110A-UR121
Diamensions 156 x 112 x 28 mm (6.14 x 4.41 x 1.10 in)
