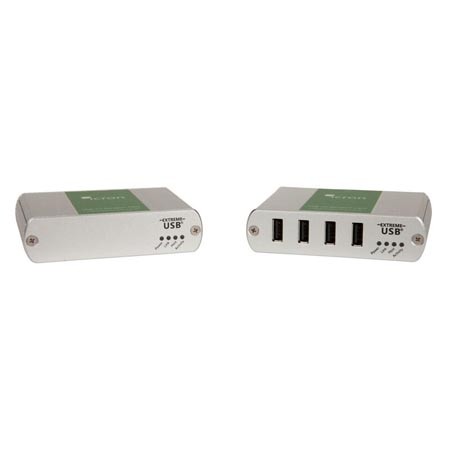

The USB 2.0 Ranger® 2304 is a 4-port USB 2.0 high-speed extender enabling USB 2.0 connections at up to 480Mbps over 100m (330ft) of Cat 5e/6/7 cabling. No additional software drivers needed. The Ranger 2304 provides a 4-port remote USB 2.0 powered hub that delivers 600mA to each port and extends up to four USB 3.0, 2.0 and 1.1 devices without an additional hub.
The plug-and play-Ranger 2304 offers faster throughputs when using read/write devices such as external hard drives and supports a greater number of connections (up to 31 devices and hubs). The Ranger 2304 is compatible with all leading operating system, and supports USB peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards.
Includes: local extender (LEX), remote extender (REX), USB cable (2m), EU/European power adapter, quick start guide.
Applications: industrial control, KVM extension, professional audio-visual, digital signage, security/monitoring (web camera, access control), medical device connectivity - Additional Information
-
Additional Information
Features The Ranger 2304 extends all USB 2.0 peripherals such as flash drives, keyboards, mice, webcams and interactive whiteboards across a dedicated CAT 5e/6/7 connection.
■ USB 2.0 throughput up to 480Mbps
■ Integrated hub provides ports for four USB devices, use hubs to add more
■ Supplies up to 600mA to each USB port concurrently
■ Operates with all USB controllers
Includes the ExtremeUSB® suite of features:
■ Transparent USB extension
■ True plug and play; no software drivers required
■ Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
Packing List No Ordering Information 00-00347 00-00348 00-00349 00-00350 00-00373 Diamensions 100mm x 76mm x 26mm (3.9" x 3.0" x 1.0") - Reviews
-
