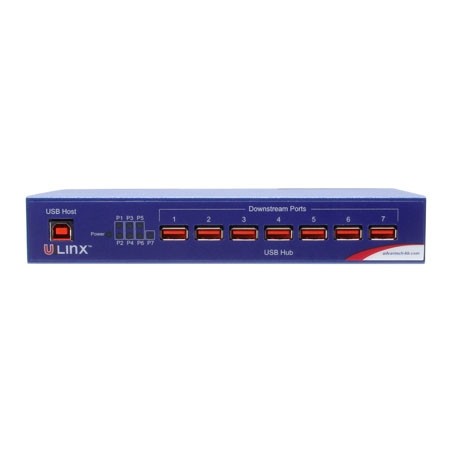

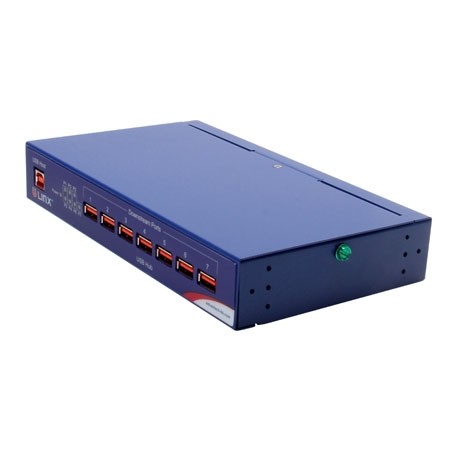

The UHR207 is a seven-port, industrial grade, non-isolated USB hub. It is designed and tested to meet heavy industrial EMC standards and is UL listed for Class1/Division2 hazardous locations allowing operation where standard office-grade hubs fail – such as near variable frequency drives, motor control centers, welding and other large electrical loads. High retention USB connectors hold standard USB cables tight and are perfect for high vibration applications – requiring up to 3.2 lbs-force to disconnect them. USB cable included. The USB hub is powered from an external 10 to 30 VDC source (not included, sold separately). Two power connectors are provided – terminal block or threaded/lockable barrel plug. Each downstream port provides up to 500 mA of power to connected USB devices. (Refer to ordering information for power supply requirements and recommendation.)
- Additional Information
-
Additional Information
Features - Expands one USB port to 7 USB ports (USB 2.0)
- ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B
- Data rate: 480 Mbps full speed
- Wide operating temperature: -40 to +80 °C
- Rugged metal case - desk, DIN rail or panel mount (brackets included)
- FCC, CE, UL, EMC heavy industrial
- High retention USB port connectors
- USB cable included, 1.8 m (6 ft)
- External power source required (not included, sold separately)
Packing List BB-PS12VLB-INT-MED 12VDC Power Supply, Medical Grade; US, EU, UK Blades (Class 2) BB-MDR-20-24 24VDC Power Supply, 1.0A, DIN Rail Mount (Class 2) BB-USBAMBM-3F Type A Male to Type B Male, Gray, 0.9 m BB-USBAMBM-6F Type A Male to Type B Male, Gray, 1.8 m one (included w/product) Ordering Information BB-UHR204* BB-UHR304 BB-UHR207 BB-UHR307 Diamensions BB-UHRx04: 168.2 x 86.3 x 35.1 mm (enclosure with brackets) BB-UHRx07: 233.2 x 119.4 x 35.1 mm - Reviews
-
