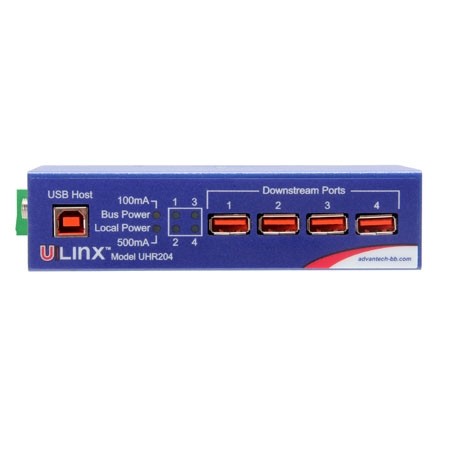

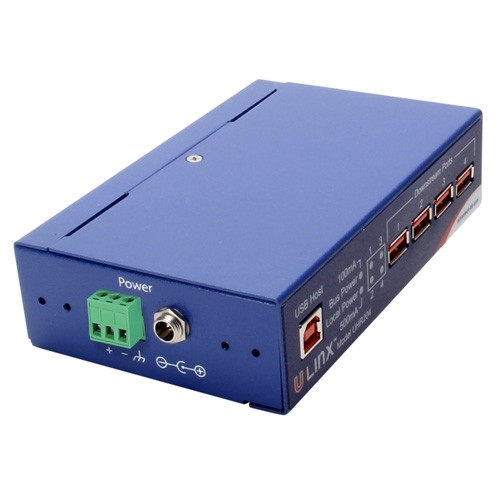

BB-UHR204, 4-port USB hub, is designed and tested to heavy industrial EMC standards and is UL C1/D2 rated. High retention USB ports hold standard cables tight. USB cable included. - Additional Information
-
Additional Information
Features - Expands one USB port to 4 USB ports (USB 2.0)
- ESD Level 4 (contact 8 kV, air 15 kV) Performance Criteria B
- Data rate: 480 Mbps full speed
- Wide operating temperature: -40 to +80 °C
- Rugged metal case - desk, panel or DIN rail mount (brackets included)
- FCC, CE, UL, EMC heavy industrial
- High retention USB port connectors
- USB cable included, 1.8 m
- Bus power or external power (power supply not included, sold separately)
Packing List BB-PS12VLB-INT-MED 12VDC Power Supply, Medical Grade; US, EU, UK Blades (Class 2) BB-MDR-20-24 24VDC Power Supply, 1.0A, DIN Rail Mount (Class 2) BB-USBAMBM-3F Type A Male to Type B Male, Gray, 0.9 m BB-USBAMBM-6F Type A Male to Type B Male, Gray, 1.8 m one (included w/product) Ordering Information BB-UHR204* BB-UHR304 BB-UHR207 BB-UHR307 Diamensions BB-UHRx04: 168.2 x 86.3 x 35.1 mm (enclosure with brackets) BB-UHRx07: 233.2 x 119.4 x 35.1 mm - Reviews
-
