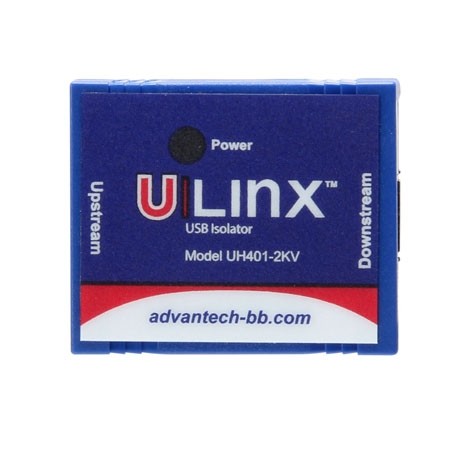

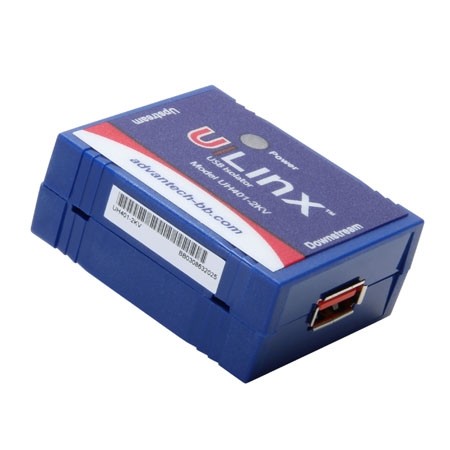

Model UH401-2KV is a compact isolator that packs a powerful punch against electrical noise, surges and spikes with 2 kV isolation. Protect expensive PCs and equipment from damaging electrical storms, power surges and other high EMI/RFI disturbances. This isolation barrier eliminates ground loops which are disruptive in measurement applications. Suitable for 12 Mbps full-speed USB devices. The isolator is USB bus-powered and provides up to 100mA of current to attached downstream devices when attached to a full-power (500 mA) USB host port. USB cable included. Note: Data rate is preconfigured at the factory. High speed (480 Mbps) cannot be isolated with existing technology. - Additional Information
-
Additional Information
Features - 2kV Isolation Protection for PCs, laptops, Equipment
- 15 kV ESD Protection
- Full (12 Mbps) USB Speed
- -40 to 80 °C Wide Operating Temperature
- Ultra-Compact Size with Quick Inline Installation
- High Retention USB Connectors
- USB Bus Powered
- USB cable included, 0.9 m (3 ft)
Packing List BB-USBAMBM-3F - USB Cable, 0.9 m (3 ft), Type A Male/Type B Male (Grey) (one included) BB-USBAMBM-6F - USB Cable, 1.8 m (6 ft), Type A Male/Type B Male (Grey) Ordering Information BB-UH401-2KV Diamensions 4.32 x 5.08 x 2.03 cm (1.7 x 2.0 x 0.8 in) - Reviews
-
