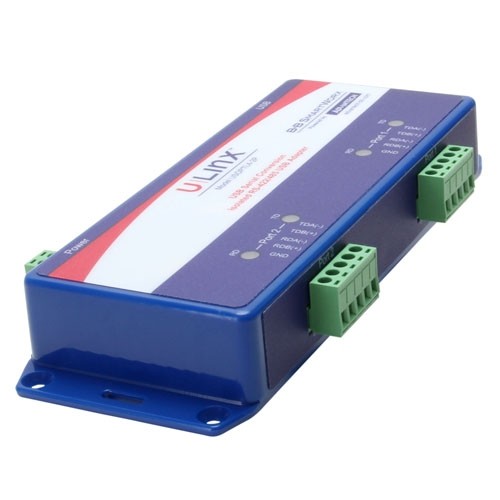

Two serial ports, 2-wire RS-485 or 4-wire RS-422/485. Long range, multi-drop communications. Easy to set up with plug in terminal blocks on RS-422/485 side and a high retention USB connector that works with a standard USB cable (included). LEDs indicate transmit and receive. 10-30 VDC Power input. - Additional Information
-
Additional Information
Features - USB to RS-422/485 Converter
- 2 kV Isolation
- 921.6 Kbps Serial Data Rate
- Flat Panel Mounting
- Terminal Block for 10-30 VDC Power Input
- High Retention USB Connector, Plug in Serial Terminal Block
- USB Cable Included
Packing List BB-USBAMBM-3F – USB cable, 1 m (3 ft) BB-USBAMBM-6F – USB cable, 2 m (6 ft) (one included) BB-MDR-20-24 – Power supply, 24 VDC, 1 A, DIN rail mount BB-TBKT1 – Replacement terminal block, 2-position, 5.08mm, 8A, 300V BB-TBKT2 – Replacement terminal block, 5-position, 5.08mm, 8A, 300V Ordering Information BB-USOPTL4-2P BB-USOPTL4-4P Diamensions 19.10L x 7.09W x 2.93H cm (7.52L x 2.79W x 1.15H in) - Reviews
-
