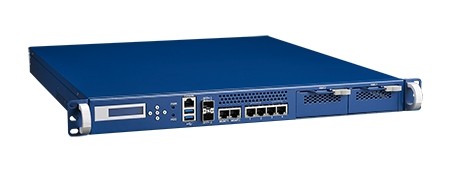

1U Rackmount Network Appliance

1U Rackmount Network Appliance

More Views

1U Rackmount Network Appliance
Part Nubber: FWA-3260
₹0.00

  • Intel® Xeon® Processor D System On Chip up to 16 cores and 1.5MB last level cache per core

  • 4 x DDR4 ECC UDIMMs/RDIMMs and RDIMMs, up to 2400MHz and up to 128GB

  • 4 server class GbE ports implemented by an Intel i350 Ethernet Controller with advanced LAN bypass support

  • 2 GbE management ports

  • 2 x 10GE SFP+ ports

  • 2 Network Mezzanine Card bays for PCIe gen.3 based port expansion with 1GbE and 10GbE and 40GbE ports

  • 1 x PCIex8 full-height / half-length add-on cards

  • Two 2.5" SATA HDDs/SSDs and two M.2 SSD sockets

  • IPMI2.0 compliant Remote Management (optional)

OR
Description

Details

1U Rackmount Network Appliance with Intel® Xeon® Processor D Family for vE-CPE and Network Applications, 2 NMC slots
Additional Information

Additional Information

Features ƒ Intel® Xeon® Processor D System On Chip up to 16 cores and 1.5MB last level cache per core ƒ 4 x DDR4 ECC UDIMMs/RDIMMs and RDIMMs, up to 2400MHz and up to 128GB ƒ 4 server class GbE ports implemented by an Intel® i350 Ethernet Controller with advanced LAN bypass support ƒ 2 GbE management ports ƒ 2 x 10GE SFP+ ports ƒ 2 Network Mezzanine Card bays for PCIe gen.3 based port expansion with 1GbE and 10GbE and 40GbE ports ƒ 1 x PCIe x8 full-height / half-length add-on cards ƒ Two 2.5" SATA HDDs/SSDs and two M.2 SSD sockets ƒ IPMI2.0 compliant Remote Management (optional)
Packing List 1700012272 SATA Data Cable 25 cm 1700018950 RJ-45 Console Cable 220 cm 1960079966N001 EAR-R 295U FWA-3260 1960079968N001 EAR-L 295U FWA-3260 1961100D00 Ears Handle for NAS 1100 AL (A1)
Ordering Information FWA-3260A-01E
Diamensions 430 x 44.2 x 500 mm (16.6" x 1.7" x 19.7")
Reviews
Data Sheet
PDF
