- Description
-
Details

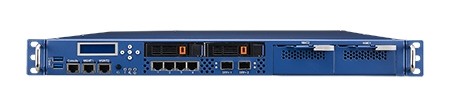

Based on the latest Intel® Xeon® processor platform, the FWA-5020 is a high-end 1U network appliance designed for maximum performance, scalability and functionality. One or two Intel® Xeon E5-2600 v4 processors (Broadwell-EP) provide the latest architectural enhancements, larger on chip cache memories as well as Intel® QuickPath Interconnects, running at up to... More - Additional Information
-
Additional Information
Features Single or dual Intel® Xeon® E5-2600 v4 processor(s) up to 145W TDP DDR4 2400 MHz ECC registered memory up to 512 GB (CPU SKU) 4 x GbE with LAN bypass, 2 x GbE for Mgmt (SKU dependent) 2 x 10GbE SFP+ NICs (SKU dependent) Up to 4 x NMC (Network Mezzanine Card) slots for a wide range of GbE, 10GbE and 40GbE NMCs with or without advanced LAN bypass 2 x 2.5" SATA HDDs/SSDs IPMI 2.0 compliant Remote Management Advanced Platform Reliability and Serviceability 2 x internal CLC PCIE card (Dual DH8955)supported (SKU dependent) Packing List PCIe-3021-00E Dual Intel Coleto 8955 Crypto card (x 16 gold finger) Ordering Information FWA-5020L-00A1R Diamensions 438 x 44x 625 mm (17.24" x1.732" x24.61") - Reviews
-
- Data Sheet
-
