Details

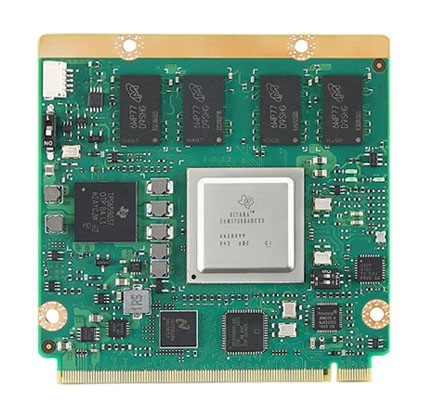

ROM-7510 Qseven Module integrates ARM Cortex-A15 TI AM5728 high performance SoC and I/O solution chips to be Linux support ready. TI AM5728 is provided by dual-core ARM Cortex-A15 RISC CPUs with Neon™ extension, and two TI C66x VLIW loating-point DSP cores. The ARM allows developers to keep control functions separate from other algorithms programmed on... More - Additional Information
-
Additional Information
Features TI Sitara AM5728 Processor that integrated Dual ARM Cortex-A15 up to 1.5GHz and Dual TI C66x VLIW floating-point DSP cores and Dual ARM Cortex-M4 Programmable Real-Time Unit Onboard DDR3-1066 memory 2 GB and eMMC Flash 8 GB Support 1 x LVDS, 1 x HDMI, 1 x USB2.0 OTG, 4 x USB2.0 HOST, 1 x USB3.0, 2 x UART, 1 x CAN, 1 x SATA, 2 x I2C, 1 x I2S, 2 x PCIE 1 lane Operating temperature 0 ~ 60 °C / -40 ~ 85 °C Supports Linux Yocto Packing List No Ordering Information ROM-7510CD-PEA1E Diamensions 70 x 70 mm - Reviews
-
