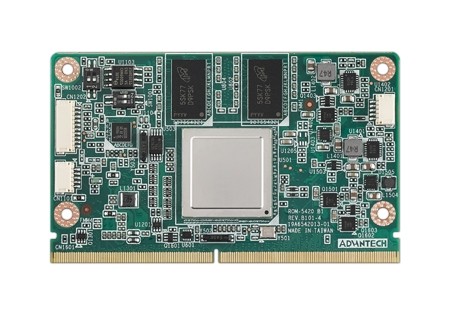

ROM-5420 series SMARC module integrated NXP i.MX6 Cortex-A9 SoC. The powerful i.MX6 SoC supports 2D/3D graphics accelerators, full HD 1080p encode/decode hardware engine and up to 4 independent display outputs. ROM-5420 supports a unique feature of security protection to protect users image from illegal copy. The camera input and power input 3V~5.25V make... More - Additional Information
-
Additional Information
Features NXP ARM® Cortex® -A9 i.MX6 high performance processor Onbard DDR3 memory and eMMC 4GB Parallel RGB, HDMI, single channel 18/24-bit LVDS, 1366 x 768 2 x CAN, 4 x UART, 5 x I2 C, 12 x GPIO, 1 x PCIe, 1 x camera input and 1 x Gigabit LAN Supports OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators Supports full HD hardware encode/decode engine Low power consumption, fanless desgin Supports Linux and Android BSP Packing List No Ordering Information ROM-5420CD-MDB1E Diamensions 82 x 50 mm - Reviews
-
