Development Board

Development Board

More Views

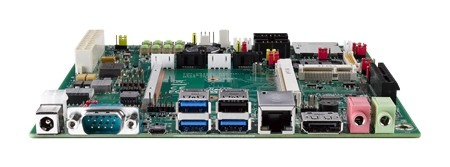

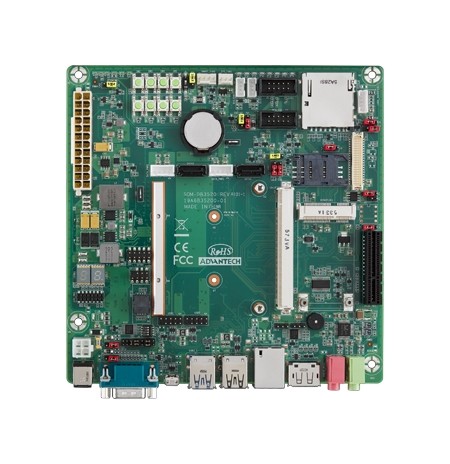

Development Board
Part Nubber: SOM-DB3520
₹0.00

  • Supports Qseven CPU Module

  • Supports Dual channel LVDS (eDP optional), DP (HDMI/DVI optional)

  • Supports 1 PCIe x4 slot, optional mini PCIe

  • Supports 2 SATA (mSATA optional), 2 COMs, 1 RJ-45, 8 USB 2.0, 1 USB 3.0

  • HD Audio Codec

OR
Description

Details

Development Board for Qseven R2.1 Modules
Additional Information

Additional Information

Features ƒ Supports Qseven CPU Module ƒ Supports dual channel LVDS display, eDP, DP/++, and HDMI (through DP++) ƒ Supports standard ATX or 12V DC power input ƒ Supports 1 PCIe x4 slot, 1 Mini-PCIe slot w/SIM socket, 1 GbE, 2 SATA, mSATA, 3 USB 3.0 and 8 USB2.0, 2 COM ports, 1 SD socket, TPM (Option), CAN Bus and HD audio
Packing List No
Ordering Information SOM-DB3520-00A1E
Diamensions 170 x 170 mm (6.7" x 6.7")
Reviews
Data Sheet
PDF
