SMARC

SMARC

More Views

SMARC
Part Nubber: SOM-DK2569
₹0.00

  • SMARC SOM-2569 with Intel® Atom E3950 plus SOM-DB2500

  • Dual channel LPDDR4 8 GB memory down & onboard eMMC 64 GB

  • Wireless module on board design and Integrated dual GbE

  • Support PCIex1, USB3.0, USB2.0, SATA 3.0

  • Incudes Win10 and WISE-PaaS/DeviceOn

  • Support iManager APIs

OR
Description

Details

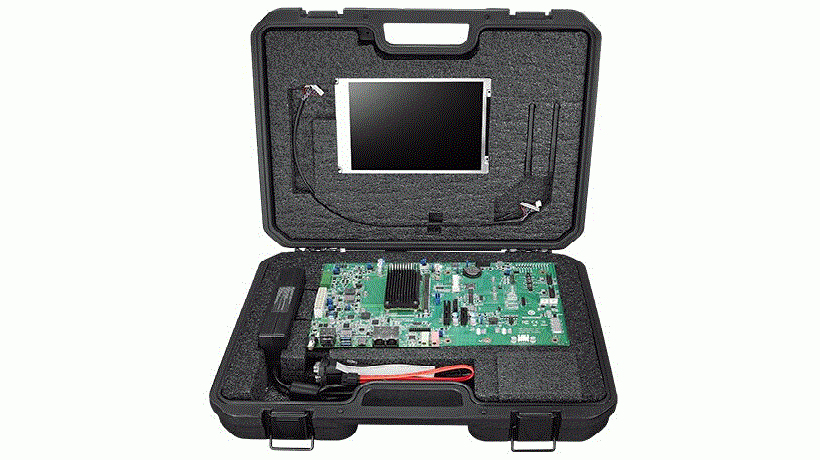

Starter kit for SMARC SOM-2569
Additional Information

Additional Information

Features ƒ SMARC SOM-2569 with Intel® Atom E3950 plus SOM-DB2500 ƒ Dual channel LPDDR4 8 GB memory plus onboard 64 GB eMMC ƒ Wireless module on board plus integrated dual GbE ƒ Supports PCIe x1, USB 3.0, USB 2.0, SATA 3.0 ƒ Incudes Win10 and WISE-PaaS/DeviceOn ƒ Supports iManager APIs
Packing List SOM-2569CNCCA-S7A1 SMARC E3950 8G LPD4 64G EMMC Wi-Fi 1 SOM-DB2500-00A1 SMARC R2.0 Devel. Board Rev. A1 1 1960093125T001 SOM-2569 E3900 SKU heat spreader 1 1960093089T001 Semi-Heatsink, 82L x 34W x 18H (mm) 1
Ordering Information SOM-DK2569-00A1
Diamensions 304.8 x 190.5 mm for carrier board SOM-DB2500 82 x 50 mm for SOM-2569 module
