Computer On Modules
-
- PICMG COM.0 R 3.0 Type 7 Pin out
- COM Express ® Basic/Compact module
- 10 Gigabit Ethernet support by OCP mezzanine card
- Extension: PCIe x16, PCIe x8, 2 PCIe x4
- Integrated BMC supports VGA, Dedicated NIC for IPMI, iKVM
- Visible Debug Utility: BIOS 80 Port and Power State
-
- Expansion: PCIe x16, PCIe x4
- Display Type: VGA, LVDS / eDP, HDMI / DP
- ATX form factor with both ATX & AT power support
- COM Express Basic/Compact/COM-Ultra module compatible

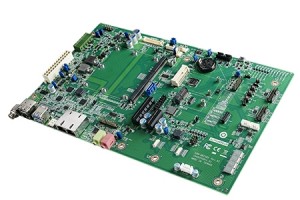

- Development Board Compliant to PICMG COM.0 R3.0 Type 6 Pin-out
-
- Support SMARC V2.0 Module
- Support several type of display: LVDS, eDP, DP++, HDMI
- Support PCIe with SIM card socket, M.2 (E-Key), SATA, USB3, USB Type-C, Micro SD card
- Supports standard ATX power supplier or 12V DC-IN adapter
- Visible Debug Utility: BIOS Port 80 and Power State
-
- iManager WISE-PaaS/RMM, and Embedded Software APIs
- LVDS and HDMI/DP support H.264, MPEG2 HW Decode/Encode
- Onboard Dual Channel DDR3L-1333 up to 8GB, eMMC up to 32GB

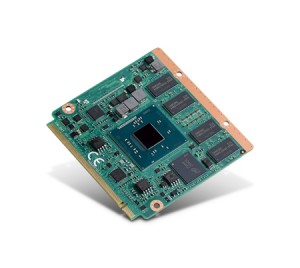

- Qseven R2.0 CPU Module
-
- Intel® Pentium®/Celeron® N4200 Series and Atom™ SoC
- Qseven® 2.1 Specification
- Onboard LPDDR4 up to 8GB, onboard eMMC
- Support HEVC/H.265, H.264 MPEG2 HW Decode
- GbE, 3 PCIex1, 2 USB3.0, 5 USB2.0
- Supports iManager WISE-PaaS/RMM, and Embedded Software APIs
-
- COM R.2.1 Type 10 Mini Module
- Intel® Atom™/Celeron® processor for Intelligent systems
- Onboard DDR3L and SSD
- 4.75 ~ 20 V wide-voltage input support
- Embedded Software APIs and Utilities supported
-
- COM R.2.1 Type 10 Mini Module
- Intel® Atom™ E3900 & Pentium® / Celeron® Processor
- Max 8GB DDR3L onboard memory (support ECC, E3900 SKU only)
- Dual Display: LVDS, HDMI/DisplayPort
- onboard eMMC(default 32GB), TPM2.0
- Supports H.264/AVC, H.265/HEVC, VP9, VP8 HW DECODE
- Supports Wide-range operating temp./Wide range power input 4.75 ~ 20 V
- iManager and Embedded Software APIs
-
- COMe Mini Type-10
- Intel® Tiger Lake UP3 processors
- 16GB LPDDR4X 4266MT/s and IBECC support
- USB4 Compliance supported by carrier board design
- NVMe SSD onboard
- Operating temperatures: Standard 0 ~ 60 °C (32 ~140 °F) or Extended -40 ~ 85 °C (-40 ~ 185 °F)
- Supports SUSI, DeviceOn and Edge AI Suite
-

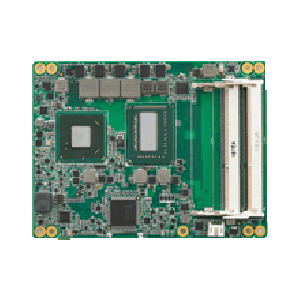

- Embedded Intel® Core™ i7/i5/i3/Celeron® processor + QM77
- Supports Dual Channel DDR3-1600, DDR3L-1333 SODIMM sockets up to 16 GB
- Supports PCIe x16, 7 PCIe x1, 2 SATAIII, 2 SATAII, 8 USB 2.0, 4 USB 3.0, GbE
- Supports 3 independent displays: VGA, LVDS, DVI, HDMI, DisplayPort
- Supports iManager, SUSIAccess and Embedded Software APIs
-

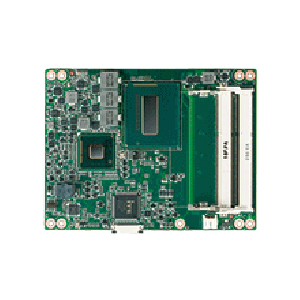

- 4th Generation Intel® Core™ Processors H-series + QM87
- Dual DDR3L-1333/1600 SODIMM sockets up to 16 GB
- Triple displays with outstanding graphics performance
- Multiple high speed interface, SATA III, USB3.0 and PCIe Gen3
- Supports iManager, SUSIAccess and Embedded Software APIs
