Computer On Modules
-
- Freescale ARM Cortex™-A9 i.MX6 Dual 1 GHz high performance processor
- Onboard DDR3 1 GB memory / 4GB flash
- Support wide range power input 5V~24V
- Supports OpenGL ES 2.0 and OpenVG™ 1.1 hardware accelerators
- Supports full HD 1080p video decode and HD 1080p video encode hardware engine
- Support 1 PCIe, 1 GBE, 1 USB2.0 , 1 USB OTG2.0 , 1 SATAII, 4 I 2 C , 1 I 2 S, 1 Camera in, 2 CANbus , 10 GPIO
- Optional thermal solution
-
- NXP i.MX 8X processor with 2-4 x Arm Cortex-A35 cores
- Onbard LPDDR4 memory and eMMC 16GB
- Supports wide range power input 5V~24V
- Supports Vivante GC7000 Lite hardware accelerators
- Supports Ultra HD 4K/ full HD 1080p video decode and HD 1080p video encode hardware engine
- Supports 1 PCIe, 1 USB 3.0, 1 USB 2.0, 1 USB OTG2.0, 5 I2C, 1 I2S, 1 Camera in, 2 CANbus, 10 GPIO
- Low power consumption, fanless desgin
- Supports Linux and Android BSP
-
- NXP ARM Cortex™-A8 i.MX53 1 GHz high performance processor
- Supports OpenGL ES 2.0 and OpenVG™ 1.1 hardware accelerators
- Supports full HD 1080p video decode and HD 720p video encode hardware engine
- NXP Smart Speed™ Technology supports low power consumption
- Industrial design with 3.3V I/O voltage and wide range working temperature
- Rich I/O for high expansion capability
- Supports SATA storage interface and CAN-bus for vehicle applications
- Supports Android 2.3, Embedded Linux2.6, Windows® Embedded Compact 7
-
- Supports Qseven CPU Module
- Easy-to-Install Demo Kit
- Specification/Function depends on Advantech Qseven mocule
- Power Adapter, Cable pack & Panel included
- Plastic case & EPE foam protection
-

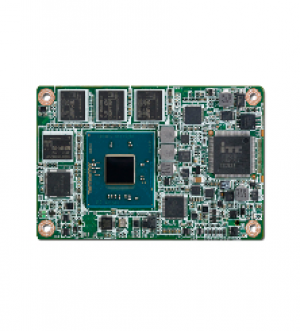

- COM R.2.1 Type 10 Mini Module
- Intel® Atom™/Celeron® processor for Intelligent systems
- Onboard DDR3L and SSD
- 4.75 ~ 20 V wide-voltage input support
- Embedded Software APIs and Utilities supported
-
- Set of SOM-5992 with 8C D-1548 & SOM-DB5920
- COM Express R3.0 Type 7 features
- Dual-CH DDR4 64GB, 2400GHz ECC memory
- High speed Ethernet (one GbE & dual 10GBASE-T)
- Super speed expansion bus and I/Os. (Gen3 PCIe, USB3.0 & SATAIII)
- Support VGA display from BMC
- Operating temperature 0 ~ 60 °C
-
- Qseven® 2.1 Specification - Set of SOM-3569 with Intel Atom E3950 & SOM-DB3520
- Dual-CH LPDDR4 4GB Memory, onboard 32GB eMMC & TPM2.0
- GbE, 4 PCIex1, 1 USB3.0, 8 USB2.0
- Win10 and WISE-PaaS/EdgeSense inside. Support iManager APIs
- Power Adapter, Cable & Panel included
- Plastic case & EPE foam protection
- Operating temperature 0 ~ 60 °C
-

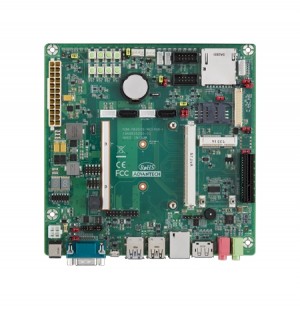

- Supports Qseven CPU Module
- Supports Dual channel LVDS (eDP optional), DP (HDMI/DVI optional)
- Supports 1 PCIe x4 slot, optional mini PCIe
- Supports 2 SATA (mSATA optional), 2 COMs, 1 RJ-45, 8 USB 2.0, 1 USB 3.0
- HD Audio Codec
-

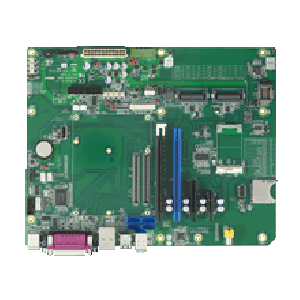

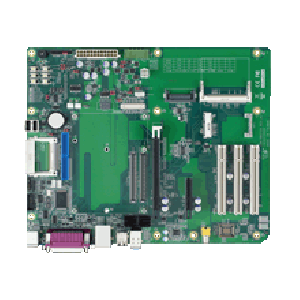

- PICMG COM.0 R2.0 Type 1/2 Pin-out
- COM Express® Basic/ Compact/ Mini module
- Display Type: VGA, LVDS, HDMI/Display port
- Expansion: PCIe x16, PCIe x4, PCIe x1, Mini-PCIe, Express Card, PCI, Mini- PCI, LPC, SMBus, I2C
- Visible Debug Utility: BIOS 80 Port and Power State
-
Development Board Compliant to PICMG COM.0 R2.1 Type 6 / 10 Pin-out Support COM Express Basic, Compact & Mini modules ATX form factor with both ATX & AT power support Display: VGA, LVDS, HDMI / DP by SOM-EA20 Expansion: PCIe x16, PCIe x4, PCIe x1, Mini-PCIe, Express Card Learn More
