6U CompactPCI Intel® Atom™ Processor Blade

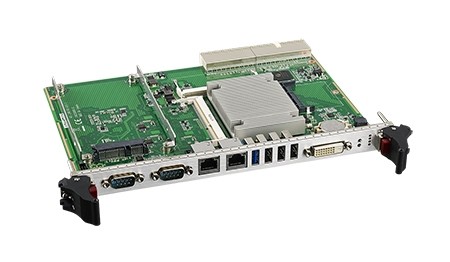

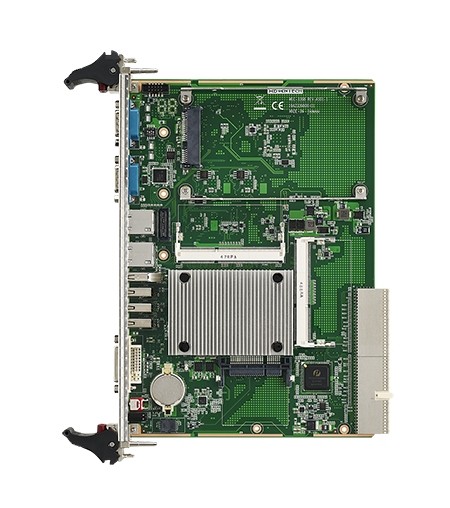

The MIC-3398 is a Low-Power 6U CompactPCI® CPU blade with best in class price/performance ratio tailored for applications that require a state of the art processor platform based on Intel® Architecture with full IO capability at an attractive cost point. The MIC-3398 supports Intel® Atom™ E3845 and Celeron N2930, J1900 SoC (system on a chip) family previously codenamed Bay trail with a maximum of quad-core 2.00 GHz processing performance. Intel® Atom™ technology provides significant increases in performance and energy efficiency by using the 22nm Intel® manufacturing process making it an ideal choice for control and workstation applications that require passive cooling with a power dissipation as low as 10W. Up to 8GB, dual channel 1333 MHz DDR3L memory with ECC support provide a high performance and robust memory interface for demanding applications. With built-in graphics based on Intel® HD Graphics Technology this blade offers a significant improvement in graphics performance compared to previous generation platforms. Support for an onboard 2.5” SATA-II drive as well as CFast SSDs adds comprehensive mass storage support. On the system side, the MIC-3398 supports 32-bit, 33MHz and 64-bit, 66MHz PCI bus interfaces to a CompactPCI backplane. A rich set of I/O interfaces such as DVI-D, USB3.0/2.0, Gigabit Ethernet and RS-232/422/485 ports round off the feature set. In addition to the single slot wide (4HP) board offering, a dual slot wide (8HP) version of the blade offers additional network connectivity by increasing Gigabit Ethernet port count from two to four.
