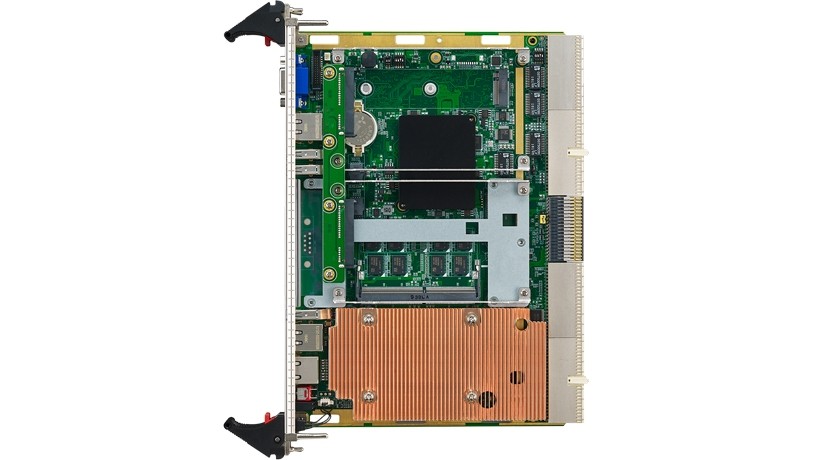

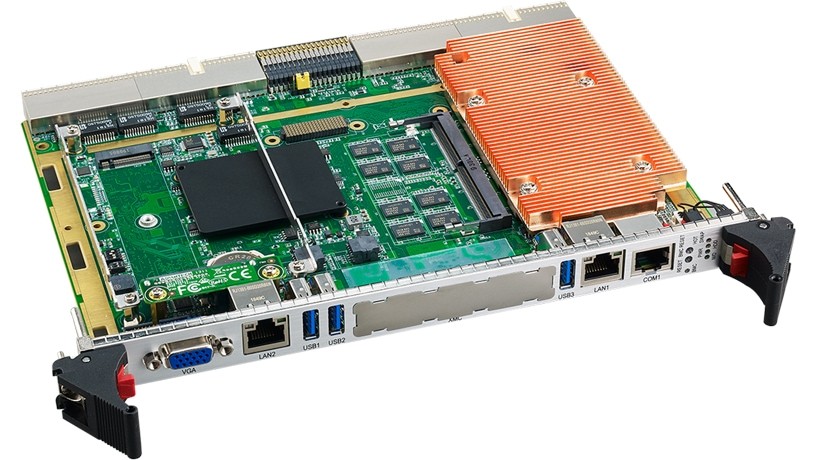

6U CompactPCI Intel® 6th Gen. Core™ i3/i5/i7 Processor Blade with ECC support

Using 6th generation Intel® Core™ i3/i5/i7 processors based on 14nm process technology supporting up to four cores / eight threads at 2.8GHz and 8MB last level cache, the MIC-3399 blade boosts computing performance deploying the latest virtualization, techniques and CPU enhancements. Onboard soldered low voltage DRAM (1.2V) with ECC support (optional) and optional memory expansion via an SODIMM socket extend the memory to a maximum of 32GB supporting the most demanding applications in high performance or virtualized environments. Dual channel design and memory speeds up to 2133MT/s along with increased cache size and cache algorithms guarantee maximum memory performance. Combined with the powerful Intel® C230 Series Chipset, which offer improved I/O performance by leveraging 8GT/s DMI and 3rd generation PCIe interfaces. An onboard XMC site, with PCIe x8 gen.3 connectivity can host high speed offload or I/O mezzanines such as the MIC-3666 dual 10GE XMC card. With SATA-III support and up to 7Gbps I/O, the latest enhancements in storage technology such as high speed SSDs or traditional HDDs can be used on the MIC-3399. Five gigabit Ethernet ports based on Intel® GbE controllers for front and rear,including two PICMG 2.16, ensure best in class network connectivity. The processor’s integrated enhanced graphics engine (Iris) offers twice the performance over previous generations. With triple independent display support, the MIC-3399 is an ideal fit for demanding workstation applications.
