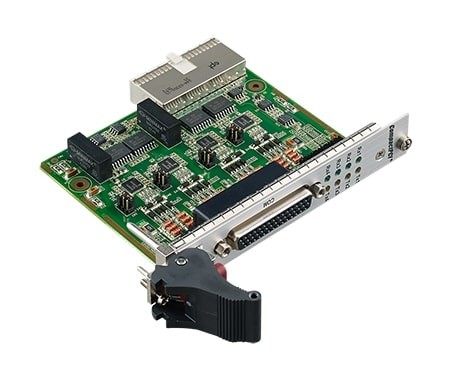

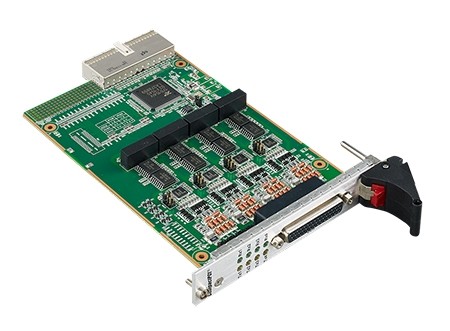

The MIC-3955 is a low power 4-port or 8-port RS232/RS422/RS485 serial board with 3U CPCI form factor and is based on the EXAR PCI controller. MIC-3955 is PICMG 2.0 Rev. 3.0 compatible. Rear board module are named MIC-3527XX. The MIC-3955 supports front IO or rear IO with 4-port and 8-port, and every channel is independent. - Additional Information
-
Additional Information
Features - 4-Port/8-Port RS-232/422/485 isolated
- 32bit 33MHz PCI bus backplane
- Speed up to 921600bps
- UART 16C550 Compatible 5G Register Set
- 2KV Surge protection
- Support 5V only power input
- Support Front Line out & Rear Line out
- PICMG 2.0 Rev. 3.0 compatible
Packing List No Ordering Information MIC-3955A1-S1E MIC-3955B1-S3E MIC-3955A2-S1E MIC-3955B2-S1E MIC-3527A2-S2E Diamensions No - Reviews
-
