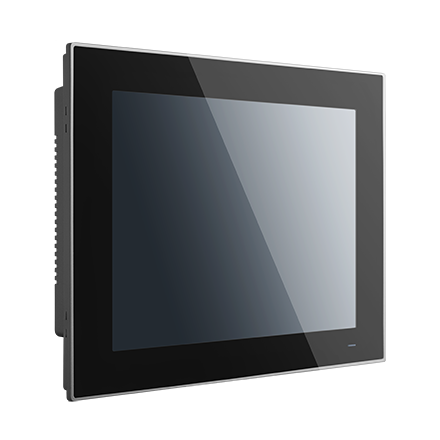

10.4" Celeron Fanless Panel PC

PPC-3100S-RAE

PPC-3100S-PBE

System

CPU

Intel® Celeron® N2930 quad core

Frequency

1.83 GHz

L2 Cache

2 MB

Memory

1 x SODIMM DDR3L 1333 MHz (max. 8 GB)

Storage

1 x 2.5" SATA Bay bay (optional; requires a bracket module for installation) 1 x mSATA Bay (default)

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel 211)

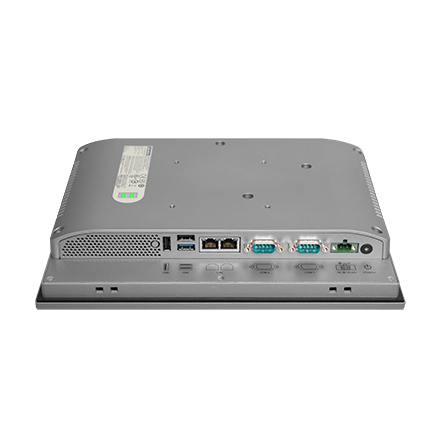

I/O

2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS) 2 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-RAE)
1 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-PBE)

Expansion

1 x Full-size mini PCIe slot

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

272 x 217 x 46 mm (10.7 x 8.5 x 1.8 in)

Weight

1.9 kg (4.18 lb)

OS Support

OS Support

Microsoft® Windows 7/8.1/10 (32/64-bit), WES7, WEC7, Linux, Android 4.4

Power Consumption

Input Voltage

12 ~ 24 VDC

Power Consumption

16W (Burn-in test 7.0 in Windows 7, 32-bit)

LCD

Display Type

10.4" TFT LCD (LED backlight)

10.4" TFT LCD (LED backlight)

Resolution

800 x 600

1024 x 768

Viewing Angle

80 (left), 80 (right), 70 (up), 70 (down)

88 (left), 88 (right), 88 (up), 88 (down)

Luminance (cd/m2)

400

350

Contrast Ratio

700

1200

Backlight Lifetime

30,000 hr (min.)

30,000 hr (min.)

Touchscreen

Touch Type

ELO 5-wire resistive

5-point multi-touch projected capacitive

Light Transmission

80±5% at 550nm wavelength

88±2%

Controller

RS232 interface

USB interface

Durability/Surface Hardness

Greater than 35million touches in one location without failure

Cover glass > 7H

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F) with SSD 0 ~ 40 °C (32 ~ 104 °F) with HDD

Storage Temperature

-40 ~ 60 °C (-40 ~ 140 °F)

Relative Humidity

10 ~ 95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 compliant
