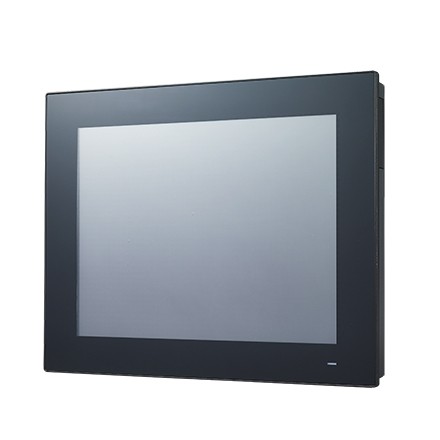

15" Core i3/i5/i7 Fanless Panel PC

Model

PPC-3151-650AE

Processor

CPU

Intel® CoreTM i5-6300U (dual core)

Frequency

2.4 GHz, turbo boost up to 3.0 GHz

Smart Cache

3 MB

Memory

1 x SODIMM, DDR4 1866/2133, max. 16 GB (1.2V)

Storage

1 x 2.5" SATA bay
1 x M.2 bay (size: 22 x 42 mm, socket 2 B key, for storage only)

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel® I211-AT; Intel® I219LM)

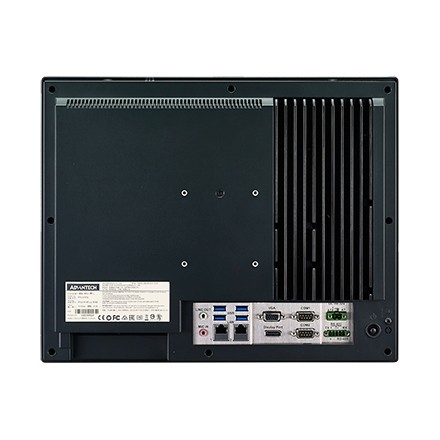

I/O

3 x Serial ports (2 x RS-232, 1 x RS-422/485 with 1K VDC isolation) 4 x USB 3.0 ports at rear
1 x Line-Out, 1 x Mic-In
1 x DB15 VGA

1 x DisplayPort (1.2)

Expansion

1 x Mini PCIe
1 x PCIe x 4 (Default); 1 x PCI (in the accessory box)
Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO

Watchdog Timer

255 timer levels, setup via software

Speaker

2 x 1W

Physical Characteristics

Dimensions

391.4 x 312.5 x 55.35 mm (15.41 x 12.3 x 2.18 in)

Weight

5.4 kg (11.90 lb)

OS Support

OS

Microsoft® Windows 7 (32/64-bit), Windows 8.1/10 (64-bit), Linux

Power Consumption

Input Voltage

9 ~ 32 VDC

Power Consumption

i5-6300U: 60W (Burn-in test 7.0 in Windows 7, 64 bit)

LCD Panel

Display Type

15" TFT LED panel

Max. Resolution

1024 x 768

Viewing Angle

80 ° (left), 80 ° (right), 70 ° (up), 70 ° (down)

Luminance (cd/m2)

400

Contrast Ratio

700

Backlight Lifetime

50,000 hr

Touchscreen

Touch Type

Projected capacitive 5-point multi-touch

Light Transmission

88% ± 5%

Controller

USB interface

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F) for SSD, 0 ~ 45 °C (32 ~ 113 °F) for HDD

Storage Temperature

-40 ~ 60 °C (-40 ~ 140 °F)

Relative Humidity

10 ~ 95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), IEC 60068-2-27 compliant

Vibration

Operating random vibration test 5 ~ 500Hz, 1 Grms with HDD; 2 Grms with SSD, IEC 60068-2-64 compliant

EMC

CE, FCC Class B, BSMI

Safety

CB, UL, CCC, BSMI
