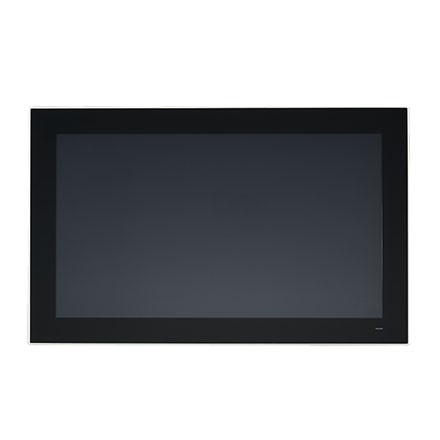

21.5" Core i3/i5/i7 Fanless Panel PC

System

CPU

6th gen Intel® CoreTM i5-6300U dual core (i7-6500U/i3-6100U optional)

Frequency

2.4 GHz; 3.0 GHz with turbo boost

L2 Cache

3 MB

Memory

1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)

Storage

1 x 2.5" SATA bay 1 x mSATA bay

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I219LM)

I/O

2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS) 2 x USB 3.0, 2 x USB 2.0
1 x HDMI

Speaker

2 x 1W

Expansion

1 x Full-size mini PCIe slot

Watchdog Timer

255 timer levels, set up by software

Physical Characteristics

Dimensions

558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)

Weight

6.8 kg (14.9 lb)

OS Support

OS Support

Microsoft® Windows 7/8.1/10 (32/64-bit), WES7, Linux

Power Consumption

Input Voltage

12 ~ 24 VDC

Power Consumption

75W

LCD

Display Type

21.5" TFT LCD (LED backlight)

Resolution

1920 x 1080

Viewing Angle

89 (left), 89 (right), 89 (up), 89 (down)

Luminance (cd/m2)

300

Contrast Ratio

5000

Backlight Lifetime

50,000 hr

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

90 % ± 3 %

Controller

USB interface

Environment

Operating Temperature

0 ~ 50 °C (32 ~ 122 °F) for SSD 0 ~ 45 °C (32 ~ 113 °F) for HDD

Storage Temperature

-20 ~ 60 °C (-4 ~ 140 °F)

Relative Humidity

10 ~ 95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC Class B, BSMI

Safety

CB, CCC, BSMI, UL

Front Panel Protection

IP65 compliant
