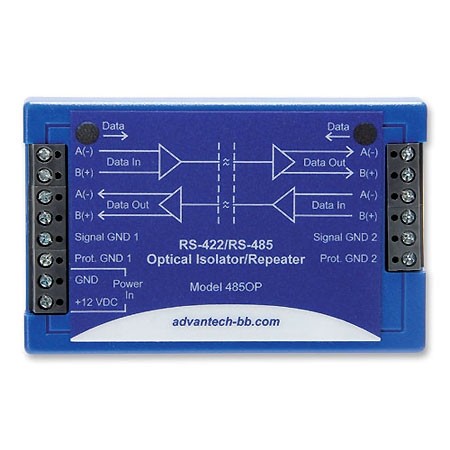

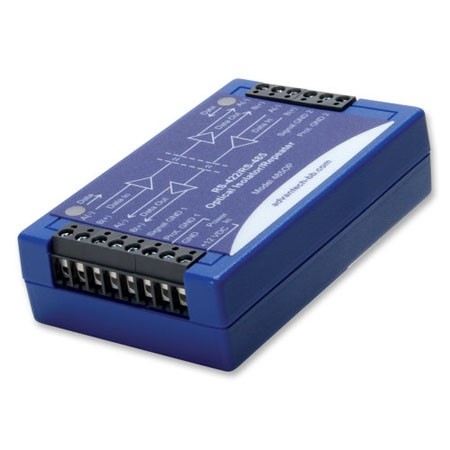

Model 485OP is an optically isolated RS-422/485 signal repeater. In addition to 2KV isolation on the data lines, it can be used to extend RS-422/485 circuits an additional 1.2 km (4,000 ft.), thereby doubling the range. An added benefit is the ability to add another 32 nodes to an RS-485 network and join 2 and 4 wire systems. The compact design fits almost anywhere. Terminal blocks allow easy installation. Wiring schematic on the label eliminates guesswork. A 12 VDC power supply is required, and included, with blades for USA, EU, UK, AU, UP & CN. - Additional Information
-
Additional Information
Features Device and data 2 kV optical isolation and 1.2 km (4000 ft) extension • Add up to 32 nodes to RS-485 network • Inline installation • External 12VDC power source required (included) • Modbus support • CE, FCC, UL Recognized Packing List BB-SMI6-12V-ST - Level VI Power Supply - 12VDC, 500mA, stripped & tinned leads, international blade kit. One (1) included with repeater. Ordering Information BB-485OP Diamensions 9.7 x 6.1 x 2.5 cm (3.8 x 2.4 x 1.0 in) - Reviews
-
