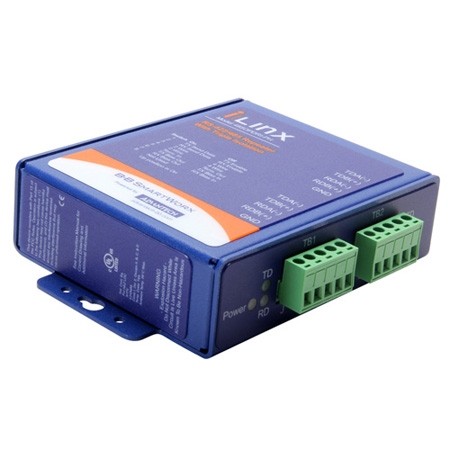

Model BB-485OPDRI-PH is a premium, heavy industrial RS-422/485 isolated repeater. Designed for rugged industrial environments, it meets some of the most exacting compliance tests in the industry. IEC 61850-3 and IEEE 1613 rated, it is suitable for installation in electrical substations. (These specifications are more stringent than NEMA TS1/TS2 requirements for transportation applications). Powerful isolation on both data ports protects your equipment and data from damaging ground loops and surges. Additional isolation on the power supply circuits adds a third degree of protection. Packaged in a rugged IP30 metal case, it extends full or half-duplex RS-422/485 signals an additional 4000 feet and allows you to add another 32 nodes to your network. Bit-wise enabled circuitry automatically detects the data rate without setting a DIP switch. 10-48 VDC power is externally sourced (power supply required, not included, sold separately).
- Additional Information
-
Additional Information
Features Extends RS-422/485 an extra 1.2km (4000 ft) • Add 32 more network nodes • 2kV, 3-way isolation (input/output/power) • Data rates:1.2 to 115.2 Kbps • Wide operating temperature range: -40 to +85 °C • FCC, CE, RoHS, IEC-61850-3, IEEE-1613 • 10 to 48 VDC input power (power supply required, sold separately)
Packing List BB-MDR-40-24 - Power Supply 24VDC, 1.7 A output power, DIN rail mount BB-DRAD35 - DIN Rail Mounting Kit, 35mm BB-TBKT1 - Replacement Terminal Block - 2-position, 5.08mm, 8A, 30 BB-TBKT2 - Replacement Terminal Block - 5-position, 5.08mm, 8A, 30 Ordering Information BB-485OPDRI-PH Diamensions 13.24 x 9.29 x 3.30 cm (5.2 x 3.7 x 1.3 in) - Reviews
-
