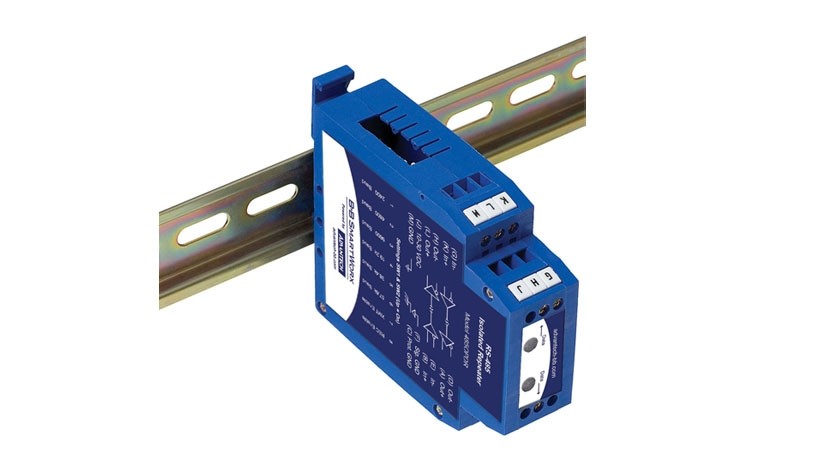

Serial Repeater, RS-422/485 TB, Isolated, Ind. DIN

Serial Repeater, RS-422/485 TB, Isolated, Ind. DIN

More Views

Serial Repeater, RS-422/485 TB, Isolated, Ind. DIN
Part Nubber: BB-485OPDR
₹18,900.00
RS-422/485 Repeator
2 KV Isolation
cULus Recognized
-40 to +80 °C wide operating temperature
DIN Rail Mounting
10-30Vdc power supply required (not included, sold separately)
OR
Description

Details

Model BB-485OPDR, RS-422/485 line repeater, provides isolation and surge suppression. The repeater extends an existing network an additional 1.2 km and expands it beyond the 32 node limitation. Data signals and power inputs connect via terminal block. Automatic Send Data Control (no SW drivers).
Additional Information

Additional Information

Features

Extends RS-422/485 data additional 1.2 km ƒ 2000V optical isolation for data lines; 600W surge suppression ƒ -40 to +80 °C wide operating temperature ƒ DIN rail mount (panel mount with optional adapter) ƒ Automatic Send Data control - no software drivers needed ƒ cULus Recognized, UL Recognized, CE, FCC ƒ 10-30 V power supply required (not included, sold separately
Packing List BB-MDR-20-24 Power supply, 24VDC, 1.0 A output, DIN rail mount ƒ BB-MDR-40-24 Power supply, 24VDC, 1.7 A output, DIN rail mount ƒ BB-EK-CLIP-MPC DIN rail clip for enclosure
Ordering Information BB-485OPDR
Diamensions No
Reviews
Data Sheet
PDF
